Finding wheels that fit your vehicle
Sale
![]()

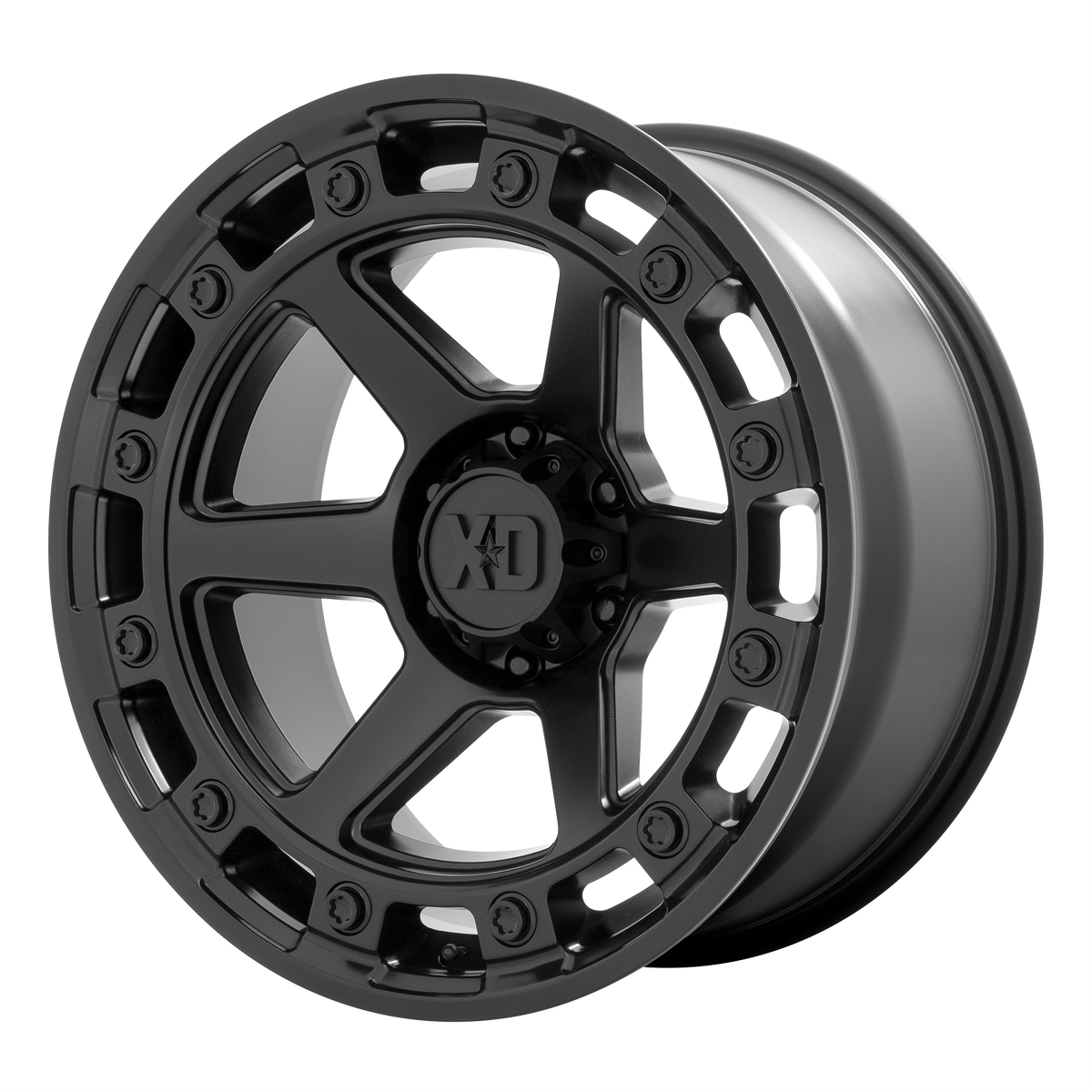

XD862 RAID — Black
Fits your vehicle
· Bolt —
· BP2 —
· Hub —
Change Vehicle
Year · Make · ModelAdd your vehicle to confirm fitment
Select vehicle
FREESHIPPING
FITMENTGUARANTEED
PRO INSTALLAVAILABLE
Bolt Pattern
Also available in other bolt patterns — pick yours
Front
2
Rear
2
Set total—
Your Size
—
Offset —
BP1 —
BP2 —
Dual-drilled
Hub —
Finish —
MPN —
Currently out of stock
Choose another size, offset, or finish — or call (678) 400-6467.
Per wheel
—
—
Set of 4
—
—
You save per wheel
Call for Quote
This wheel is built to your exact spec — call (678) 400-6467 for an itemized quote. Pricing depends on the size, finish, and build options you choose.
Pay over time
*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender.
Acima
Lease-to-own — no credit needed
You can apply now, or pick this option at checkout — your choice.
Final approval and terms are determined by the lender.
Nearby
0
Arrives in 1–2 Days
0
Arrives in 3–5 Days
0
Quantity
4
Special Order — Built to Order
This wheel is forged to order at the factory. Typical build & ship time is 6–8 weeks. You can check out now to lock in your build slot and pricing — we'll confirm the ETA after your order and keep you updated.
Notify me when available
Drop your email and we'll let you know the moment this XD XD862 RAID — Black is back in stock. Or call 678-400-6467 — we can sometimes source faster.
Directional wheel — set of 4 needs 2 Left + 2 Right.
Checking package availability…
Final package timing will be confirmed.
Call to check availability
Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.
About This Wheel
Pick one of these up and the first thing you notice is the weight distribution — cast construction done right, not sloppy. The Raid runs a multi-spoke face with deep negative offset geometry that pulls the wheel face out almost flush with the lip, so the profile reads bold from any angle. In Black, the milled or satin detailing on the spokes catches indirect light and creates contrast without needing a polished lip to do the heavy lifting. It pairs cleanly with white, silver, and graphite truck bodies, and it holds its own against blacked-out or two-tone builds. This is a workhorse aesthetic — the kind of wheel that fits a lifted F-150 or Expedition without looking like it was styled exclusively for a show truck.
Specifications
| Diameter x Width | 20" x 10" |
|---|---|
| Bolt Pattern | 6x135 |
| Offset | ET-18mm |
| Backspacing | 4.79" |
| Hub Bore | 87.10mm |
| Load Rating | 2500 lbs |
| Construction | Cast |
| Material | Aluminum alloy |
| Finish | BLACK |
| Manufacturer Part Number | XD86221063718N |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 6x135 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the BLACK Finish
KMC Wheels launched the XD Series to target the truck and off-road segment specifically, and the line has built a solid following because the specs are consistent and the fitment data is reliable. The XD862 Raid sits in the middle of the lineup — not their entry-level offering, not their flagship — which generally means you're getting proven tooling and quality control without paying for branding premium.
About XD
XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
This wheel is drilled 6x135, which is the bolt pattern used on Ford F-150, Expedition, and Lincoln Navigator applications from 2004 onward. The -18mm offset and 10-inch width work well on leveled or lifted trucks, but you'll want to confirm your specific year and any aftermarket suspension before assuming clearance — backspacing varies more than people expect between trim levels.
Do lug nuts come included?
Lug nuts are not included with the wheel. Most trucks running 6x135 use a 14x1.5 thread pitch, but confirm your factory spec before ordering — some model years differ. Conical seat (acorn-style) lug nuts are the correct seat type for this wheel.
Fitment specs: the XD XD862 RAID comes in 6x135 bolt pattern, ET-18 offset, 4.79" backspacing, 87.10mm hub bore, a 2500 lbs load rating.
Looking for wheels, rims & tires near you in the Atlanta metro? We mount + balance same day at our Marietta tire shop — 1585 Roswell Rd. Serving Marietta, Atlanta, Cobb County, Kennesaw, Smyrna, Sandy Springs, Roswell, Alpharetta, Buckhead + Vinings.
