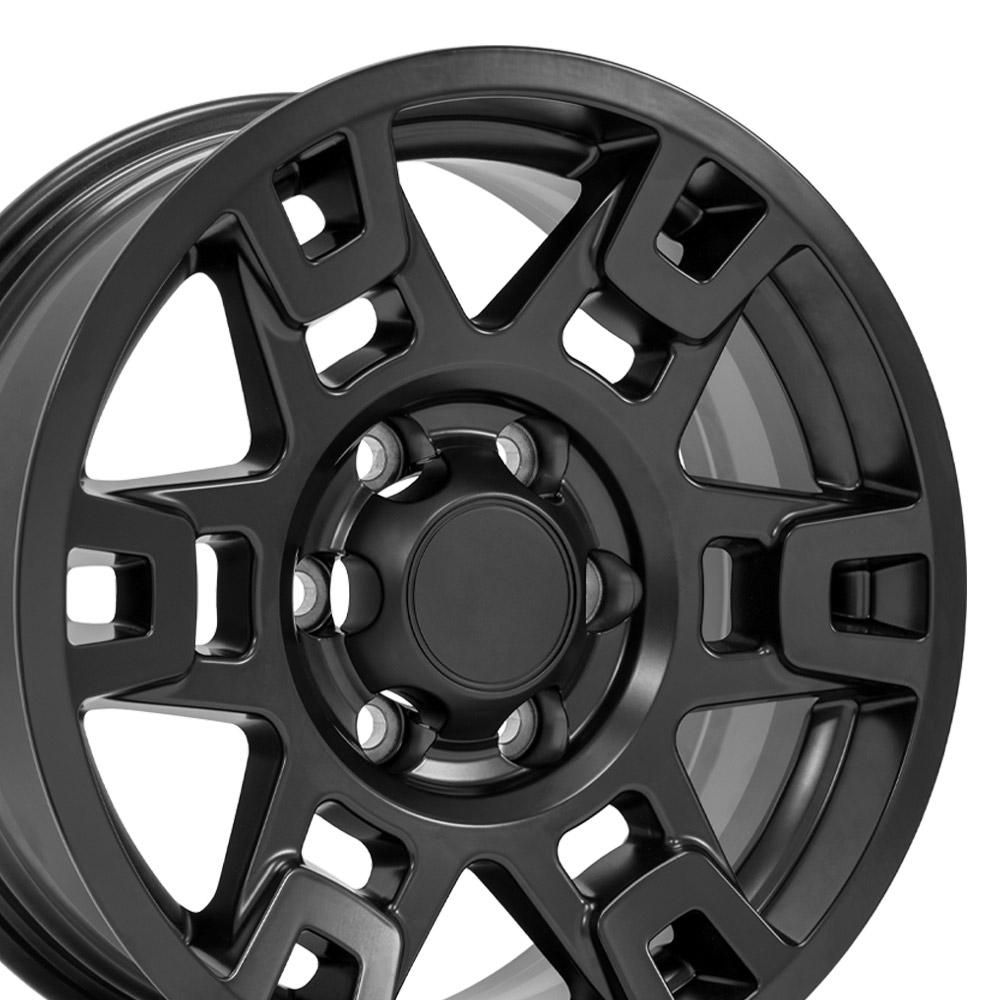

TY16B — Satin Graphite

Fitment

This wheel runs the 6x139.7 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+4mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the Satin Graphite Finish

OE Wheels produces cast aluminum wheels aimed at the value-conscious truck and SUV market. Their TY-series fitments are designed to replicate factory proportions without factory prices, and the quality control is consistent enough that we stock them with confidence. They won't carry the cachet of a forged brand, but for a daily driver or a truck that sees real use, they're a sensible, well-made choice.

About OE Wheels

OE Wheels produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Questions We Get

Will this fit my truck?

The TY16B is built on a 6x139.7 bolt pattern with a 4mm offset and a 17x7 size — common across Toyota and GM full-size platforms, among others. That said, fitment depends on your specific year, make, model, and trim, so confirm your hub bore and clearance requirements before ordering. Our fitment team can cross-check your vehicle if you have any doubt.

Do lug nuts come included?

No, lug nuts are not included with the wheel. You'll need to match the seat type — most Toyota applications use a conical seat, while GM trucks often use a ball seat. Using the wrong seat style can damage the wheel face or cause unsafe torque retention, so it's worth getting that detail right.

Fitment specs: the OE Wheels TY16B comes in 6x139.7 bolt pattern, ET+4 offset, 4.16" backspacing, 106.10mm hub bore, a 2000 lbs load rating.
