MO801 PHANTOM — Gloss Black W/ Gray Tint
Fits your vehicle
· Bolt —
· BP2 —
· Hub —
Change Vehicle
Year · Make · ModelAdd your vehicle to confirm fitment
Select vehicle
READY TO SHIP · ALREADY BUILT — NO WAIT
Set = 2 left + 2 right
Sold as a left + right set (2 left + 2 right).
Sold as a left + right set (2 left + 2 right).
FREESHIPPING
FITMENTGUARANTEED
PRO INSTALLAVAILABLE
Bolt Pattern
Also available in other bolt patterns — pick yours
Front
2
Rear
2
Set total—
Your Size
—
Offset —
BP1 —
BP2 —
Dual-drilled
Hub —
Finish —
MPN —
Currently out of stock
Choose another size, offset, or finish — or call (678) 400-6467.
Per wheel
—
—
Set of 4
—
—
You save per wheel
Call for Quote
This wheel is built to your exact spec — call (678) 400-6467 for an itemized quote. Pricing depends on the size, finish, and build options you choose.
Pay over time
*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender. See all rim financing options →
Acima
Lease-to-own — no credit needed
You can apply now, or pick this option at checkout — your choice.
Final approval and terms are determined by the lender.
Nearby
0
Arrives in 1–2 Days
0
Arrives in 3–5 Days
0
Quantity
4
Special Order — Built to Order
This wheel is forged to order at the factory. Typical build & ship time is 6–8 weeks. You can check out now to lock in your build slot and pricing — we'll confirm the ETA after your order and keep you updated.
Notify me when available
Drop your email and we'll let you know the moment this Moto Metal MO801 PHANTOM — Gloss Black W/ Gray Tint is back in stock. Or call 678-400-6467 — we can sometimes source faster.
Directional wheel — set of 4 needs 2 Left + 2 Right.
Checking package availability…
Final package timing will be confirmed.
Call to check availability
Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.
About This Wheel

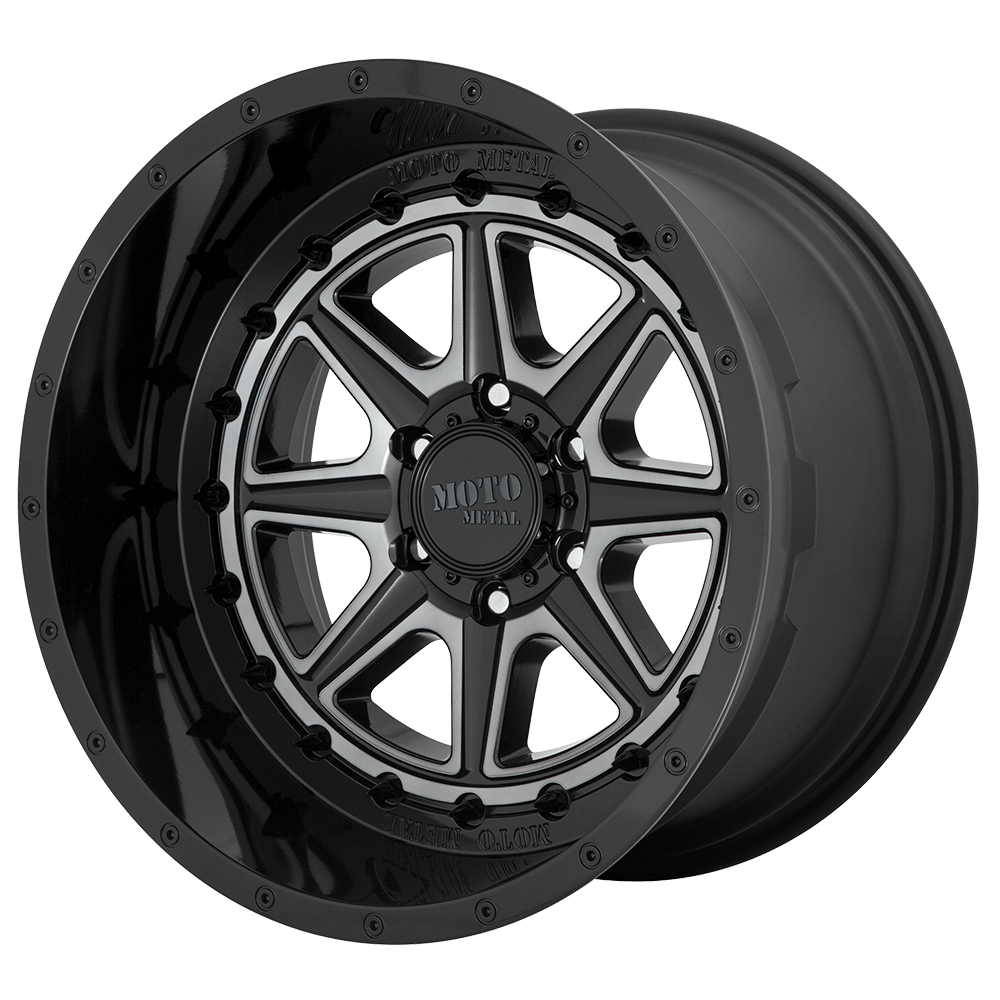

Pick one up and the first thing you notice is how deep the face cuts back — the Phantom runs a multi-spoke design with sharp, angular transitions that create real shadow depth rather than relying on chrome or machining to do the work. The Gloss Black w/ Gray Tint finish sits in the recesses and reads almost charcoal in direct sun, then shifts toward a cooler, slate tone in overcast light. That two-tone effect within a single finish is what separates it from a flat black wheel. It pairs cleanly with white, silver, magnetic gray, and dark blue truck bodies. Lifted F-150s, Expeditions, and Navigators are the natural home for this wheel — anything with a wide fender gap that rewards an aggressive poke.
Specifications
| Diameter x Width | 20" x 10" |
|---|---|
| Bolt Pattern | 6x135 |
| Offset | ET-18mm |
| Backspacing | 4.79" |
| Hub Bore | 87.10mm |
| Load Rating | 2500 lbs |
| Construction | Cast |
| Material | Aluminum alloy |
| Finish | GLOSS BLACK W/ GRAY TINT |
| Manufacturer Part Number | MO80121063418N |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 6x135 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the GLOSS BLACK W/ GRAY TINT Finish
Moto Metal has been building truck and off-road wheels since 2003, and they've stayed consistent in one area: prioritizing fitment accuracy and finish durability over chasing trends. Their cast wheels go through a multi-stage quality check before leaving the facility. They're not the most boutique name in the segment, but they're a reliable, proven choice for daily-driven trucks that see real use.
About Moto Metal
Moto Metal produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
This wheel is drilled in a 6x135 bolt pattern, which is standard on Ford F-150s from 2004 and up, including the Raptor. The -18mm offset and 10-inch width typically require a leveling kit or a 2-inch-plus lift to clear the fender on most F-150 trims — always verify your specific cab and bed configuration before ordering.
Do lug nuts come included?
No, lug nuts are sold separately. Because this wheel has a specific seat type, you'll want to confirm whether your application calls for a conical or mag seat lug before purchasing. Our team can confirm the correct spec for your truck so you're not guessing at the counter.
Fitment specs: the Moto Metal MO801 PHANTOM 20x10 BLACK 6x135 -18mm comes in 6x135 bolt pattern, ET-18 offset, 4.79" backspacing, 87.10mm hub bore, a 2500 lbs load rating.
