2009+ Ram 1500 Air Spring Kit

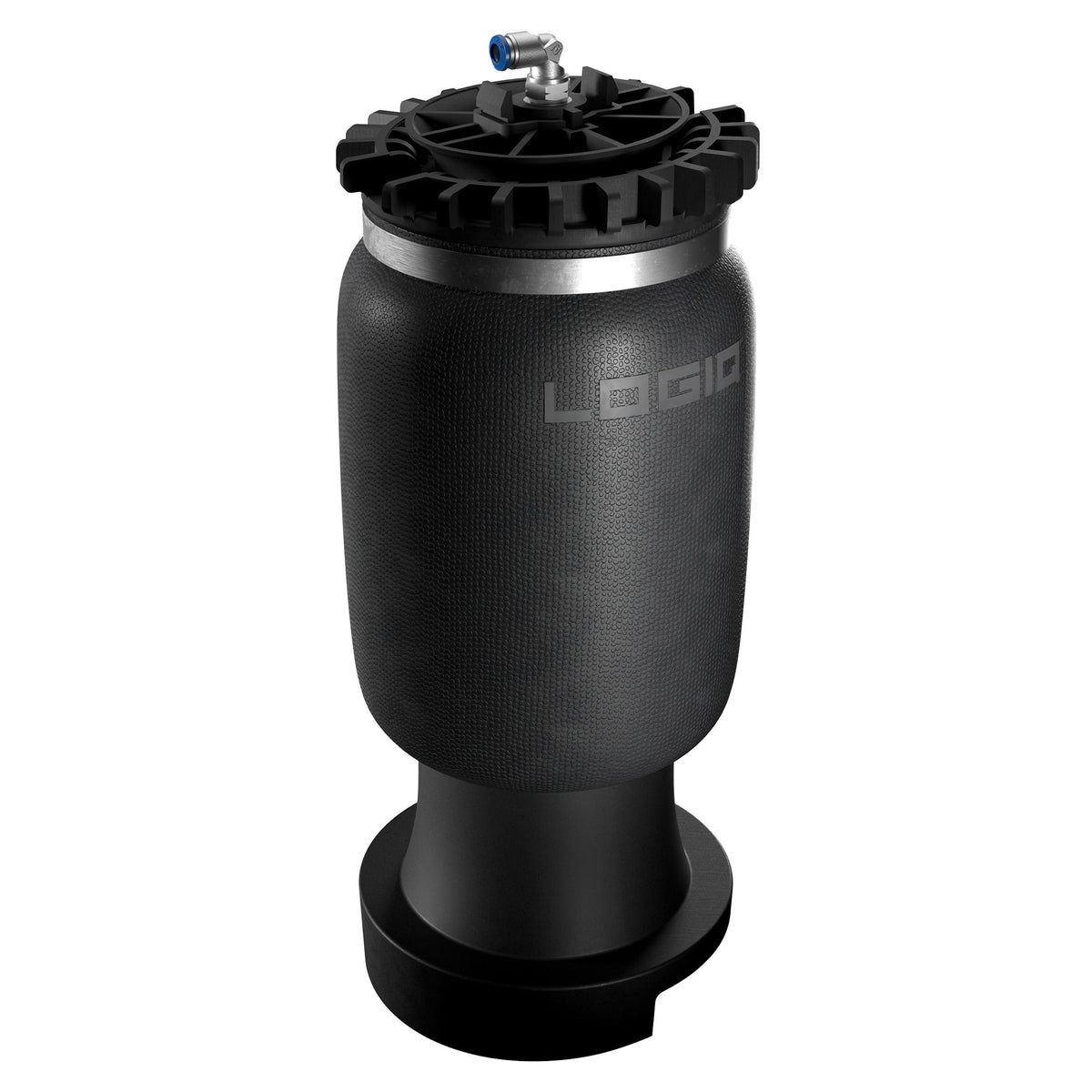

2009+ Ram 1500 Air Spring Kit (LOGIQ part # 89-11090) is an application-specific coil replacement air suspension kit engineered for the 2009+ Ram 1500. It adds on-demand air support to level your truck under load, improve stability while towing and hauling, and smooth out the ride when you're running empty.

Key specs

• Type: Coil Replacement (2-spring)
• Lifting force: 6,000 lb @ 150 psi (payload 3,800 lb)
• Pressure range: 20–150 psi

What's included

• Driver & passenger air spring assemblies
• Manual Inflation kit — air line + Schrader valves
• Application-specific mounting hardware

Fitment notes

• Not compatible with TRX
• Not compatible with RHO
• Coil replacement (no leaf springs).
• Factory to +3" out of the box. For +3" to +6", add spacer kit 89-11090-3.
• eTorque / factory air-ride 1500 compatibility UNSTATED on LOGIQ page — treat as fitment-review.

Manual Inflation or Complete AirIQ

Run it as a simple Manual Inflation setup (adjust pressure through the Schrader valves), or upgrade to Complete AirIQ — the AirIQ HD2 on-board compressor, 2-gallon aluminum boost tank, and wireless remote with app control for independent two-channel adjustment.

Build your Ram 1500 package → — professional installation available, or shipped to your door.

Air springs do not increase the vehicle manufacturer's maximum payload or GVWR.
