Fitment

This wheel runs the 5x114.3 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+56mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the BLACK Finish

American Racing has been producing wheels since 1956, and the AR941 Mach Five carries that lineage into flow-formed construction — a process where a cast blank is spun and compressed under heat to refine the grain structure of the aluminum, improving strength-to-weight ratio over a standard cast wheel. The brand is well-distributed, which matters when you need documentation for a tire shop or insurance claim down the road.

About American Racing

American Racing produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is 20x11.50 with a 56mm offset and a 5x114.3 bolt pattern — that offset is relatively high, meaning the mounting face sits further inboard, which affects how much the wheel tucks versus pokes. Before ordering, confirm your hub bore, verify your suspension and fender clearance for an 11.50-inch width, and cross-reference the offset against your specific year, make, and model using a fitment guide or by calling us directly.

Do lug nuts come included?

Lug nuts are not included with the wheel. You'll need to match thread pitch and seat type — most applications running 5x114.3 use a conical or ball seat lug depending on the hub, so double-check your factory spec before purchasing hardware. We carry a range of compatible lug nuts and can point you toward the right option for your vehicle.

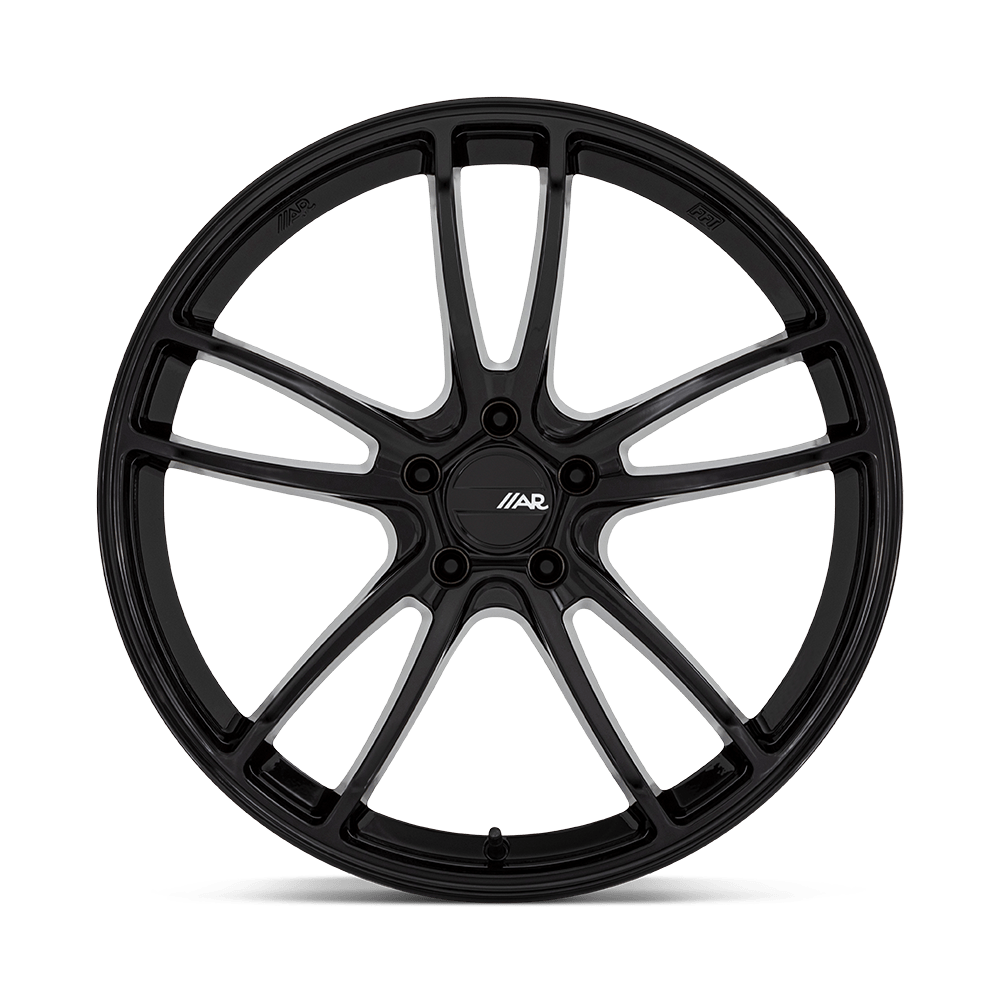

Fitment specs: the American Racing AR941 MACH FIVE comes in 5x114.3 bolt pattern, ET+56 offset, 8.45" backspacing, 70.50mm hub bore, a 1280 lbs load rating.
