6 Inch Lift Kit | Radius Arm | No Ovld | C/o Vertex | Ford F-250/f-350 Super Duty (17-22)

Built for Ford Super Duty owners who want maximum clearance without sacrificing ride quality — this 6-inch radius arm coilover conversion lift gives you the geometry-corrected height and tire capacity you demand. Run up to 37-inch tires while preserving the smooth, factory feel with precision-fitted radius arms and Vertex 2.5-inch monotube coilovers that deliver 56% greater fluid capacity than average reservoir shocks.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

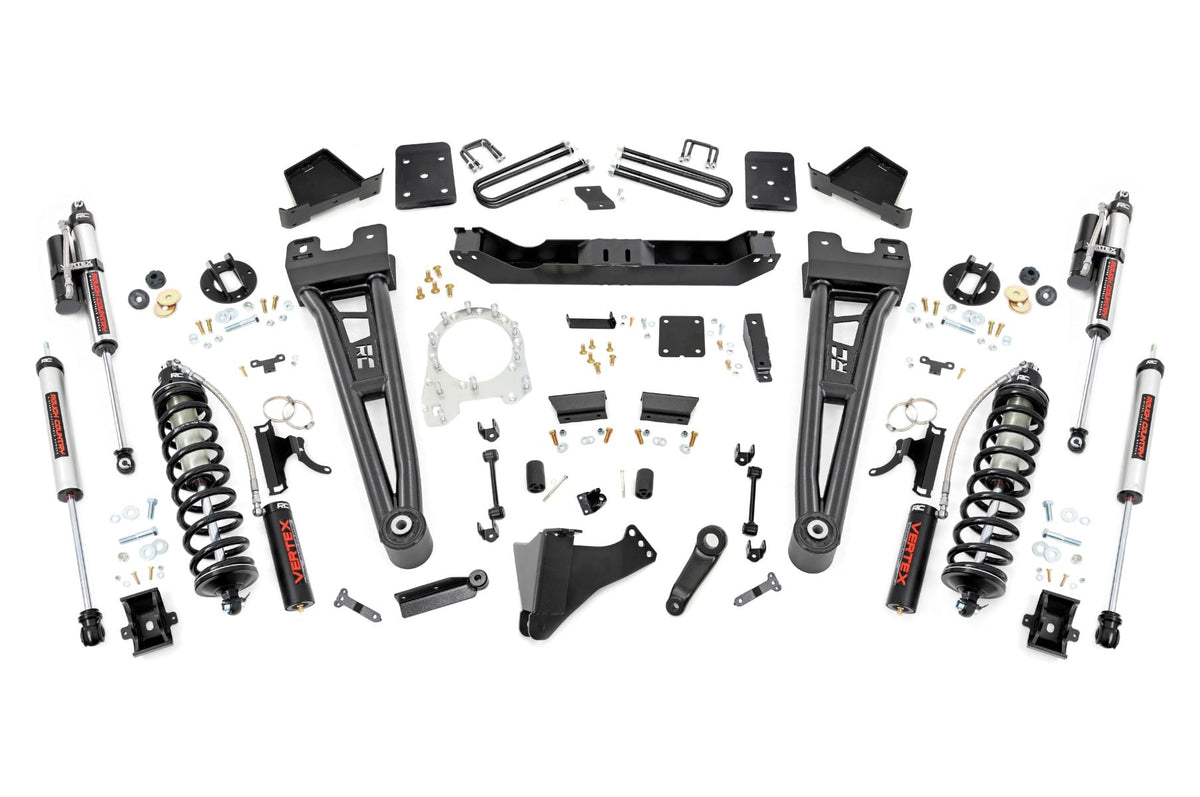

What's included

• 6" Kit Box | Coilover Conversion — top-mounted reservoir brackets and coil-over mounts fabricated from 1/4-inch steel to replace the factory independent coil shock setup.
• Vertex 2.5 Adjustable Front Coilovers (Left & Right, 4.5"–6") — nitrogen-charged, 8-stage adjustable monotube design with external reservoir for increased oil capacity and damping sensitivity.
• Vertex 2.5 Rear Coilovers (pair, 6") — matched monotube shocks for optimal damping control and consistent ride geometry.
• Radius Arm Kit Box & Upgrade Boxes — precision-fit, ultra-durable radius arms at 27 lbs each, bolting into factory mounts with durable rubber bushings for maximum vibration absorption and factory-like suspension angles.
• 4.5 In Block U-Bolt Kit | No Overloads — specially designed anti-axle wrap rear blocks that maintain stock ride quality while eliminating common lift block problems.
• Transfer Case Clocking Kit — ensures proper transfer case alignment after the lift install.
• Universal U-Bolt Kit — additional fastening hardware for secure installation.

Important notes

• Does NOT fit gas engine models.
• Does NOT fit manual shift transfer cases.
• Does NOT fit dually models.
• Does NOT fit models equipped with the Tremor Factory Trim Package.
• Models equipped with a 10-speed transmission must have the dial pin removed during installation.
• Installation requires cutting and drilling; plan 6–10 hours for complete setup.
• Fabricated lift blocks replace factory-equipped blocks and are stronger with longer lifespan than cast alternatives.

Why customers pick this at Road Runner

• Geometry-corrected radius arms preserve factory suspension angles, delivering ride quality that rivals OEM setups — not typical for a 6-inch lift.
• Vertex 2.5-inch monotube coilovers with 8-stage adjustability and 56% greater fluid capacity than standard reservoir shocks, giving you tuning control and durability.
• Rough Country's Limited Lifetime Replacement Warranty backed by local installation — structural and workmanship defects covered from date of purchase.
• Professional alignment performed in-house after every lift install, ensuring your truck tracks true and tire wear stays even.
• Installed by technicians who perform these conversions weekly — experienced, efficient, and done right the first time.

Ready to build it? Call (678) 400-6467. Hablamos Español.
