6 Inch Lift Kit | M1 Struts/m1 | Toyota Tundra 4wd (2007-2015)
$1,809.95
Price does not include installation.
Pay over time
Acima
$67/wk*Apply
As little as $10 down
Snap Finance
/wk*Apply
No credit needed
Synchrony
Pay Later
Choose at checkout
$1,809.95
*Estimated lease-to-own payment. Final approval and terms are determined by the lender. See all financing options →
Snap lease details
🛠️ Install available in Marietta, GA
Installed and serviced at Road Runner Wheels & Tires — 1585 Roswell Rd, Marietta, GA 30062. Call (678) 400-6467 to schedule.
Loading stock…
Built for Tundra 4WD owners who demand aggressive lift without compromise, this 6-inch suspension lift kit levels your front end with the rear and opens up 35–37 inch tire clearance. Rough Country's precision-engineered struts, knuckles, and crossmembers preserve factory geometry while delivering the ground clearance and stance you're after.
Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

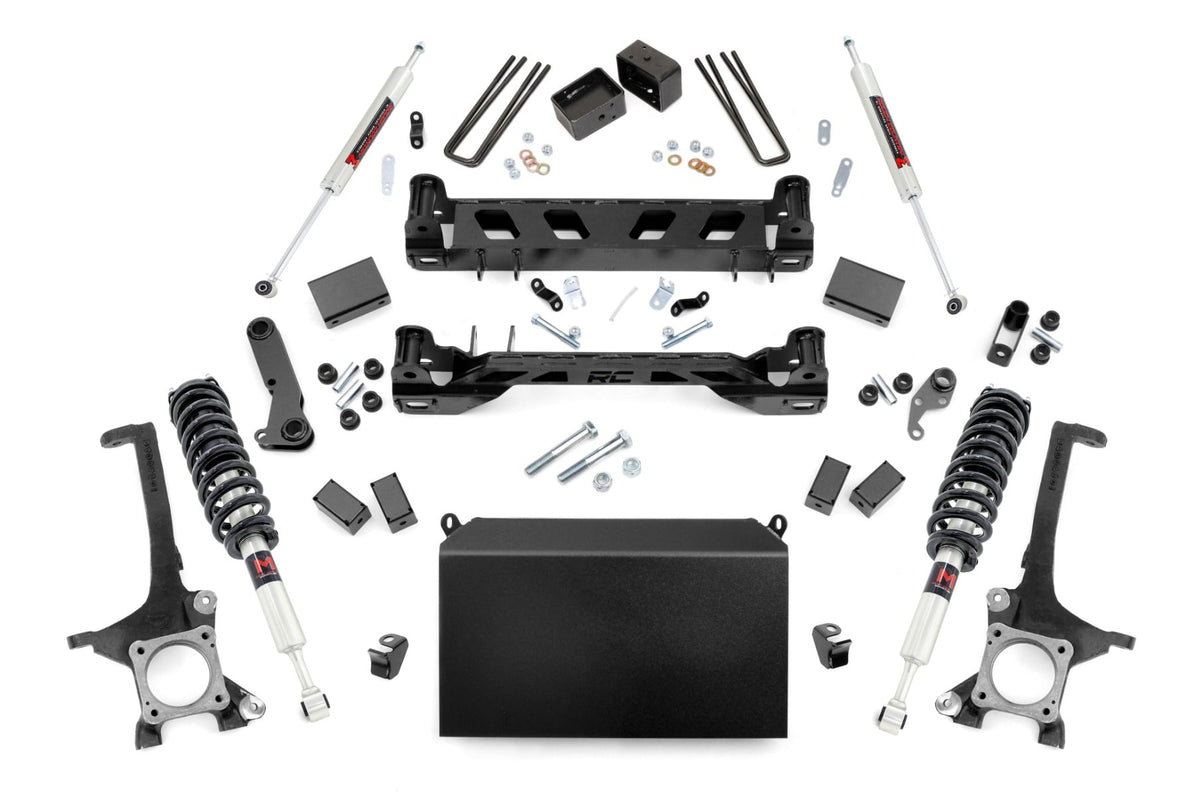

What's included
- M1 Loaded Strut Pair — Monotube struts pre-lifted 6 inches, engineered for lifted applications and tuned to maintain a smooth, factory-like ride without spacers.
- M1 Monotube Shock Pair — Rear monotube shocks built for high-performance off-road duty.
- Knuckle Kit — Lifted steering knuckles that work with factory 18-inch or larger wheels and preserve proper suspension geometry.
- 6-Inch Kit Box — Front lift components including strut spacers, steering stops, and brake-line brackets.
- Crossmember Box — High-clearance front and rear crossmembers, fabricated blocks, differential drop brackets, and sway-bar drop hardware — everything needed to maintain optimum angles after lifting.
Important notes
- Does not fit Pro Series, Rock Warrior, or XSP-X models.
- Requires 18-inch or larger wheels. Stock 18-inch wheels can be used but accommodate tires no wider than 11.5 inches; 35-inch tires may require minor trimming for clearance.
- Minor cutting and drilling required during installation.
- Vehicles equipped with a two-piece driveshaft may experience take-off vibration; this can be corrected with the optional carrier bearing shim kit (SKU 1776BOX1).
- No modification to stock differential mounts, drivetrain, or exhaust needed.
Why customers pick this at Road Runner
- Precision laser-cut components and CAD-designed crossmembers deliver unmatched ground clearance and clean lines.
- Fabricated blocks are stronger and last longer than cast alternatives.
- Lifetime Rough Country warranty backed locally — installed and serviced right here.
- Professional installation by technicians who perform these lifts every week; alignment performed in-house as part of every kit install.
- Factory-like ride quality maintained through engineered struts — aggressive stance without the harsh bump.
Ready to build it? Call (678) 400-6467. Hablamos Español.
| Qty | Part | Part # |
|---|---|---|
| 1 | Knuckle Kit | Toyota Tundra (07-15) | 1775BOX2 |
| 1 | M1 Loaded Strut Pair | Monotube | 6in | Toyota Tundra 4WD (2007-2021) | 502017 |
| 1 | 6in Kit Box | Toyota Tundra (07-21) | 752BOX1 |
| 1 | Crossmember Box | Toyota Tundra (07-21) | 752BOX3 |
| 1 | M1 MONOTUBE SHOCK PAIR | 770797P |
Features
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Lifted front struts help maintain smooth, factory-like ride
- Front struts are structurally engineered for lifted applications
- Front struts are lifted 6-inches, eliminating the need for strut spacers
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
| Years | Make | Model | Drive |
|---|---|---|---|
| 2007-2013 | Toyota | Tundra Base | 4WD |
| 2007-2015 | Toyota | Tundra Limited | 4WD |
| 2007-2015 | Toyota | Tundra SR5 | 4WD |
| 2010-2015 | Toyota | Tundra Platinum | 4WD |
| 2014-2015 | Toyota | Tundra SR | 4WD |
| 2015 | Toyota | Tundra 1794 Edition | 4WD |
- Tire size: 35″ to 37″ tall
- Lift height: 6″
Does NOT fit Pro Series models Does NOT fit Rock Warrior models Does NOT fit XSP-X models. Minor cutting and drilling is required. Requires 18-inch or larger wheels. Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch. In some cases minor trimming may be needed to clear 35-inch tires. On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit. Please view instructions for complete information on proper tire / wheel combinations.
Rough Country Lifetime Replacement Warranty covers all structural components against defects in materials and workmanship for the original purchaser's lifetime ownership of the vehicle.
3-Year Finish Warranty on all painted and powder-coated surfaces.
3-Year Shock Warranty on N3, M1, and Vertex shocks against leakage and structural failure.
Warranty service is handled by Rough Country directly — call (678) 400-6467 if you need help opening a warranty claim and we'll walk you through it.
