6 Inch Lift Kit | 4-link | Ovld | C/o V2 | Ford F-250/f-350 Super Duty (17-22)

Built for Ford Super Duty owners who demand a properly-leveled stance and ride-height adjustability, this 6-inch 4-Link Coilover Conversion Lift Kit replaces your factory independent coil-shock setup with a rigid 4-Link geometry and adjustable Vertex Coilovers. The result is increased ground clearance, factory-correct caster geometry maintained through radius arm drop brackets, and superior damping control via 2.5-inch monotube shocks with 56% greater fluid capacity than standard reservoir shocks. Supports tire fitment up to 37 inches.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

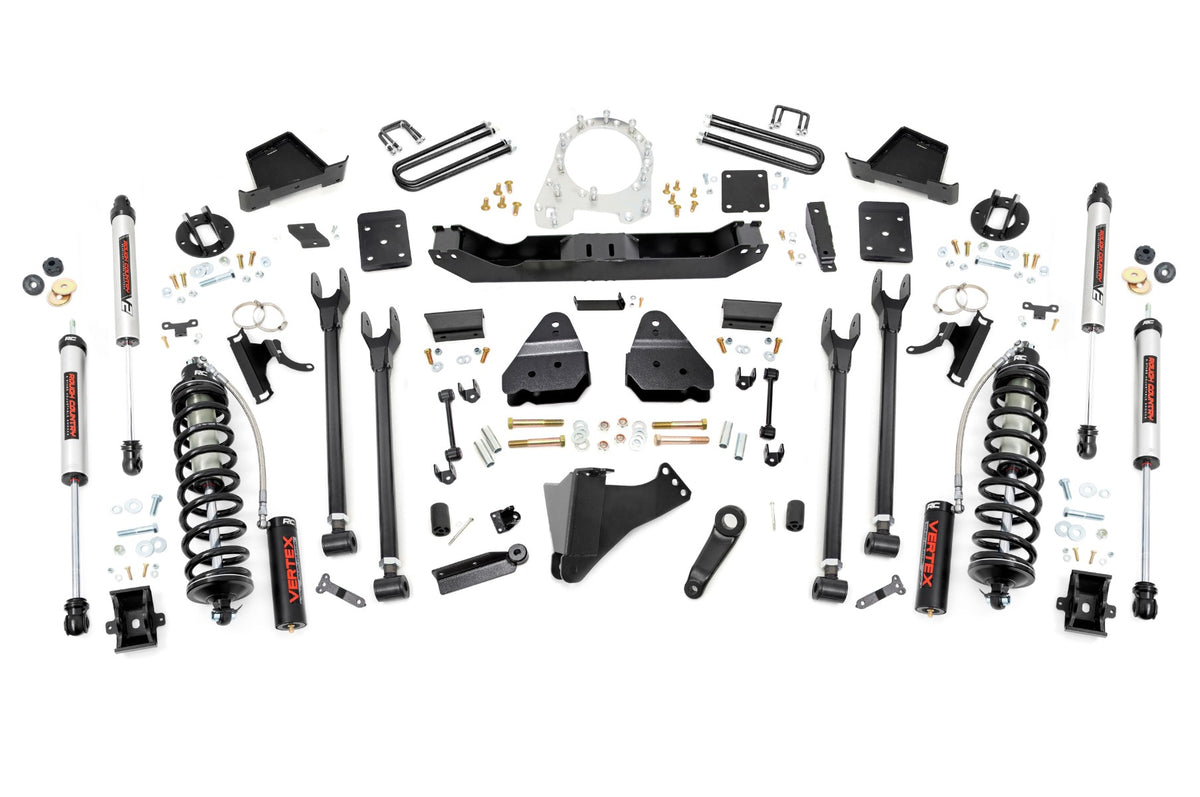

What's included

• 6.5 In Block U-Bolt Kit — overload blocks that support the rear suspension under lifted height.
• Box Kit — fabricated mounting base designed from 1/4-inch steel for durability and long lifespan.
• 4.5–6in Upper Arm Kit — fixed upper control arms that establish rigid 4-Link geometry.
• 4.5–6in Lower Arms — adjustable lower control arms for geometry tuning.
• 6" Coilover Conversion Box — mounts and brackets for the coil-over conversion, constructed from 1/4-inch steel.
• Transfer Case Clocking Kit — re-indexes the transfer case to maintain driveline angles after lift.
• Vertex 2.5 Adjustable Front Coilovers (pair) — nitrogen-charged, 8-stage adjustable monotube shocks with external reservoir and 2.5-inch pistons for superior damping and ride quality.
• Radius Arm Drop Brackets — maintain proper caster geometry and allow precise caster setting to preserve factory handling and driveability.

Important notes

• 10-speed transmission models require dial pin removal during installation.
• Gasoline-engine models are not compatible — diesel only.
• Manual shift transfer cases are not supported.
• Does not fit dually configurations.
• Does not fit models equipped with the Tremor Factory Trim Package.
• Requires cutting and drilling; professional installation is recommended.

Why customers pick this at Road Runner

• Caster-corrected geometry maintained through radius arm drop brackets — preserves factory handling after lift.
• Vertex 2.5-inch monotube coilovers with 56% greater fluid capacity deliver smooth, adjustable damping on- and off-road.
• Rough Country lifetime warranty backed locally and honored at Road Runner.
• Professionally installed by technicians who perform these conversions every week — cutting, drilling, and geometry tuning done right.
• Alignment performed in-house as part of every lift install.
• Transfer-case re-indexing included — driveline geometry preserved, no vibration or premature wear.

Ready to build it? Call (678) 400-6467. Hablamos Español.
