5 Inch Lift Kit | Torsion Drop | Vertex | Chevy/gmc 2500hd/3500hd (11-19)

Built for Chevy and GMC 2500HD/3500HD owners who want aggressive ground clearance without sacrificing ride quality, this 5-inch lift kit uses a Torsion Drop design to preserve factory geometry, handling, and that smooth highway feel. You'll fit 33–35 inch tires while keeping your truck's original track width and axle angles intact.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

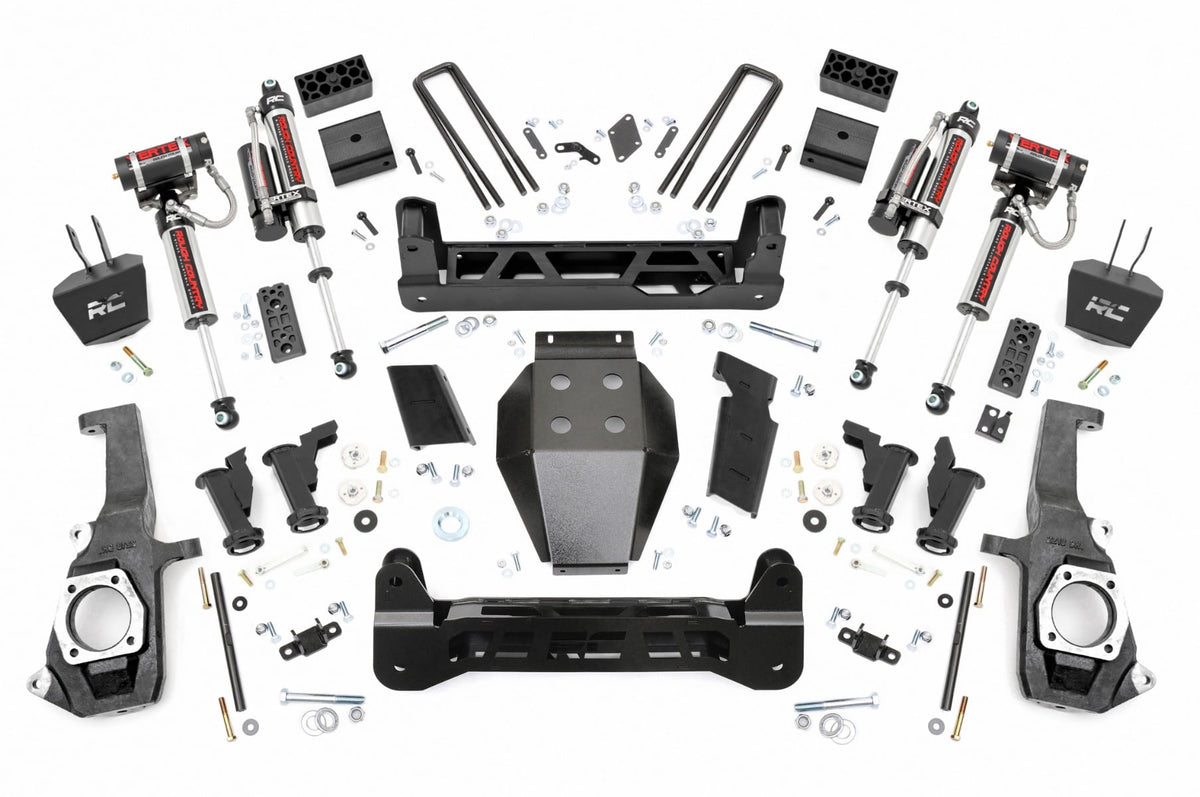

What's included

• Crossmember Box — laser-cut 1/4" thick steel with powder-coat "Hammer Black" finish to match factory components and provide structural support for the lift system.
• Torsion Bar Drop Kit Box — engineered brackets and hardware that drop the torsion bars to maintain factory angles while lifting the truck 5 inches.
• 5–7 in Kit Box — suspension brackets and fasteners engineered for the full 5-inch lift height and compatible with a range of shock options.
• Driver and Passenger Knuckles — precision-cast front-end components that preserve axle alignment and reduce wear while accommodating the lift geometry.
• 253x Kit Box — high-strength steel hardware and brackets for driveline angle correction and component integration.
• Vertex 2.5 FR Shocks (qty 2) — nitrogen-charged front shocks tuned for smooth ride quality and responsive handling on lifted geometry.
• Vertex 2.5 RR Shocks (qty 2) — nitrogen-charged rear shocks engineered to complement the Torsion Drop design and maintain factory-like ride feel.

Important notes

• Does not fit dually models due to u-bolt design variances.
• Factory rear overload springs must be removed on equipped models.
• Does not work with factory wheels. Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers and rotor clearance.
• Gas models may require exhaust modification for driveshaft clearance.
• Minor cutting and drilling required during installation. A torsion bar removal tool (Rough Country 1067) is recommended for easier installation.

Why customers pick this at Road Runner

• Torsion Drop design preserves factory ride quality, handling, and axle angles — no aggressive caster correction needed.
• 5-inch lift with 33–35 inch tire clearance keeps your truck's sharp aesthetics and original track width.
• Heavy-duty laser-cut steel crossmembers and powder-coated "Hammer Black" finish match factory components and resist corrosion.
• No differential modifications or drivetrain changes required — clean, straightforward installation.
• Rough Country's lifetime warranty backed locally; professional alignment performed in-house after every lift install.
• Customizable shock options — upgrade from Vertex to premium reservoir shocks based on your driving style.

Ready to build it? Call (678) 400-6467. Hablamos Español.
