5 Inch Lift Kit | Ntd | M1 | Chevy/gmc 2500hd/3500hd (11-19)

Built for Chevy and GMC 2500HD/3500HD owners who want serious ground clearance without sacrificing factory ride quality — this 5-inch lift kit combines rugged strength with the innovative Non-Torsion Drop (NTD) design that keeps your torsion bars in their factory location. You'll gain the clearance to run 33–35-inch tires while preserving stock track width, axle geometry, and that smooth, predictable handling your truck came with.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

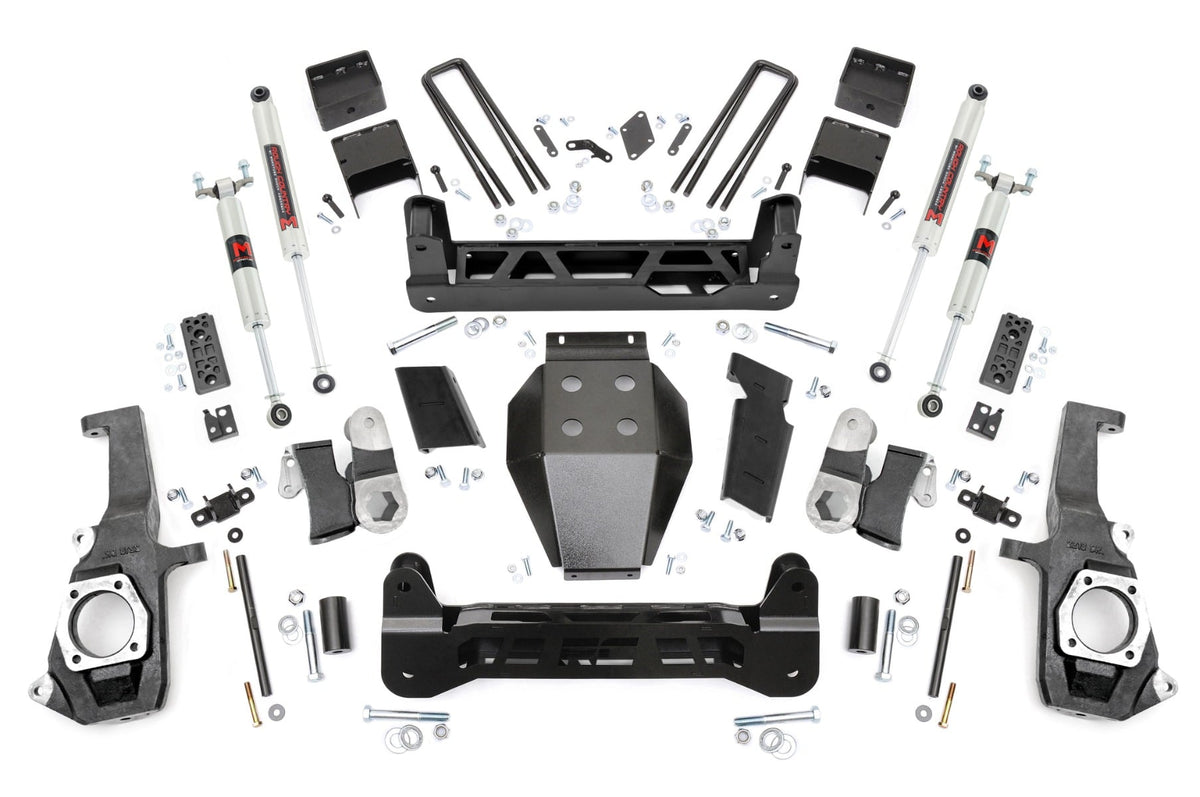

What's included

• Crossmember Box — Massive 1/4-inch thick steel construction, powder-coated in Hammer Black for corrosion resistance and a factory-finished appearance.
• 5–7in Kit Box — Core lift assembly engineered to deliver the full 5 inches of suspension height while maintaining factory angles.
• Driver and Passenger Knuckles — Precision-cut to preserve proper axle position and eliminate additional geometric strain during articulation.
• 253x Kit Box — Transfer-case bracket and support hardware pre-assembled for a streamlined install.
• 5" NTD Bracket and Rear Kit Boxes — Half-inch thick brackets and laser-cut skid plate that secure the system without drilling or cutting the factory differential.
• M1 Monotube Shock Pairs (Front and Rear) — Performance-tuned shocks with velocity-sensitive damping that preserve factory ride comfort while handling the added height.

Important notes

• Does not fit dually models due to u-bolt design variances.
• Requires minor cutting and drilling during installation.
• Factory rear overload springs must be removed on equipped models.
• Factory 17-inch wheels must be replaced with 17-inch or larger aftermarket wheels due to larger calipers and rotors — this kit does not work with OE wheels.
• Gas models may require exhaust modification for driveshaft clearance.
• A torsion bar removal tool (RC 1067) is recommended for easier installation.

Why customers pick this at Road Runner

• Non-Torsion Drop design maintains factory torsion bar location and axle geometry — no added wear or strain.
• Preserves stock track width and ride quality — your truck handles like factory while sitting 5 inches higher.
• Heavy-duty components — 1/4-inch thick steel crossmembers and 1/2-inch NTD brackets engineered for the demands of a 2500HD/3500HD.
• Rough Country lifetime warranty backed locally and installed by technicians who do these lifts every week.
• Professional alignment performed in-house as part of every lift install — ensures tire wear and handling are dialed in from day one.
• Shock options tuned to your driving style — choose N3, M1, V2, or Vertex reservoirs when you order, all retained in the kit.

Ready to build it? Call (678) 400-6467. Hablamos Español.
