5 Inch Lift Kit | Non-dually | Ram 3500 4wd (2013-2015)

Built for Ram 3500 owners who want an aggressive lifted profile without sacrificing factory ride quality, this 5-inch lift kit delivers increased ground clearance while preserving the geometry and progressive-rate coil springs engineered into your truck from the factory. The kit accommodates 33"–35" tires and uses precision-fit radius arms that maintain suspension angles close to OE specifications — so you get the look and capability without the harsh ride.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

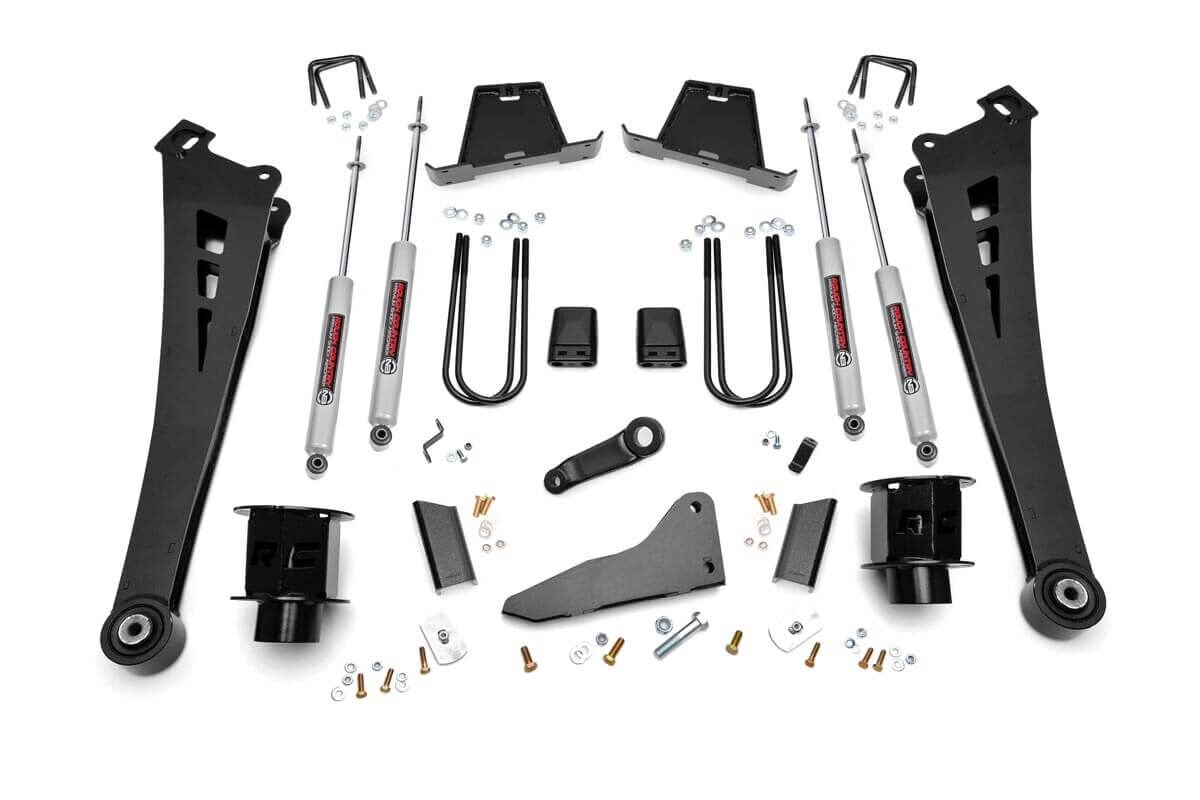

What's included

• Driver Radius Arm — maintains factory-geometry angles and bolts directly into OE mounts for easier installation and consistent suspension behavior.
• Passenger Radius Arm — mirrors the driver-side geometry to keep front-axle alignment and handling predictable.
• Front Coil Spring Spacers — preserve the factory progressive-rate springs while adding lift height.
• Track Bar Bracket — keeps the front axle properly centered under the frame during articulation and cornering.
• Sway-Bar Brackets — maintain anti-roll-bar geometry after the suspension is raised.
• Pitman Arm — ensures steering geometry remains correct relative to the lifted suspension.
• 4-Inch Fabricated Lift Blocks — stronger than cast blocks and engineered for longer lifespan in rear suspension.
• U-Bolts — secure rear springs and axle housing.
• N3 Series Shock Absorbers — application-valved for balanced on and off-road performance.
• Hardware — all fasteners, brackets, and mounting components.

Important notes

• Does NOT fit Dually models or "Power Wagon" variants.
• Does NOT fit models equipped with rear air suspension.
• Models with factory rear overload springs must have the overload spring removed before installation.
• Vehicles equipped with a two-piece driveshaft and carrier bearing (Mega Cab models) may experience minor take-off vibration; this can be corrected with carrier-bearing shimming if needed.
• Installation requires minor drilling and cutting.

Why customers pick this at Road Runner

• Radius arms are precision-fit to factory mounts — no guesswork, faster install, and suspension geometry stays close to OE angles for a smooth ride.
• Retains your factory progressive-rate coil springs, so the truck handles and feels like a lifted Ram should, not like an over-stiff aftermarket build.
• Fabricated lift blocks are engineered to outlast cast alternatives, especially under heavy towing or off-road use.
• Installed by techs who do Ram suspension work every week — alignment performed in-house as part of every lift install.
• Rough Country lifetime warranty backed locally; we're the ones who service your truck and stand behind every bolt.

Ready to build it? Call (678) 400-6467. Hablamos Español.
