5 Inch Lift Kit | Multiple Makes & Models (Ford/mazda)

Built for Ford Ranger and Mazda B-Series owners who want commanding ground clearance and an aggressive lifted stance, this Rough Country 5-inch suspension lift kit delivers everything needed to increase ride height and clear up to 33-inch tires while maintaining a level front-to-rear profile. The all-inclusive design includes front and rear crossmembers, lifted knuckles, and nitrogen-charged N3 shocks with 10-stage variable valving for smooth on and off-road performance.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

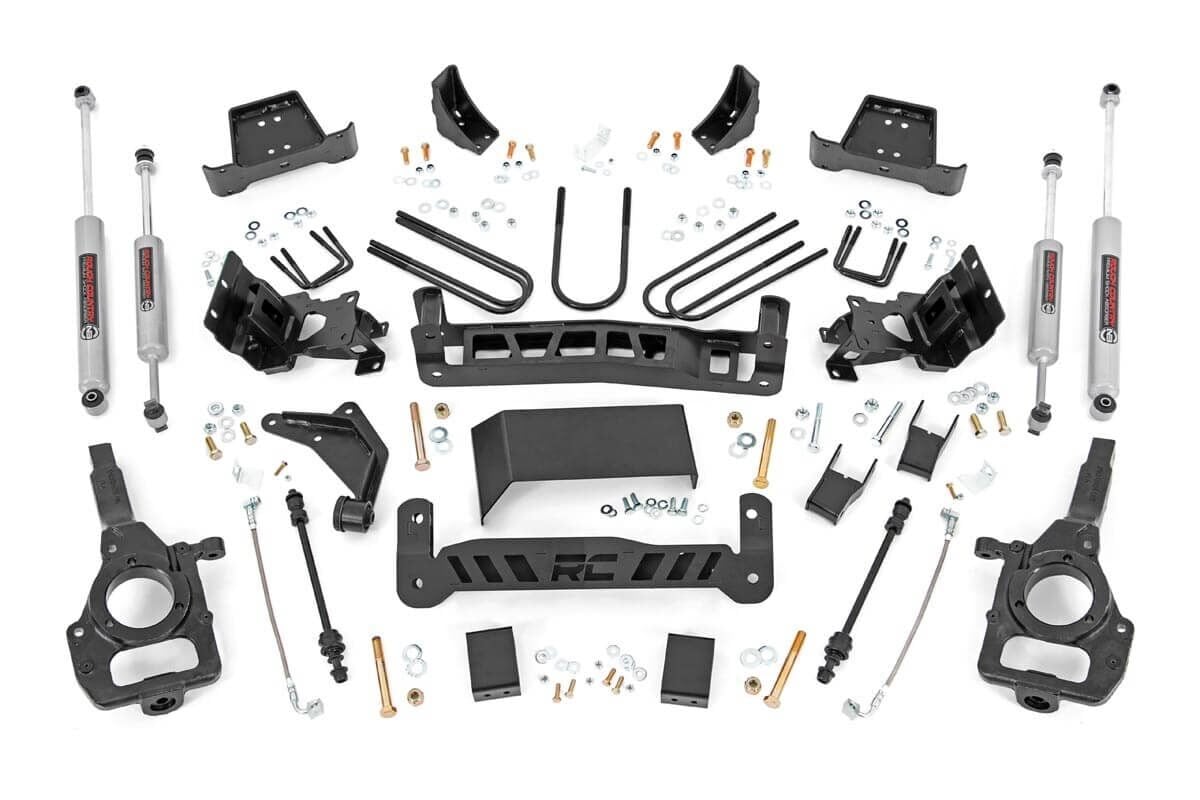

What's included

• Front and rear crossmembers — provide the structural foundation for the 5-inch lift height and maintain proper geometry under load.
• Lifted knuckles — repositions steering geometry to accommodate the increased suspension travel and preserve driveline angles.
• Skid plate — protects the undercarriage from rocks and obstacles during off-road use.
• Extended brake lines — accommodate the increased suspension travel without restricting brake fluid flow.
• Differential brackets — secure the differential housing and prevent unwanted movement during articulation.
• Anti-wrap rear blocks — control driveline torque and maintain axle alignment under acceleration.
• Bump stops and U-bolts — limit suspension travel and secure the rear axle assembly.
• Upper control arm cam bolts — enable precise caster and camber adjustment for proper wheel alignment after lifting.
• N3 nitrogen-charged shocks — feature 10-stage variable valving, 18mm spring-loaded piston rods, and 54mm bodies for durable, compliant ride quality on rough terrain.

Important notes

• Requires 17-inch or larger wheels — does not fit smaller diameter OE wheels.
• Does NOT fit 11.25-inch rotors found on some 1998–2003 models. Models equipped with these rotors must upgrade to 12.1-inch rotors before installation.
• Does NOT fit models with 31-spline rear axle — verify your axle spline count before ordering.
• Models equipped with pulse vacuum hub (PVH) ports routed through the knuckle will need to be converted to manual hubs — specialty tools may be required (see installation instructions).
• An upgraded driveshaft is highly recommended — consult Road Runner on SKU 5089.1 or equivalent for your specific model year and configuration.
• A torsion bar tool is required for installation (SKU 1067 or equivalent).

Why customers pick this at Road Runner

• Rough Country lifetime warranty backed by professional service and support — parts are covered for as long as you own the vehicle.
• Installed by techs who perform these lifts every week — you get experience, not guesswork.
• Professional alignment performed in-house as part of every lift install — upper control arm cam bolts are adjusted to factory spec before you drive away.
• Complete component package arrives ready to bolt on — no hunting for brake lines, brackets, or skid-plate hardware separately.

Ready to build it? Call (678) 400-6467. Hablamos Español.
