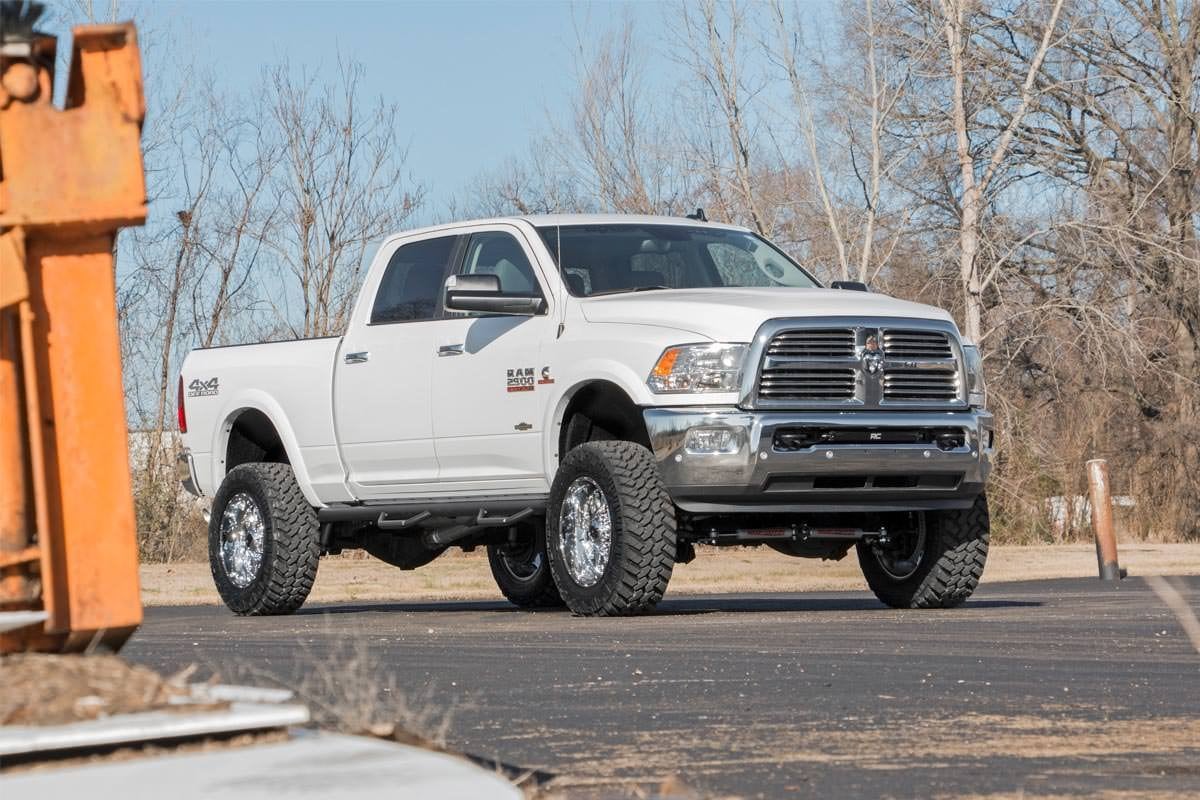

5 Inch Lift Kit | Diesel | Dual Rate Coils | V2 | Ram 2500 4wd (2014-2018)
$1,889.95
Price does not include installation.
Pay over time
Acima
$70/wk*Apply
As little as $10 down
Snap Finance
/wk*Apply
No credit needed
Synchrony
Pay Later
Choose at checkout
$1,889.95
*Estimated lease-to-own payment. Final approval and terms are determined by the lender. See all financing options →
Snap lease details
🛠️ Install available in Marietta, GA
Installed and serviced at Road Runner Wheels & Tires — 1585 Roswell Rd, Marietta, GA 30062. Call (678) 400-6467 to schedule.
Loading stock…
Built for Ram 2500 diesel owners who want maximum ground clearance without sacrificing factory-like suspension geometry, this 5-inch lift kit combines dual-rate coils with precision-engineered radius arms to deliver aggressive capability and smooth ride quality. You'll gain up to 5 inches of lift while maintaining the factory suspension angles that keep your truck handling predictably on and off the pavement — and it works with both factory coil-spring and air-ride rear suspensions.
Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.
What's included
- Driver Radius Arm — maintains factory-like suspension geometry with durable rubber bushings for vibration absorption.
- Passenger Radius Arm — matched pair for balanced front-end alignment and handling.
- Front Box Kit — precision brackets for secure mounting of lifted coil springs.
- Rear Coil Spring Box Kit — integrates with factory rear coil or air-ride suspension for consistent lift across the truck.
- Front 5" Dual Rate Coil Springs — progressive spring rate for smooth ride quality on highway and trail.
- Rear 5" Dual Rate Coil Springs — matched rear lift with dual-rate tuning for load-carrying capability.
- V2 Monotube Shock Absorbers (Front Pair) — nitrogen-charged for consistent damping and off-road durability.
- V2 Monotube Shock Absorbers (Rear Pair) — balanced performance for both on and off-road use.
Important notes
- This kit does NOT fit Power Wagon models or gas-engine Ram 2500s — diesel only.
- Installation requires drilling and cutting; professional installation recommended.
- On Mega Cab models equipped with a two-piece driveshaft and carrier bearing, take-off vibration is possible; this can be corrected with carrier bearing shimming.
- Air-ride rear suspension models include a rear air bag spacer and Rear Sensor Arm Relocation Bracket that allows ride-height adjustment up to 1 inch higher than the front via multiple mounting points (spaced at 1/4-inch intervals).
- Recommended tire range: 33"–35".
Why customers pick this at Road Runner
- Geometry-corrected radius arms keep your front end tracking true — no premature tire wear or handling surprises.
- Dual-rate coil springs balance lifted stance with ride comfort, on pavement and rough terrain alike.
- Works with factory coil or air-ride rear suspension — no need to swap systems.
- Rough Country lifetime warranty backed by local installation and service expertise.
- Professional alignment performed in-house as part of every lift install.
Ready to build it? Call (678) 400-6467. Hablamos Español.
| Qty | Part | Part # |
|---|---|---|
| 1 | Driver Radius Arm | Ram 2500 (14-23) Ram 3500 (13-23) | 1368996 |
| 1 | FR Box Kit | Ram 2500 (14-18) | 1373BOX1 |
| 1 | RR Coil Spring Box Kit | Ram 2500 (14-23) | 368BOX1 |
| 1 | FR 5" Dual Rate | Ram 2500 (14-23) | 9414 |
| 1 | RR 5" Dual Rate | Ram 2500 (14-23) | 9415 |
| 1 | V2 MONOTUBE SHOCK PAIR | 760818 |
| 1 | V2 MONOTUBE SHOCK PAIR | 760801 |
| 1 | Passenger Radius Arm | Ram 2500 (14-23) Ram 3500 (13-23) | 1368997 |
Features
- Increased ground clearance
- Track bar bracket keeps the front axle properly centered.
- Fits both rear coil spring and rear air ride suspension models!
- Radius Arms offer a more factory-like angle and feature a durable, durable rubber Bushing for maximum vibration absorption.
- Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
| Years | Make | Model | Drive |
|---|---|---|---|
| 2014-2015 | Ram | 2500 Laramie Limited | 4WD |
| 2014-2015 | Ram | 2500 Lone Star | 4WD |
| 2014-2016 | Ram | 2500 Outdoorsman | 4WD |
| 2014-2018 | Ram | 2500 Big Horn | 4WD |
| 2014-2018 | Ram | 2500 Laramie | 4WD |
| 2014-2018 | Ram | 2500 Laramie Longhorn | 4WD |
| 2014-2018 | Ram | 2500 SLT | 4WD |
| 2014-2018 | Ram | 2500 Tradesman | 4WD |
| 2016-2018 | Ram | 2500 Limited | 4WD |
- Tire size: 33″ to 35″ tall
- Lift height: 5″
Does NOT fit "Power Wagon" models. Does NOT fit gas engine models. Requires drilling and cutting. On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Rough Country Lifetime Replacement Warranty covers all structural components against defects in materials and workmanship for the original purchaser's lifetime ownership of the vehicle.
3-Year Finish Warranty on all painted and powder-coated surfaces.
3-Year Shock Warranty on N3, M1, and Vertex shocks against leakage and structural failure.
Warranty service is handled by Rough Country directly — call (678) 400-6467 if you need help opening a warranty claim and we'll walk you through it.
