5 Inch Lift Kit | Chevy/gmc Suv 1500 2wd/4wd (2007-2014)

Built for Chevy and GMC SUV 1500 owners who want aggressive ground clearance and a level stance without factory air-suspension or electronic steering conflicts. This 5-inch lift kit combines precision-engineered crossmembers and lifted knuckles to deliver serious ride height while keeping your truck's geometry balanced. Supports up to 33-inch tires and requires no strut-compressor work during installation.

Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

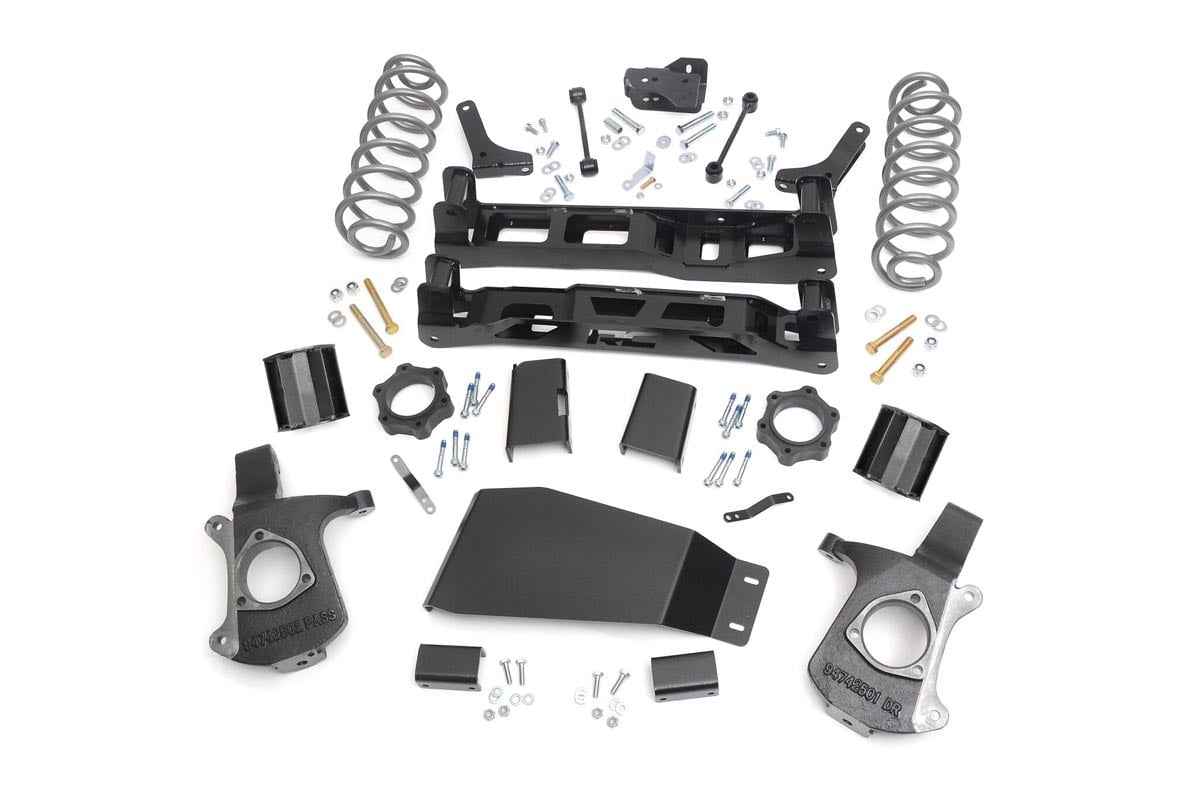

What's included

• Lifted Knuckles — Raise your front geometry while maintaining OEM-quality steering and suspension angles.
• Front & Rear High-Clearance Crossmembers — 1/4-inch thick steel components built to precise laser-cut specs; deliver unmatched ground clearance without differential or drivetrain modification.
• Lifted Coil Springs & Upper Strut Spacers — Provide the core 5 inches of ride height.
• Sway-Bar Links & Drop Brackets — Maintain proper suspension geometry and vehicle stability post-lift.
• Shock Extensions — Accommodate the increased suspension travel.
• Brake-Line Brackets — Ensure safe brake-line routing after lift installation.
• Lower Skid Plate — Off-road protection for undercarriage components.
• Differential Drop Brackets — Preserve driveline angles and prevent binding.
• Grade 8 Hardware — OEM-grade fasteners for reliability.

Important notes

• Does not fit Auto Ride or Auto Leveling models (OE air-suspension incompatible).
• Does not fit models with electric steering.
• AWD models require driveline conversion — AWD must be converted to non-AWD for kit compatibility.
• Minimum 18-inch wheels required; refer to instructions for complete tire/wheel fitment tables.
• Minor cutting and drilling required during installation.

Why customers pick this at Road Runner

• Corrected geometry out of the box — sway-bar and differential drop brackets keep your truck riding like factory while standing tall.
• Rough Country lifetime warranty backed by in-house technical support and parts availability.
• Professional installation by technicians who perform these lifts every week — no guesswork.
• Alignment performed in-house as part of every lift install, so your new stance drives true.
• No strut compressor or teardown required — faster, cleaner installation.

Ready to build it? Call (678) 400-6467. Hablamos Español.
