Rough Country · Authorized Dealer
5 Inch Lift Kit | Air Ride | Ram 1500 4wd (2019-2024)
$1,499.95
Price does not include installation.
Pay over time
Acima
$56/wk*Apply
As little as $10 down
Snap Finance
/wk*Apply
No credit needed
Synchrony
Pay Later
Choose at checkout
$1,499.95
*Estimated lease-to-own payment. Final approval and terms are determined by the lender. See all financing options →
Snap lease details
🛠️ Install available in Marietta, GA
Installed and serviced at Road Runner Wheels & Tires — 1585 Roswell Rd, Marietta, GA 30062. Call (678) 400-6467 to schedule.
Loading stock…
Built for Ram 1500 owners who demand factory-smooth air suspension with aggressive ground clearance, this 5-inch lift kit delivers a commanding stance without sacrificing ride quality. It levels your truck front-to-rear, fits up to 35-inch tires, and keeps your factory air-ride modes working exactly as they should — no compromise on comfort or performance.
Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

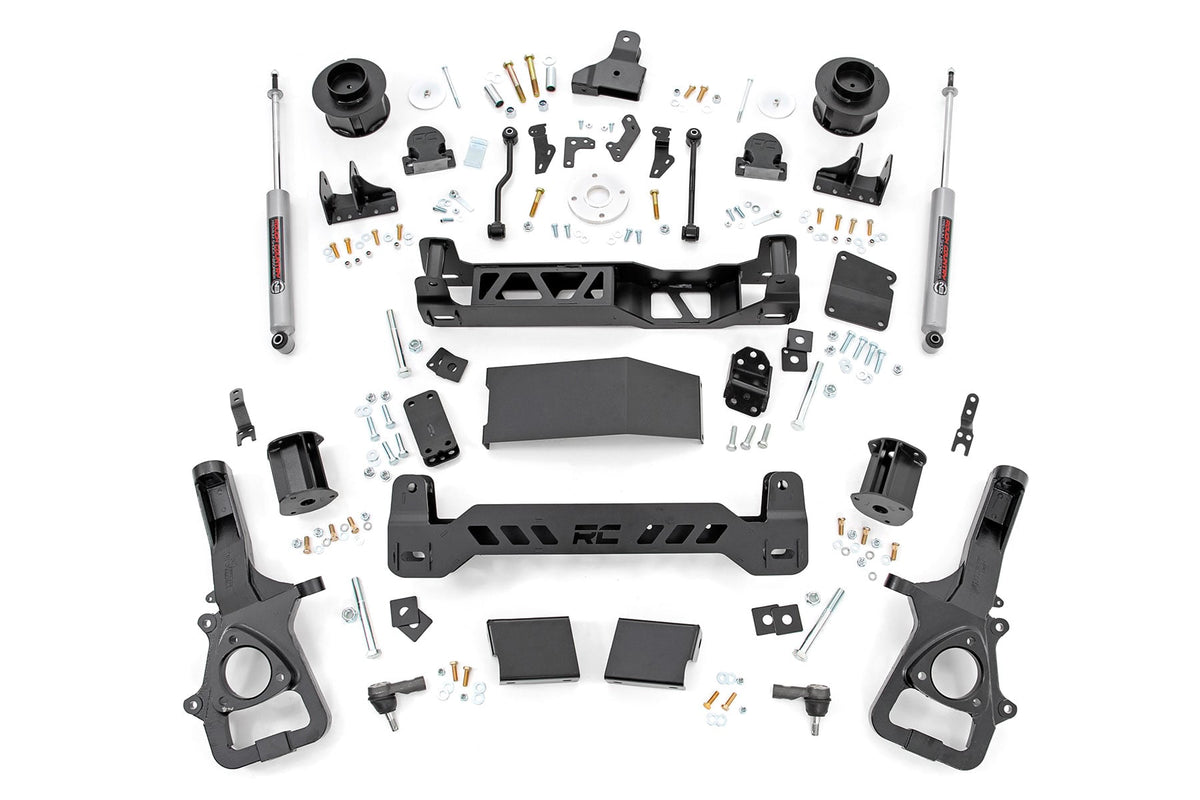

What's included
- N3 Shock Pair — Nitrogen-charged rear shocks valved specifically for balanced on- and off-road performance, maintaining smooth ride quality after the lift.
- Crossmember Box Kit — Laser-cut front and rear crossmembers engineered to support lift geometry and undercarriage protection.
- Driver and Passenger Knuckles — Precision-fitted front knuckles that maintain caster correction and suspension geometry after lift installation.
- Kit Box with 5-inch Spacer Kit — Spacer stack and mounting hardware that delivers the full 5-inch lift height while preserving factory suspension travel.
Important notes
- Air suspension requirement: ONLY fits 2019–2024 Ram 1500 4WD models with 4-corner air suspension (standard on Limited and Limited Longhorn). Does NOT fit 1500 Classic or Rebel models.
- NOT recommended for AWD models due to pinion angle issues that cause drivetrain vibrations.
- Wheel and tire requirements: Requires 20-inch or larger wheels. Does NOT fit 18-inch or smaller wheels. Does NOT fit factory wheels.
- Tire clearance: Supports up to 35-inch tires in the recommended range.
Why customers pick this at Road Runner
- Preserves factory air-ride smoothness — you get lift and ground clearance without trading comfort for performance.
- Corrected geometry installed by techs who spec these kits every week — drop brackets maintain proper caster and suspension travel from day one.
- Professional alignment performed in-house as part of every lift install, ensuring steering feel and tire wear stay true.
- Backed by Rough Country's Limited Lifetime Replacement Guarantee and installed by an authorized dealer you can return to.
Ready to build it? Call (678) 400-6467. Hablamos Español.
| Qty | Part | Part # |
|---|---|---|
| 1 | Kit Box | Ram 1500 (19-23) | 334BOX1 |
| 1 | 5in Spacer Kit Box | Ram 1500 (19-23) | 338BOX1 |
| 1 | N3 Shock Pair | 23207 |
| 1 | Crossmember Box Kit | Ram 1500 (19-23) | 33430BOX1 |
| 1 | Dr Knuckle | Ram 1500 (19-23) | 33430BOX2 |
| 1 | Ps Knuckle | Ram 1500 (19-23) | 33430BOX3 |
Features
- Boosted Off-Road Performance: Increased ground clearance for better obstacle clearance and rugged terrain capability
- Balanced Ride Height: Levels front of vehicle with rear to improve stance and provide even handling
- Factory Comfort Retained: Maintains factory air ride modes to preserve original ride quality and smooth performance.
- Supports Up to 35-Inch Tires: Provides the clearance and lift height needed to run larger wheels and tires for a more aggressive stance.
- Rear N3 Nitrogen-Charged Shocks: Included shocks are specifically valved for a smooth, responsive ride on and off the pavement.
| Years | Make | Model | Drive |
|---|---|---|---|
| 2019-2021 | Ram | 1500 Laramie Longhorn | 4WD |
| 2019-2024 | Ram | 1500 Big Horn | 4WD |
| 2019-2024 | Ram | 1500 Laramie | 4WD |
| 2019-2024 | Ram | 1500 Limited | 4WD |
| 2019-2024 | Ram | 1500 Lone Star | 4WD |
| 2019-2024 | Ram | 1500 Rebel | 4WD |
| 2019-2024 | Ram | 1500 Tradesman | 4WD |
| 2021 | Ram | 1500 Longhorn | 4WD |
| 2021-2024 | Ram | 1500 Limited Longhorn | 4WD |
| 2022-2024 | Ram | 1500 HFE | 4WD |
- Tire size: 33″ to 35″ tall
- Lift height: 5″
ONLY fits models with 4-Corner Air-Suspension found standard on Limited and Limited Longhorn models. This package is an available upgrade across multiple sub-models. For a visual to confirm if your vehicle is equipped, click here. Does NOT fit 2019-2024 1500 Classic models. For a visual please click here. Does NOT fit Rebel models as they are equipped with a off-road-tuned suspension geometry. This kit is NOT recommended for AWD models due to pinion angle issues, which cause drivetrain vibrations. Tire & Wheel Details Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels. Does NOT fit factory wheels.
Rough Country Lifetime Replacement Warranty covers all structural components against defects in materials and workmanship for the original purchaser's lifetime ownership of the vehicle.
3-Year Finish Warranty on all painted and powder-coated surfaces.
3-Year Shock Warranty on N3, M1, and Vertex shocks against leakage and structural failure.
Warranty service is handled by Rough Country directly — call (678) 400-6467 if you need help opening a warranty claim and we'll walk you through it.
