4 Inch Lift Kit | Ford F-150 4wd (2011-2013)
$1,199.95
Price does not include installation.
Pay over time
Acima
$44/wk*Apply
As little as $10 down
Snap Finance
/wk*Apply
No credit needed
Synchrony
Pay Later
Choose at checkout
$1,199.95
*Estimated lease-to-own payment. Final approval and terms are determined by the lender. See all financing options →
Snap lease details
🛠️ Install available in Marietta, GA
Installed and serviced at Road Runner Wheels & Tires — 1585 Roswell Rd, Marietta, GA 30062. Call (678) 400-6467 to schedule.
Loading stock…
Built for Ford F-150 4WD owners who want a bold stance and serious off-road capability — this 4-inch lift kit transforms your truck's geometry while supporting up to 35-inch tires. Rough Country's all-inclusive package includes lifted knuckles, adjustable struts, and heavy-duty crossmembers that correct differential and brake-line angles to preserve factory-like ride quality after the lift.
Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

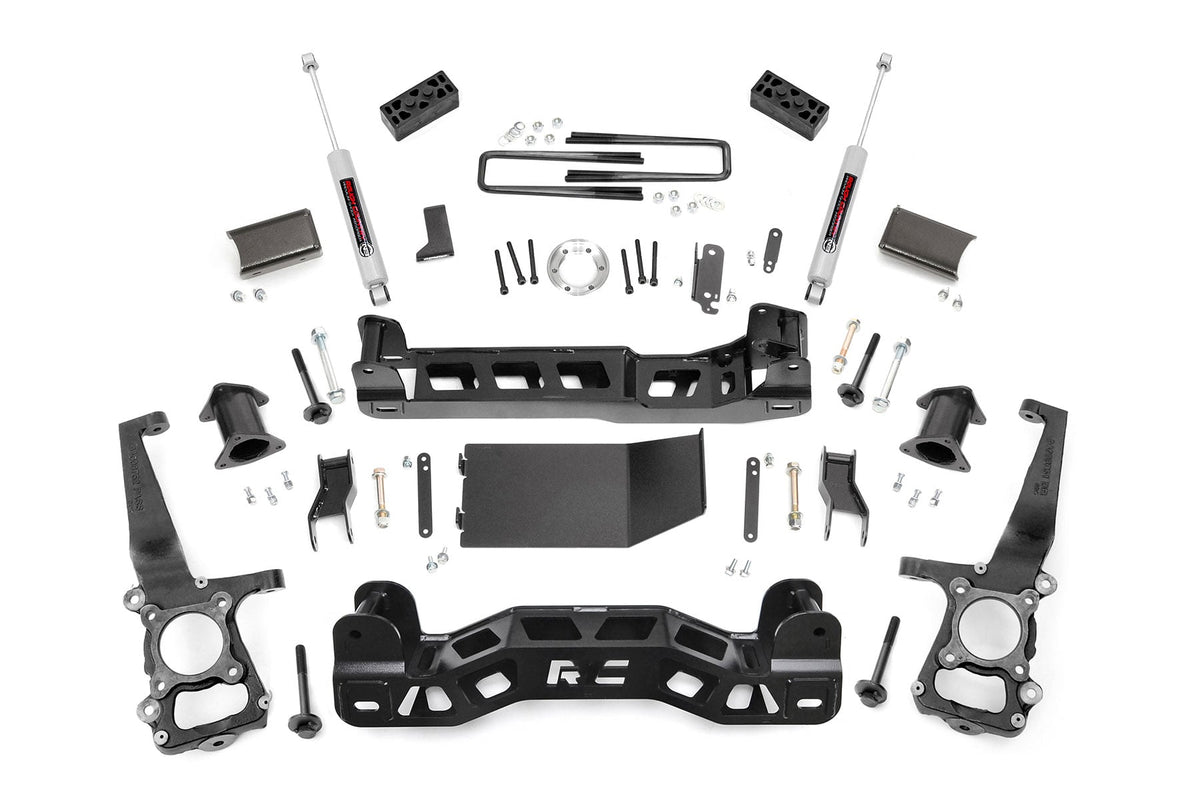

What's included
- Driver Side Knuckle — raises the spindle to gain suspension clearance and support increased tire diameter.
- Passenger Side Knuckle — matches the driver side to maintain even geometry and tire contact patch.
- Crossmember Box — repositions frame attachment points to accommodate the new suspension travel.
- N3 Shock Pair — 10-stage variable-valve shocks with nitrogen charging for smooth damping across pavement and trail.
- 4 Inch Block & U-Bolt Kit — rear blocks and fasteners set rear ride height to match front lift.
- 4-inch Strut Box — front strut components and spacers finalize the 4-inch front extension.
- Universal Kit Box — differential drop, sway-bar drop, brake-line drop brackets, and driveshaft spacer — all engineered to hold factory angles after lift.
Important notes
- Does NOT fit Raptor models — they use long-travel suspension and Fox Racing Shox incompatible with this kit.
- Does NOT fit models equipped with Heavy Duty Payload Package (seven-lug models).
- Requires minor cutting and drilling during installation.
- 9-inch wide wheels are recommended to optimize tire clearance and geometry.
Why customers pick this at Road Runner
- Factory ride geometry corrected by drop brackets — your truck handles like stock, just taller.
- Rough Country lifetime warranty backed locally — we stand behind every install.
- Professionally installed by technicians who perform these lifts every week — no guesswork.
- Alignment performed in-house as part of every lift install — proper toe and caster included.
Ready to build it? Call (678) 400-6467. Hablamos Español.
| Qty | Part | Part # |
|---|---|---|
| 1 | Universal Kit Box | Ford F-150 (09-14) | 575BOX2 |
| 1 | Crossmember Box | Ford F-150 (09-14) | 1598BOX10 |
| 1 | Driver Side Knuckle | Ford F-150 (11-14) Ford Raptor (10-14) | 1558BOX1 |
| 1 | Passenger Side Knuckle | Ford F-150 (11-14) Ford Raptor (10-14) | 1558BOX2 |
| 1 | 4in Strut Box | Ford F-150 (09-20) | 555BOX3 |
| 1 | 4 Inch Block & U-Bolt Kit | Ford F-150 (09-20) | 555BOX1 |
| 1 | N3 Shock Pair | 23165 |
Features
- Aggressive 6-Inch Lift: Gives your Ford F-150 a bold stance and off-road capability.
- Strut Options: Choose between strut spacers, N3 lifted struts, or high-performance M1 monotube struts for customized ride quality.
- 35-Inch Tire Clearance: Achieve enough lift to run up to 35-inch tires for an aggressive look and improved off-road performance.
- Factory Ride Retention: Differential, sway-bar, and brake line drop brackets maintain factory-like ride quality and correct component angles.
- Heavy-Duty Cross Members: 1/4-inch thick plate steel front and rear cross members offer maximum durability and feature a laser-cut "RC" logo for added style.
- Premium Shock Options: N3 shocks offer 10-stage variable valving and high-pressure nitrogen charging for a smooth ride on any terrain, while M1 monotube shocks feature internal floating piston technology for unmatched damping and heat dissipation.
| Years | Make | Model | Drive |
|---|---|---|---|
| 2011 | Ford | F-150 Lariat Limited | 4WD |
| 2011-2012 | Ford | F-150 Harley-Davidson Edition | AWD |
| 2011-2013 | Ford | F-150 FX4 | 4WD |
| 2011-2013 | Ford | F-150 King Ranch | 4WD |
| 2011-2013 | Ford | F-150 Lariat | 4WD |
| 2011-2013 | Ford | F-150 Platinum | 4WD |
| 2011-2013 | Ford | F-150 STX | 4WD |
| 2011-2013 | Ford | F-150 XL | 4WD |
| 2011-2013 | Ford | F-150 XLT | 4WD |
| 2013 | Ford | F-150 Limited | 4WD |
- Tire size: 33″ to 35″ tall
- Lift height: 4″
Requires minor cutting and drilling. Does NOT fit Raptor models as they are equipped with a long-travel suspension and Fox Racing Shox. Does NOT fit models equipped with Heavy Duty Payload Package (seven lug models). 9" wide wheels are recommended.
Rough Country Lifetime Replacement Warranty covers all structural components against defects in materials and workmanship for the original purchaser's lifetime ownership of the vehicle.
3-Year Finish Warranty on all painted and powder-coated surfaces.
3-Year Shock Warranty on N3, M1, and Vertex shocks against leakage and structural failure.
Warranty service is handled by Rough Country directly — call (678) 400-6467 if you need help opening a warranty claim and we'll walk you through it.
