4 Inch Lift Kit | Ford F-150 4wd (1997-2003)
$1,049.95
Price does not include installation.
Pay over time
Acima
$39/wk*Apply
As little as $10 down
Snap Finance
/wk*Apply
No credit needed
Synchrony
Pay Later
Choose at checkout
$1,049.95
*Estimated lease-to-own payment. Final approval and terms are determined by the lender. See all financing options →
Snap lease details
🛠️ Install available in Marietta, GA
Installed and serviced at Road Runner Wheels & Tires — 1585 Roswell Rd, Marietta, GA 30062. Call (678) 400-6467 to schedule.
Loading stock…
Built for Ford F-150 4WD owners who want a more aggressive stance and the clearance to run bigger tires, this 4-inch lift kit delivers 4 inches of ride height while maintaining factory-like geometry through corrected differential drop brackets, sway-bar links, bump-stop brackets, and torsion-bar drop brackets. You'll gain clearance for up to 35-inch tires without cutting, drilling, or drivetrain modifications — just a clean, bolt-on install with common tools.
Installed and serviced at Road Runner Wheels & Tires. Most lift kits go in the same day. Call (678) 400-6467 to schedule.

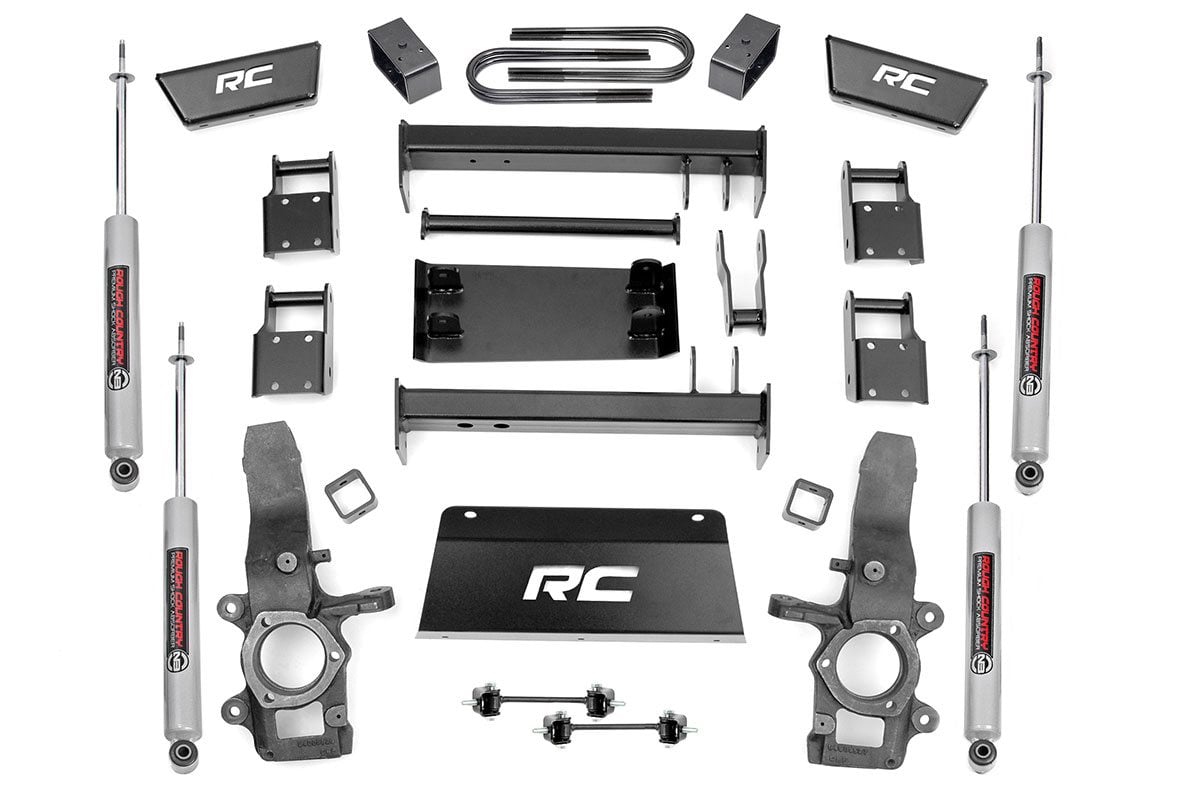

What's included
- N3 Shock Kit — Premium shocks with 10-stage variable valving, high-pressure nitrogen charge, 18mm spring-loaded piston rods, and 54mm shock bodies deliver smooth highway rides and firm off-road response.
- Lifted Knuckles — Heavy-duty front knuckles provide the geometry and clearance needed to support up to 35-inch tires.
- 3-Piece Front & Rear Crossmembers — High-strength steel crossmembers form the foundation of the lift and maintain optimal suspension geometry.
- Rear Lift Blocks & U-Bolts — Fabricated blocks deliver improved strength and durability compared to cast alternatives.
- Differential Drop Brackets, Sway-Bar Links, Bump-Stop Brackets & Torsion-Bar Drop Brackets — These components preserve factory-like ride quality by keeping driveline geometry and suspension angles correct after the lift.
- Skid Plates & Hardware — Upper and differential skid plates plus all fasteners needed for installation.
Important notes
- Does NOT fit models equipped with the Heavy Duty Payload Package (seven-lug models).
- Does NOT work with factory wheels — wheel replacement is required.
- For ease of installation, a torsion-bar removal tool (Rough Country part 1067) is recommended.
- Tire clearance supports up to 35-inch tires with proper wheel offset and backspacing.
Why customers pick this at Road Runner
- 100% bolt-on design — no cutting, drilling, or drivetrain work required.
- Geometry-corrected — drop brackets and sway-bar links preserve factory ride quality and driveline angles.
- Rough Country Lifetime Warranty backed locally and honored at our shop.
- Professional installation by technicians who perform these kits every week, plus in-house alignment to spec.
- Premium N3 shocks included — no aftermarket upgrade needed.
- Same-day installation available on most kits.
Ready to build it? Call (678) 400-6467. Hablamos Español.
| Qty | Part | Part # |
|---|---|---|
| 1 | 3in Block & U-Bolt | Ford F-150 (97-03) | 6572 |
| 1 | Box Kit | Ford F-150 (97-03) | 1477BOX1 |
| 1 | Kit Box | Ford F-150 (97-03) | 1477BOX3 |
| 1 | N3 Shock Kit | Ford F-150 (97-03) | 147530 |
| 1 | Knuckles | Ford F-150 (97-03) | 1477BOX2 |
Features
- Hassle-Free Installation: Features a 100% bolt-on design for quick and easy setup with common tools.
- Boosted Ground Clearance: Gain extra ride height to tackle rough terrain with added confidence.
- Level Stance Upgrade: Eliminates factory rake by leveling the front with the rear for a more aggressive profile.
- No Modifications Needed: Installs cleanly with no cutting, drivetrain, or exhaust changes required.
- Compatible with 35-Inch Tires: Gain the clearance you need to run up to 35-inch tires for a tougher stance and enhanced off-road capability.
- Includes Rough Country's N3 Shocks: Premium shocks deliver enhanced ride quality, superior damping, and increased stability for all-terrain comfort and performance.
| Years | Make | Model | Drive |
|---|---|---|---|
| 1997-2000 | Ford | F-150 Base | 4WD |
| 1997-2003 | Ford | F-150 Lariat | 4WD |
| 1997-2003 | Ford | F-150 XL | 4WD |
| 1997-2003 | Ford | F-150 XLT | 4WD |
| 2001-2003 | Ford | F-150 King Ranch | 4WD |
- Tire size: 33″ to 35″ tall
- Lift height: 4″
| Tire | Wheel | Offset |
|---|---|---|
| 35x12.50R17 | 17x9 | -12mm |
| 295/70R18 | 18x8.5 | +0mm |
| 295/70R18 | 18x8.5 | +1mm |
| 35x12.50R18 | 18x9 | -12mm |
| 295/70R18 | 18x9 | -12mm |
| 35x12.50R18 | 18x10 | -25mm |
| 295/70R18 | 18x10 | -25mm |
| 35x12.50R18 | 18x10 | -19mm |
| 295/70R18 | 18x10 | -19mm |
| 35x12.50R18 | 18x10 | -18mm |
| 295/70R18 | 18x10 | -18mm |
| 35x12.50R20 | 20x9 | -12mm |
| 35x12.50R20 | 20x10 | -25mm |
| 35x12.50R20 | 20x10 | -19mm |
| 35x12.50R20 | 20x10 | -18mm |
| 35x12.50R22 | 22x10 | -25mm |
| 35x12.50R22 | 22x10 | -19mm |
| 35x12.50R22 | 22x10 | -18mm |
| 35x12.50R22 | 22x12 | -44mm |
- Install time: 6-8 hours
Does NOT fit models equipped with Heavy Duty Payload Package (seven lug models). Does NOT work with factory wheels. For ease of installation, a torsion bar removal tool is recommended 1067.
Rough Country Lifetime Replacement Warranty covers all structural components against defects in materials and workmanship for the original purchaser's lifetime ownership of the vehicle.
3-Year Finish Warranty on all painted and powder-coated surfaces.
3-Year Shock Warranty on N3, M1, and Vertex shocks against leakage and structural failure.
Warranty service is handled by Rough Country directly — call (678) 400-6467 if you need help opening a warranty claim and we'll walk you through it.
