4 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-21) 4WD | Diesel

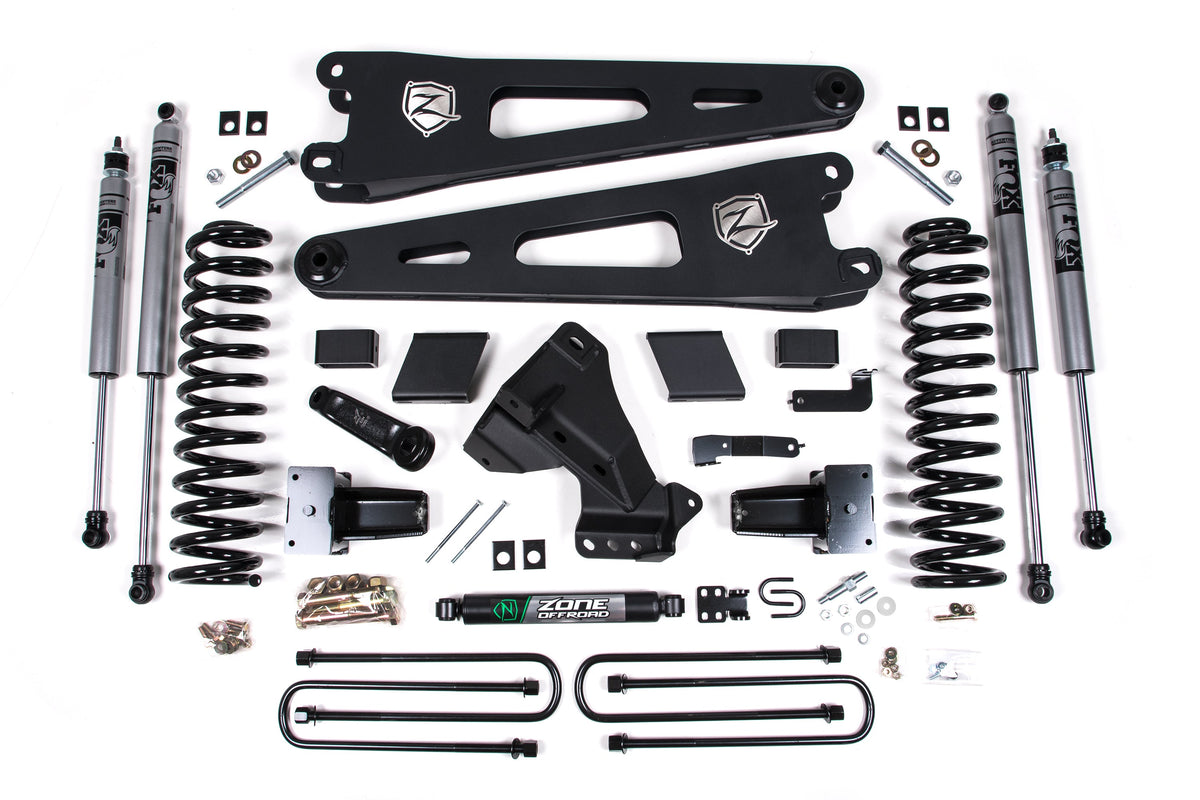

For optimal strength, ground clearance and styling the 4" radius arm system is the way to go. This complete kit is designed to lift and level the stance with room for up to 37" tires to be installed. Front lift comes from a pair of front full length coil springs to pair with your choice FOX 2.0 adventure series shocks for optimal ride quality. The front axle is repositioned using a pair of heavy duty replacement radius arms that bolt in place of the factory stamped steel arms. These arms are built from high strength 1/4" steel, boxed and fully welded with large 2.5" greaseable bushings to isolate road vibrations and improve ground clearance over drop bracket kits. Steering correction comes from a forged drop pitman arm to improve operating angle while a massive 1/4" steel fabricated track bar drop bracket is used to recenter the front end and keep the steering linkage angles in phase for predictable handling. Also included for the front are sway bar relocation brackets, brake line drop brackets, bump stop extensions, and single steering stabilizer kit. In the rear these kits retain the factory overload equipped leaf springs and lift is provided via a replacement lift blocks and longer u-bolts specific to the DRW models. Finishing off the rear is a rear brake line bracket and tour choice of rear gas shocks to match the front of the truck.

Features:

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
• Forged pitman arm to correct steering angles.
• Heavy duty fabricated track bar relocation bracket to re-center front axle.
• Full length Diesel/ Gas specific coil springs for a smooth ride.
• Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame

Specs:

• Front Lift Method : Coil Spring & Radius Arm
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes

Install: 4-6 hrs · Moderate

Fits: Ford F-350 Super Duty (2020–2021).

Installation: Installation Instructions (PDF)
