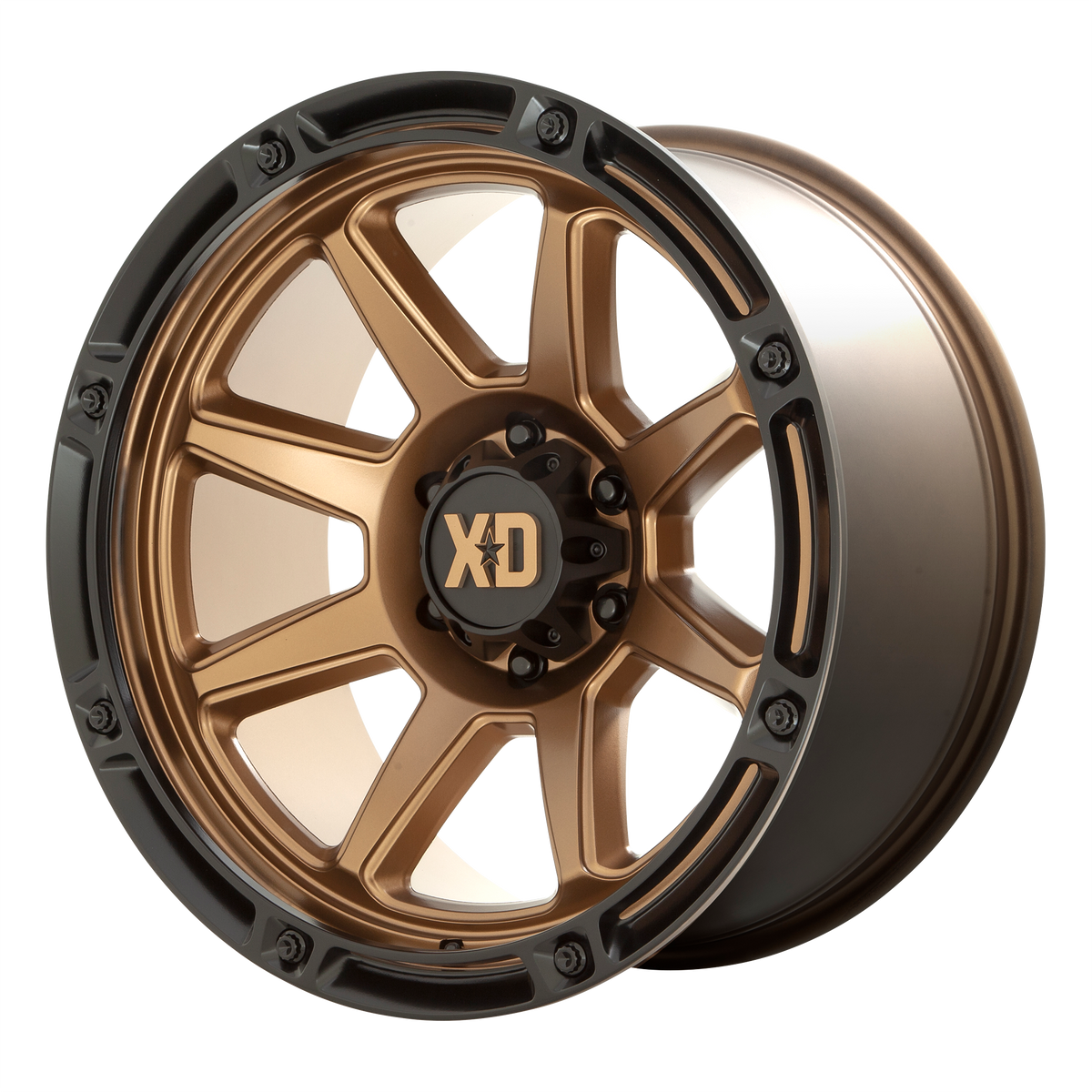

XD XD863 Wheels | Road Runner Marietta GA

Back to Results

Fits your vehicle · Bolt — · Hub — Change Vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Ways to pay

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

Pick one up and the first thing you notice is how clean the face reads despite the aggressive proportions. The XD863 runs a multi-spoke design with defined milled pockets between the spokes — not fussy, not overdone, just purposeful geometry that works at 20 inches. That -18mm offset pushes the face outward, so the wheel fills the fender correctly on wider-bodied SUVs and Wranglers rather than sitting tucked and timid behind the lip. The flat Black finish keeps the entire assembly visually recessive, which actually makes the tire and fender flare the focal point — a smart move on builds with aggressive lifts and meaty all-terrain rubber. It pairs well with body colors like white, silver, gray, and olive, and it doesn't fight with two-tone paint jobs the way chrome or polished finishes can.

Specifications

Diameter x Width	20" x 10"
Bolt Pattern	5x127
Offset	ET-18mm
Backspacing	4.79"
Hub Bore	71.50mm
Load Rating	2500 lbs
Construction	Cast
Material	Aluminum alloy
Finish	BLACK
Manufacturer Part Number	XD86321050718N

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 5x127 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the BLACK Finish

XD is a KMC Wheels brand that's been producing truck and off-road fitments for over two decades. They're known for engineering wheels that meet the load and offset demands of heavier platforms without just repackaging passenger-car designs. The XD lineup has earned a consistent reputation for dimensional accuracy — the bolt circle and hub bore measurements tend to be right the first time.

About XD

XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount, balance, and TPMS programming completed in-shop at our Marietta location on Roswell Rd. We pair wheels with matching tires when needed; same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is spec'd at 20x10 with a -18mm offset and a 5x127 bolt pattern. That covers a broad range of vehicles including the Jeep Wrangler JL and JK, Jeep Gladiator, Dodge Durango, Dodge Journey, Chrysler Pacifica, Jeep Grand Cherokee, and several classic GM platforms running 5x127. Always confirm your vehicle's hub bore and any lift or leveling kit clearance before ordering.

Do lug nuts come included?

Lug nuts are not included with the wheel. Because seat type and thread pitch vary by vehicle, it's standard practice in the industry to sell them separately so you get the correct hardware for your specific application. We can help you identify the right lug nuts when you're ready to order.

Can I finance a set?

Yes — we offer financing options through Acima, Affirm, and Synchrony Car Care so you can spread the cost of a set across manageable payments. Applying takes only a few minutes and won't always require perfect credit. Ask us at checkout or in-store about which option works best for your situation.

Looking for wheels, rims & tires near you in the Atlanta metro? We mount + balance same day at our Marietta tire shop — 1585 Roswell Rd. Serving Marietta, Atlanta, Cobb County, Kennesaw, Smyrna, Sandy Springs, Roswell, Alpharetta, Buckhead + Vinings.
