Finding wheels that fit your vehicle

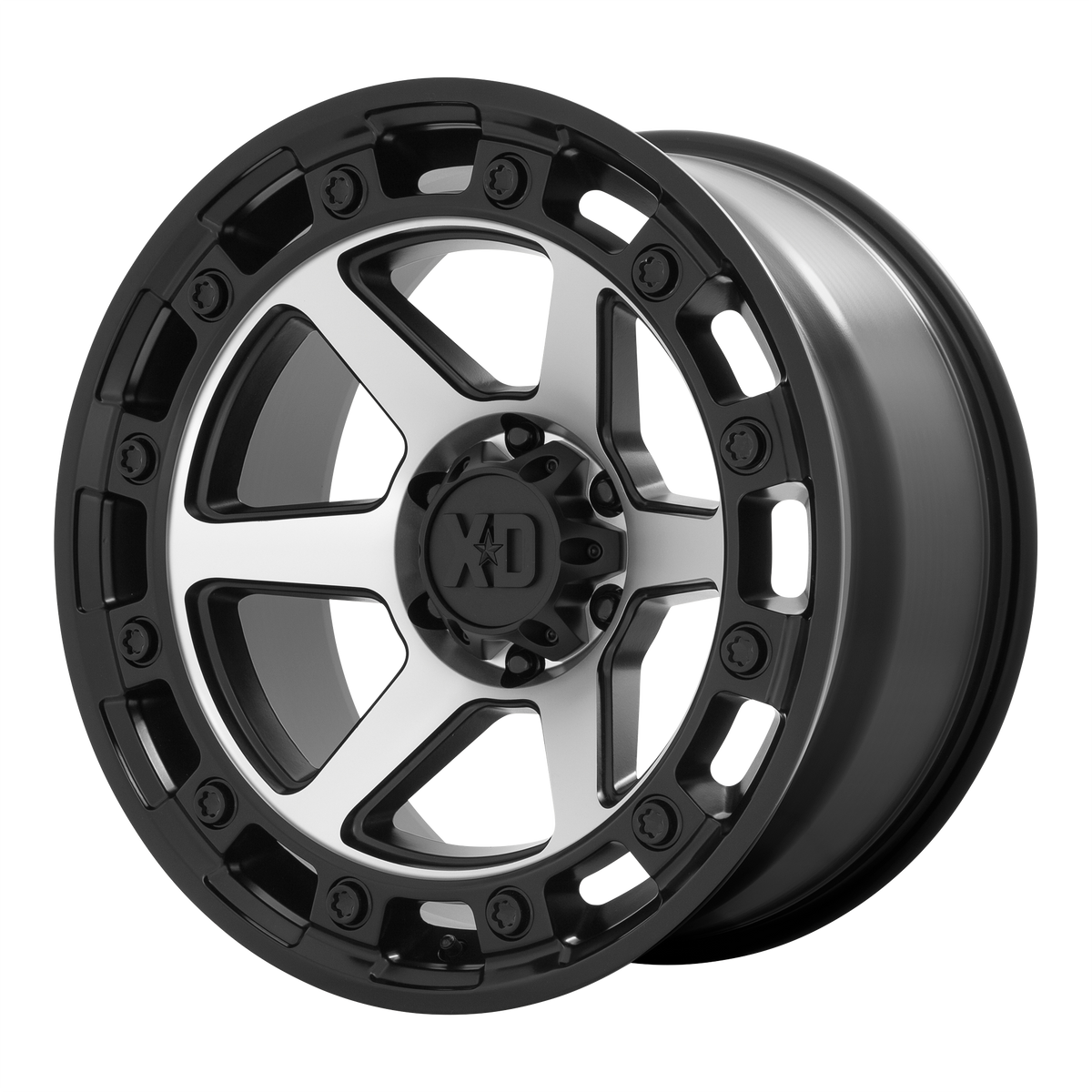

XD862 RAID — Satin Black Machined

Fits your vehicle · Bolt — · Hub — Change Vehicle

Year · Make · ModelAdd your vehicle to confirm fitment Select vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Pay over time

*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender.

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

Held in hand, the RAID has a thick, aggressive spoke structure that feels intentional rather than decorative. The face runs a multi-spoke pattern with enough negative space to show brake hardware without looking busy. Where the machined cuts bite through the satin black, you get a hard contrast line that shifts subtly as light moves across it — not flashy, but sharp. That combination reads well on white, silver, and flat military-green body colors, and it disappears in exactly the right way on matte black trucks. Lifted Jeep Wranglers, Ram 1500s, and JT Gladiators are the natural home for this wheel.

Specifications

Diameter x Width	20" x 10"
Bolt Pattern	5x127
Offset	ET-18mm
Backspacing	4.79"
Hub Bore	71.50mm
Load Rating	2500 lbs
Construction	Cast
Material	Aluminum alloy
Finish	SATIN BLACK MACHINED
Manufacturer Part Number	XD86221050518N

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 5x127 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the SATIN BLACK MACHINED Finish

XD Wheels operates under the KMC/Wheel Pros umbrella and has been producing truck and off-road fitments long enough that their designs show up on working rigs as often as show trucks. The RAID line specifically targets the overlanding and daily-driven lifted truck crowd — riders who want an aggressive stance without sacrificing structural reliability on mixed terrain.

About XD

XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is drilled 5x127, which covers Jeep Wrangler JK, JL, and Gladiator JT, along with certain Ram 1500 configurations. The -18mm offset and 10-inch width typically require a lift and sometimes minor fender work on stock body trucks — confirm your backspacing clearance before ordering.

Do lug nuts come included?

Lug nuts are not included with the wheel. The 5x127 pattern uses a specific seat type depending on your vehicle, so it's worth matching lug seat style — conical, ball, or mag — to what your hub requires. We can recommend the correct set when you order.

Fitment specs: the XD XD862 RAID comes in 5x127 bolt pattern, ET-18 offset, 4.79" backspacing, 71.50mm hub bore, a 2500 lbs load rating.
