XD857 WHIPLASH — Black

Fits your vehicle · Bolt — · Hub — Change Vehicle

Year · Make · ModelAdd your vehicle to confirm fitment Select vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Pay over time

*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender.

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

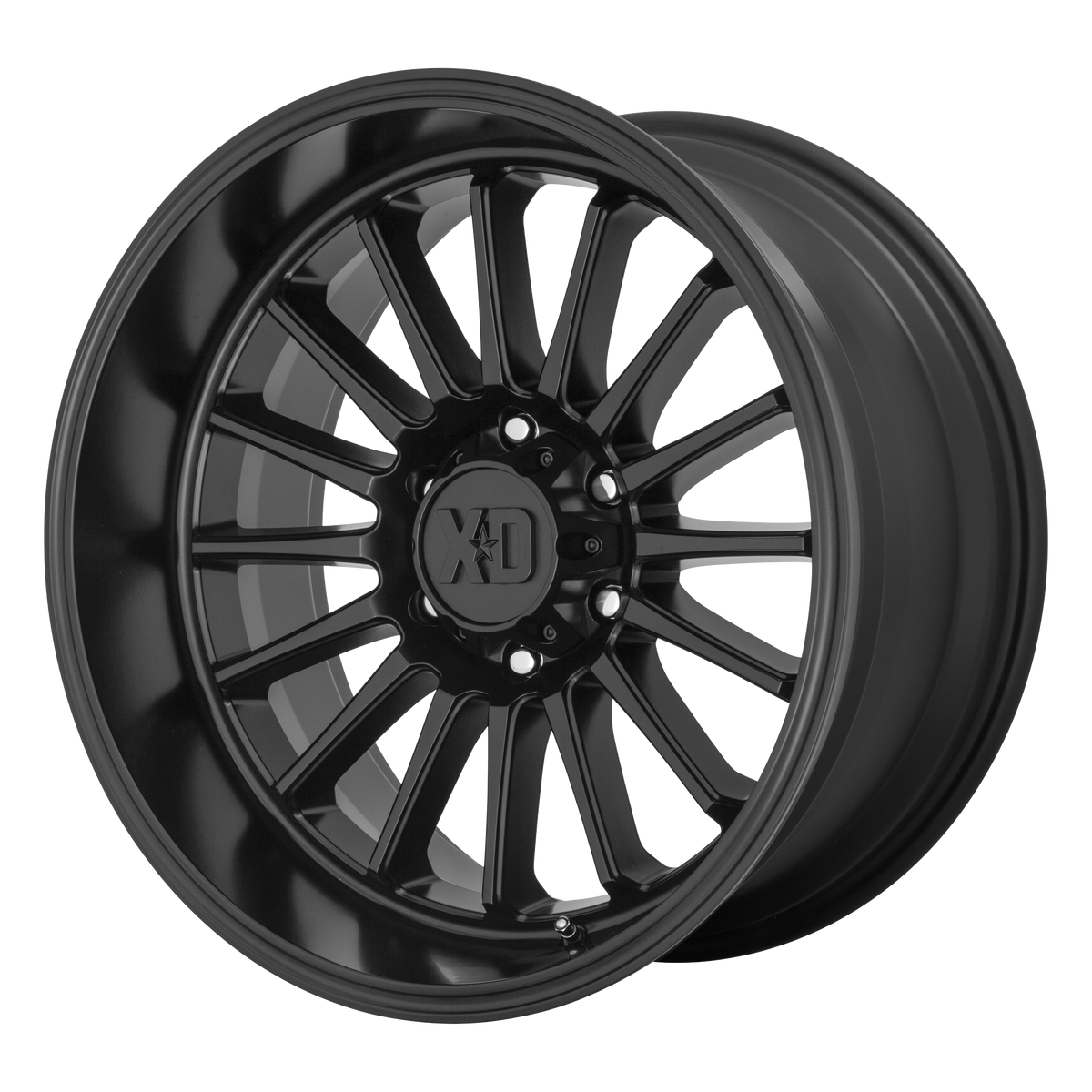

The Whiplash runs a multi-spoke face with sharp, angular spokes that cut toward the center cap rather than flowing in a curve — it reads aggressive from across a parking lot and holds up under close inspection. The spokes are narrow enough that you get good brake caliper visibility, which matters if you're running a big brake kit. In flat black, the face doesn't throw light around; it absorbs it, which gives the wheel a planted, purposeful look rather than a flashy one. That works well against white, silver, and gray truck bodies where you want contrast without the wheel competing with the paint. On blacked-out trucks, the tonal pairing is intentional and clean. This is a wheel that suits full-size Fords — think F-150 platforms — where the 6x135 bolt pattern is native.

Specifications

Diameter x Width	20" x 10"
Bolt Pattern	6x135
Offset	ET-18mm
Backspacing	4.79"
Hub Bore	87.10mm
Load Rating	2500 lbs
Construction	Cast
Material	Aluminum alloy
Finish	BLACK
Manufacturer Part Number	XD85721063718N

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 6x135 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the BLACK Finish

XD is a KMC Wheels brand that has been in the truck and off-road wheel segment for a long time. Their fitment catalog is well-developed, and the XD series specifically targets the aggressive-stance truck market with cast construction at a price point that makes sense for a full set. They're not a boutique brand, but the engineering behind the offsets and load ratings is consistent and well-documented.

About XD

XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is drilled for a 6x135 bolt pattern, which is native to Ford F-150 trucks among other applications. At 20x10 with a -18mm offset, you'll likely need a level kit or lift to clear the fender on most factory-height trucks, and tire sizing matters — running too aggressive a tire without clearance work can cause rubbing. Confirm your specific year and trim before ordering.

Do lug nuts come included?

Lug nuts are not included with this wheel. The seat style on your existing lug nuts needs to match the seat in the wheel's lug hole — most XD wheels use a standard conical or acorn seat, but verify before reusing factory hardware. If you're unsure, we can point you to the correct spec when you call or come in.

Fitment specs: the XD XD857 WHIPLASH comes in 6x135 bolt pattern, ET-18 offset, 4.79" backspacing, 87.10mm hub bore, a 2500 lbs load rating.

Looking for wheels, rims & tires near you in the Atlanta metro? We mount + balance same day at our Marietta tire shop — 1585 Roswell Rd. Serving Marietta, Atlanta, Cobb County, Kennesaw, Smyrna, Sandy Springs, Roswell, Alpharetta, Buckhead + Vinings.
