XD849 GRENADE II — Brushed Milled W/ G-Black Lip
Fits your vehicle
· Bolt —
· BP2 —
· Hub —
Change Vehicle
Year · Make · ModelAdd your vehicle to confirm fitment
Select vehicle
FREESHIPPING
FITMENTGUARANTEED
PRO INSTALLAVAILABLE
Bolt Pattern
Also available in other bolt patterns — pick yours
Front
2
Rear
2
Set total—
Your Size
—
Offset —
BP1 —
BP2 —
Dual-drilled
Hub —
Finish —
MPN —
Currently out of stock
Choose another size, offset, or finish — or call (678) 400-6467.
Per wheel
—
—
Set of 4
—
—
You save per wheel
Call for Quote
This wheel is built to your exact spec — call (678) 400-6467 for an itemized quote. Pricing depends on the size, finish, and build options you choose.
Pay over time
*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender.
Acima
Lease-to-own — no credit needed
You can apply now, or pick this option at checkout — your choice.
Final approval and terms are determined by the lender.
Nearby
0
Arrives in 1–2 Days
0
Arrives in 3–5 Days
0
Quantity
4
Special Order — Built to Order
This wheel is forged to order at the factory. Typical build & ship time is 6–8 weeks. You can check out now to lock in your build slot and pricing — we'll confirm the ETA after your order and keep you updated.
Notify me when available
Drop your email and we'll let you know the moment this XD XD849 GRENADE II — Brushed Milled W/ G-Black Lip is back in stock. Or call 678-400-6467 — we can sometimes source faster.
Directional wheel — set of 4 needs 2 Left + 2 Right.
Checking package availability…
Final package timing will be confirmed.
Call to check availability
Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.
About This Wheel

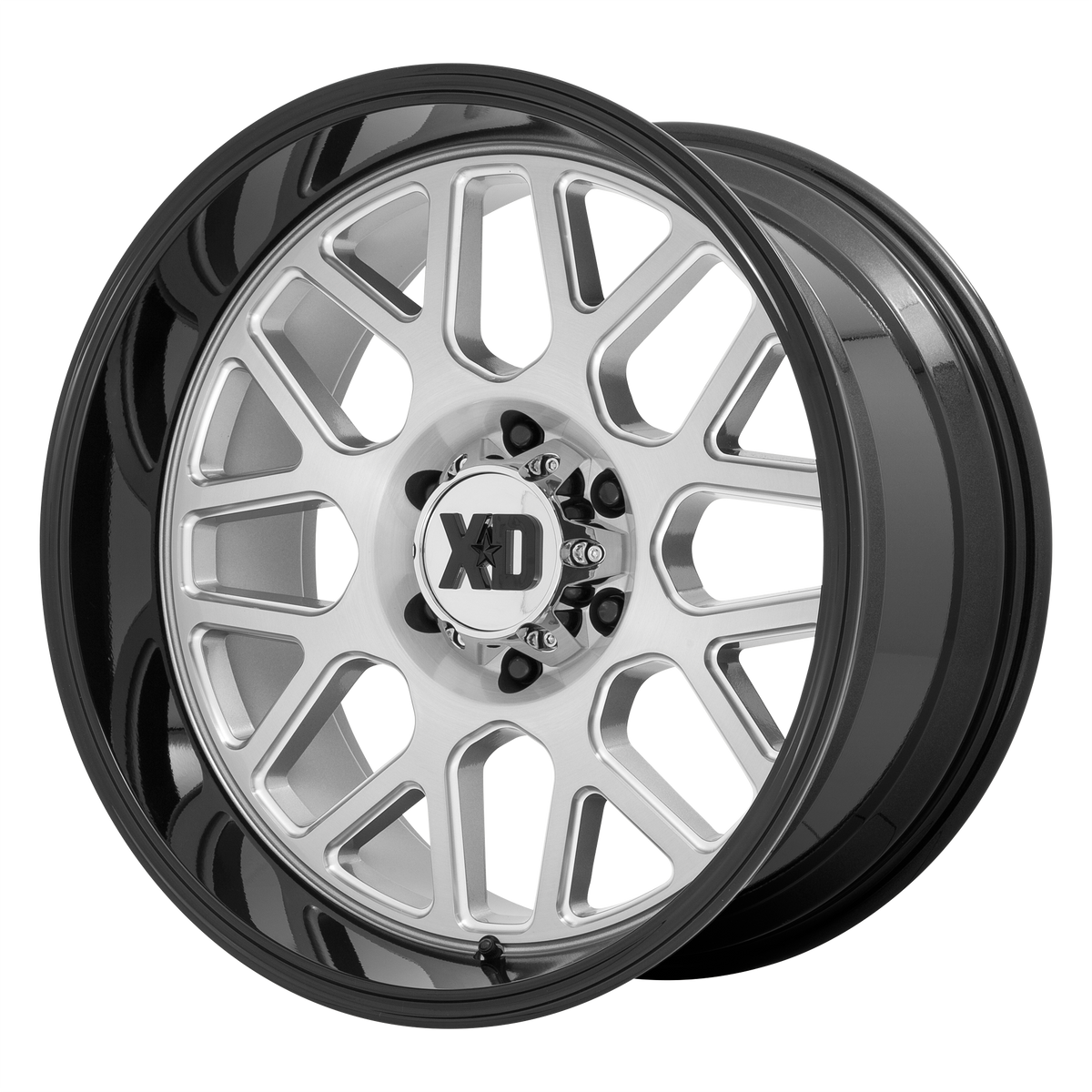

Holding the Grenade II, the first thing you notice is the angular, multi-spoke face — each spoke has a sharp, faceted profile that catches light from multiple planes rather than one flat surface. The brushed milling runs along the spoke faces themselves, creating a directional texture that shifts from bright silver to a softer satin depending on your viewing angle. The G-Black lip frames everything cleanly and adds visual depth without going full gloss, which keeps the wheel from looking overdressed. This finish pairs especially well with white, satin black, and military green body colors. Lifted Jeep Wranglers and Ram 1500s on leveling kits are where I see this wheel do its best work.
Specifications
| Diameter x Width | 20" x 10" |
|---|---|
| Bolt Pattern | 5x127 |
| Offset | ET-18mm |
| Backspacing | 4.79" |
| Hub Bore | 71.50mm |
| Load Rating | 3640 lbs |
| Construction | Cast |
| Material | Aluminum alloy |
| Finish | BRUSHED MILLED W/ G-BLACK LIP |
| Manufacturer Part Number | XD84921050518N |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 5x127 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the BRUSHED MILLED W/ G-BLACK LIP Finish
XD Wheels is a product line under KMC Wheels, a manufacturer that has been running production-level quality control on cast and flow-formed applications for decades. The XD series specifically targets truck and off-road builds, and the Grenade II sits in their street-aggressive catalog — designed for daily drivers that happen to ride lifted rather than dedicated rock crawlers. Fitment data and structural testing back up the specs.
About XD
XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
This wheel is drilled 5x127, which is the standard bolt pattern for Jeep Wrangler JK, JL, and Gladiator, as well as the Ram 1500 Classic. At -18mm offset with a 10-inch width, most owners running a 2-inch or greater lift will clear fenders without modification, but you should verify your specific year and trim against a fitment guide before ordering — backspacing tolerance varies by model.
Do lug nuts come included?
Lug nuts are not included with this wheel, which is standard across nearly all aftermarket wheel purchases. The XD849 uses a standard conical seat, so you'll need tapered lug nuts in the correct thread pitch for your vehicle — typically 14x1.5 for Ram and 1/2-20 for most Jeep applications. We can confirm the right spec when you order.
Fitment specs: the XD XD849 GRENADE II comes in 5x127 bolt pattern, ET-18 offset, 4.79" backspacing, 71.50mm hub bore, a 3640 lbs load rating.
