Finding wheels that fit your vehicle

XD137 FMJ — Black

Fits your vehicle · Bolt — · Hub — Change Vehicle

Year · Make · ModelAdd your vehicle to confirm fitment Select vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Pay over time

*Estimated lease-to-own payment — tap an option for details. Final approval and terms are determined by the lender.

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

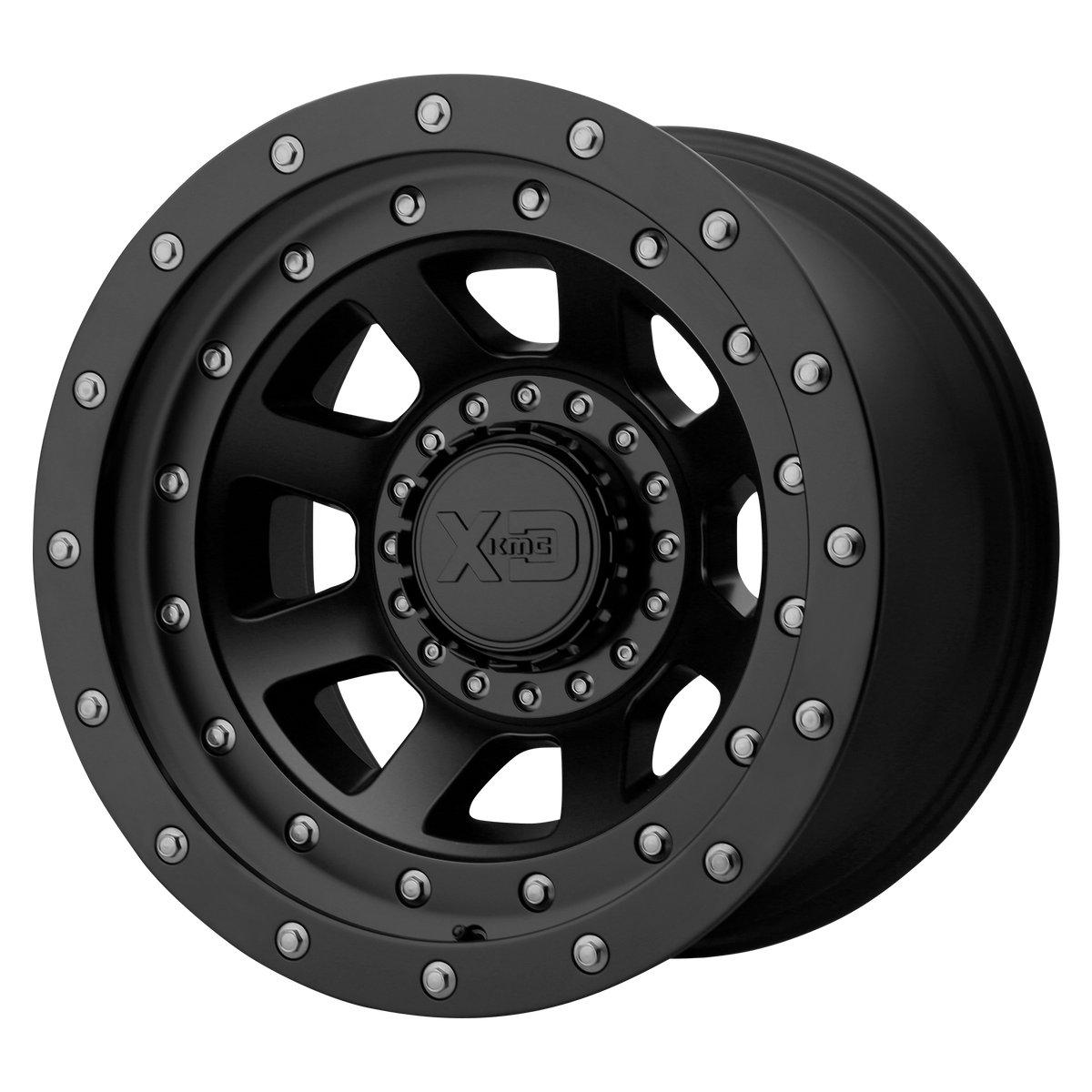

Pick one of these up and the first thing you notice is the weight — it's a cast piece, so it's solid in hand, and that mass is distributed into a multi-spoke face with deep pockets that give it visual depth without going overboard on complexity. The spokes taper toward the barrel, which keeps the face from looking flat or busy. In black, the recessed areas read darker than the spoke faces under direct sun, so you get natural contrast without a two-tone finish. It suits matte-black, white, and charcoal body colors particularly well, and it looks at home on full-size Chevy Silverados, GMC Sierras, Ram 1500s, and 4Runners running a lifted setup.

Specifications

Diameter x Width	20" x 10"
Bolt Pattern	5x139.7 / 5x150
Offset	ET-18mm
Backspacing	4.79"
Hub Bore	110.10mm
Load Rating	2500 lbs
Construction	Cast
Material	Aluminum alloy
Finish	BLACK
Manufacturer Part Number	XD13721086718N

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 5x139.7 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the BLACK Finish

XD Wheels is a brand under the KMC Wheel portfolio with a long track record in the truck and off-road segment. The XD series is designed around aggressive fitments and durable construction for drivers who actually use their trucks off-pavement. They're not the cheapest option on the shelf, but the fitment engineering and finish consistency are reliable enough to earn repeat customers.

About XD

XD produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is drilled in 5x139.7, which is the standard pattern for full-size GM trucks, Ram 1500 (pre-2019 generation), Toyota 4Runner, Tacoma, and several other platforms. That said, you'll want to confirm your specific year, make, and model — hub bore, brake caliper clearance, and suspension lift all factor into whether a -18mm offset works cleanly on your application without rubbing.

Do lug nuts come included?

Lug nuts are not included with the wheel. Most factory lug nuts won't seat correctly in aftermarket wheels because the seat angle is different, so plan on picking up a set of open-end or mag-style lug nuts that match your stud size and the wheel's seat type. We can help you spec the right hardware when you order.

Fitment specs: the XD XD137 FMJ comes in 5x139.7 bolt pattern, ET-18 offset, 4.79" backspacing, 110.10mm hub bore, a 2500 lbs load rating.
