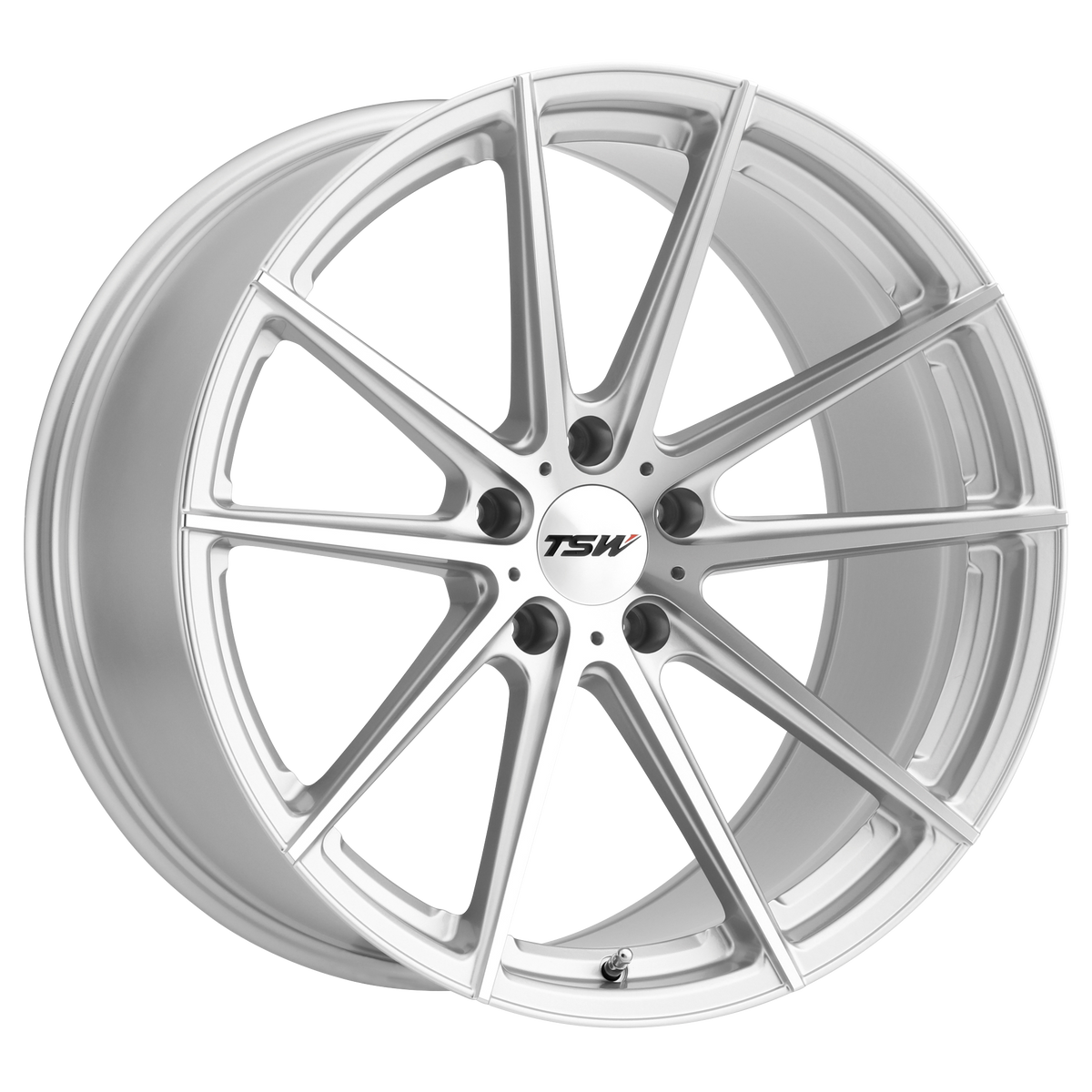

TSW BATHURST 5-Lug Silver w/ Mirror Cut Face Wheels

Back to Results

TSW BATHURST — Silver W/ Mirror Cut Face

Finding wheels that fit your vehicle

Fits your vehicle · Bolt — · Hub — Change Vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Ways to pay

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

Pick up a Bathurst and the first thing you notice is how the spokes taper — they're not uniform slabs. Each spoke narrows toward the barrel, giving the face a sense of depth that flat machined wheels simply don't have. The mirror-cut face catches light at sharp angles and throws it back hard, while the silver base finish settles into shadow on the recessed areas between spokes. That contrast is what makes the wheel read well from a distance. It pairs naturally with white, silver, and gunmetal body colors, though I've seen it look equally strong on black cars where the cut face pops. Wider aggressive fitments on sport sedans and touring coupes are where this wheel consistently earns its keep.

Specifications

Diameter x Width	20" x 10.5"
Bolt Pattern	5x114.3
Offset	ET+25mm
Backspacing	6.73"
Hub Bore	76.10mm
Load Rating	1650 lbs
Construction	Flow-Formed
Material	Aluminum alloy
Finish	SILVER W/ MIRROR CUT FACE
Manufacturer Part Number	2005BAT255114S76

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 5x114.3 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+25mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the SILVER W/ MIRROR CUT FACE Finish

TSW has been producing aftermarket wheels since 1979, and their flow-forming process is a genuine differentiator — it stretches and compresses the barrel under pressure, resulting in a wheel that's measurably stronger and lighter than a standard cast piece. The Bathurst is part of their core lineup, not a limited run, so replacement and fitment support tend to be straightforward. They're a respected mid-to-upper-tier brand with consistent quality control across production runs.

About TSW

TSW produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This specific Bathurst is sized at 20x10.5 with a 25mm offset on a 5x114.3 bolt pattern, which is not a common truck configuration — most half-ton trucks run a 6-lug pattern. If you're working with a sport truck or SUV that happens to run a 5x114.3 bolt pattern, you'll still want to verify your hub bore, brake caliper clearance, and whether your fender clearance accommodates the 10.5-inch width at that offset.

Do lug nuts come included?

Lug nuts are not included with the wheel. TSW wheels typically use a standard conical seat, but you'll want to confirm the correct seat type and thread pitch for your specific vehicle before ordering hardware. We can help you match the right lug nuts when you're ready to purchase.

Fitment specs: the TSW BATHURST comes in 5x114.3 bolt pattern, ET+25 offset, 6.73" backspacing, 76.10mm hub bore, a 1650 lbs load rating.
