About This Wheel

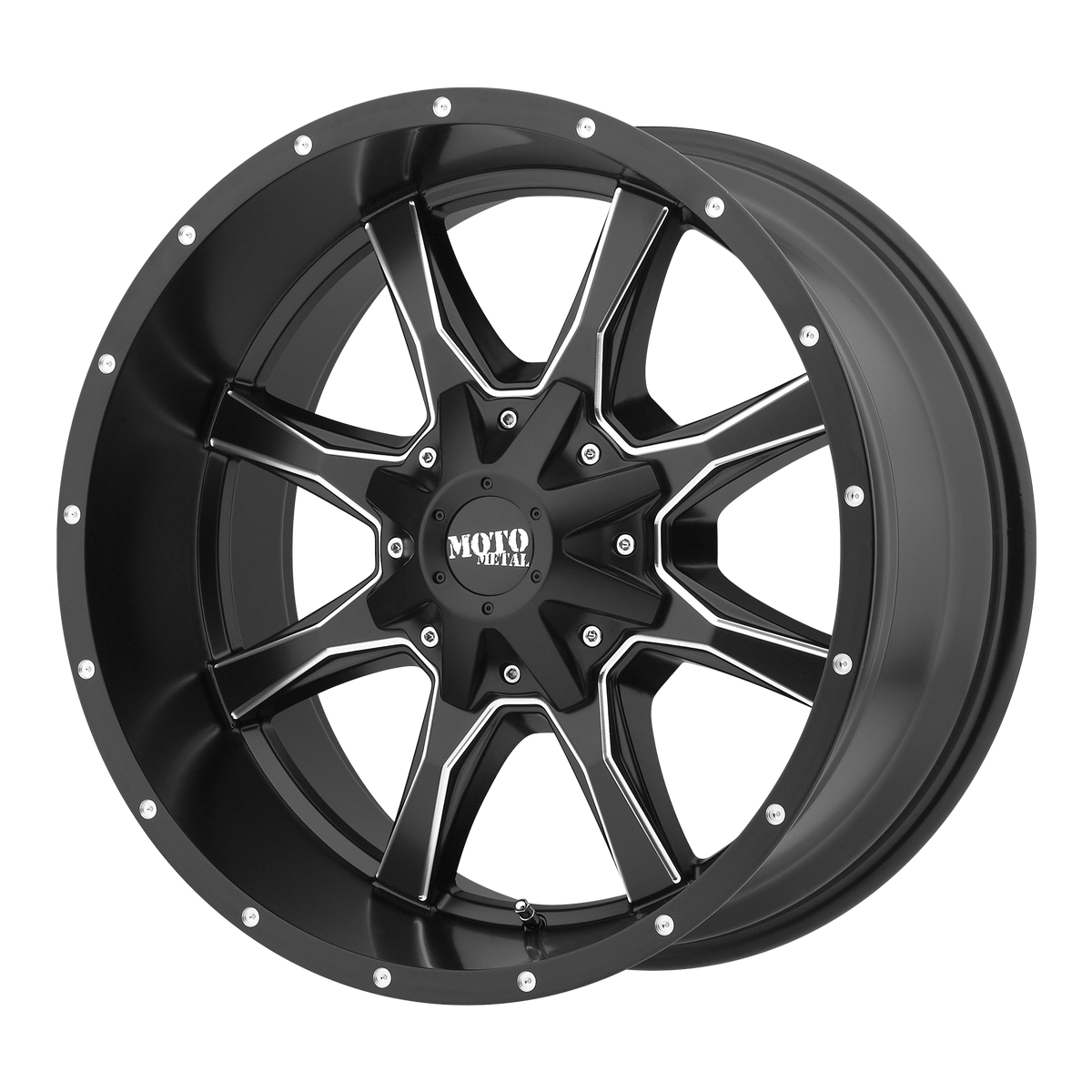

Pick one up and the first thing you notice is how straightforward the face is — a spoke layout that doesn't try to do too much. The milling cuts across the spoke faces at a tight, precise angle, and when light catches those machined edges against the semi gloss black background, you get real contrast without it looking overdone. It's the kind of wheel that works on a blacked-out truck just as well as it does on a white or silver one. The semi gloss sheen sits between a flat and a full gloss, so the overall look reads as purposeful rather than flashy. On lifted F-150s and Expeditions it sits proportionally well at this 20-inch diameter.
Specifications
| Diameter x Width | 20" x 9" |
|---|---|
| Bolt Pattern | 6x135 / 6x139.7 |
| Offset | ET+12mm |
| Backspacing | 5.47" |
| Hub Bore | 106.10mm |
| Load Rating | 2500 lbs |
| Construction | Cast |
| Material | Aluminum alloy |
| Finish | SEMI GLOSS BLACK MILLED |
| Manufacturer Part Number | MO97029067912US |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 6x135 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+12mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the SEMI GLOSS BLACK MILLED Finish
Moto Metal has been in the truck and off-road wheel space long enough to have a real track record. Their wheels show up consistently on working trucks, not just show rigs, which says something about how they hold up. The MO970 is one of their longer-running models — that kind of staying power in a catalog usually means the fitment data is well-sorted and replacement hardware is easy to source.
About Moto Metal
Moto Metal produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
This wheel is drilled 6x135, which is the native bolt pattern for Ford F-150s from 2004 onward, as well as the Ford Expedition and Lincoln Navigator. The 12mm offset is on the positive side, so verify your brake caliper clearance and any leveling or lift kit geometry before ordering — a quick measurement goes a long way.
Do lug nuts come included?
No, lug nuts are not included with the wheel. You'll need to confirm your existing studs are the correct thread pitch and that your lug nuts have a seat type compatible with this wheel's lug seat — most Moto Metal wheels use a standard conical seat. If you're unsure, bring your current lug nuts in and we can cross-reference them.
Fitment specs: the Moto Metal MO970 comes in 6x135 bolt pattern, ET+12 offset, 5.47" backspacing, 106.10mm hub bore, a 2500 lbs load rating.
Looking for wheels, rims & tires near you in the Atlanta metro? We mount + balance same day at our Marietta tire shop — 1585 Roswell Rd. Serving Marietta, Atlanta, Cobb County, Kennesaw, Smyrna, Sandy Springs, Roswell, Alpharetta, Buckhead + Vinings.
