About This Wheel

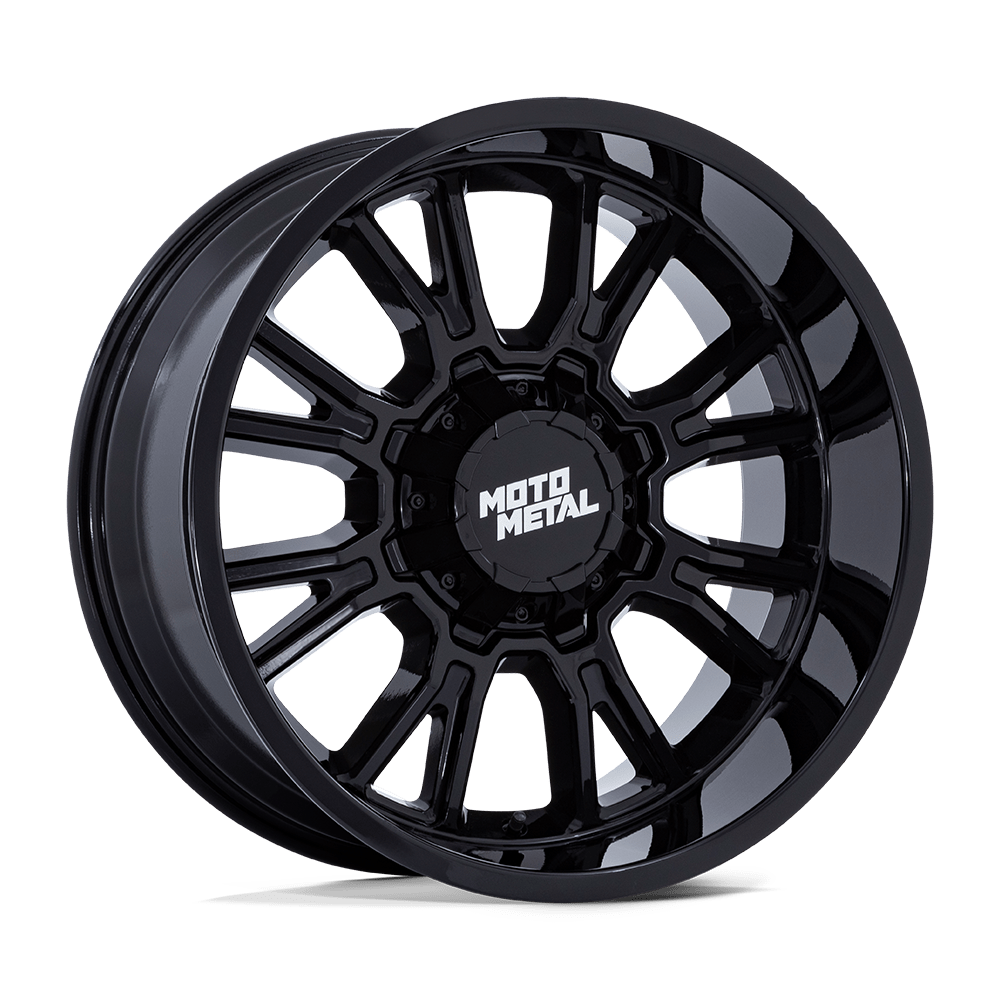

The MO810 Legacy runs a multi-spoke face with deep milled pockets between the spokes — when you hold it, the casting feels dense and the face profile has real depth to it, not that flat stamped look you get on budget wheels. The BLACK finish absorbs light rather than reflecting it, which actually makes the spoke geometry read more clearly from a distance. It pairs well with white, silver, and dark green body colors where the contrast lets the face do the talking. Graphite and charcoal trucks tend to blend a little too closely with this finish for my taste. At 17 inches it fits naturally under lifted half-tons and mid-size trucks running a leveling kit.
Specifications
| Diameter x Width | 17" x 9" |
|---|---|
| Bolt Pattern | 5x127 / 5x139.7 |
| Offset | ET+1mm |
| Backspacing | 5.04" |
| Hub Bore | 78.10mm |
| Load Rating | 2500 lbs |
| Construction | Cast |
| Material | Aluminum alloy |
| Finish | BLACK |
| Manufacturer Part Number | MO810BX17903501 |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 5x127 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+1mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the BLACK Finish
Moto Metal has been building wheels aimed at truck and off-road applications for well over two decades. They sit under the Wheel Pros umbrella, which means consistent quality control and broad fitment engineering. The MO810 Legacy is a cast construction wheel — not a forged piece, but cast done properly with wall thickness and spoke geometry that hold up to real-world use on lifted trucks.
About Moto Metal
Moto Metal produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
The 5x127 bolt pattern covers Jeep Wrangler, Jeep Gladiator, and select Ram 1500 applications, among others. The 1mm offset is very close to centerline, so confirm your backspacing clears your brake caliper and inner suspension components before mounting — a quick measurement at your shop saves headaches later.
Do lug nuts come included?
Lug nuts are not included with this wheel. You will need to verify your vehicle's lug seat type — most factory applications use a conical or bulge acorn seat — and source a set rated for your vehicle's torque specification before installation.
Fitment specs: the Moto Metal MO810 LEGACY comes in 5x127 bolt pattern, ET+1 offset, 5.04" backspacing, 78.10mm hub bore, a 2500 lbs load rating.
