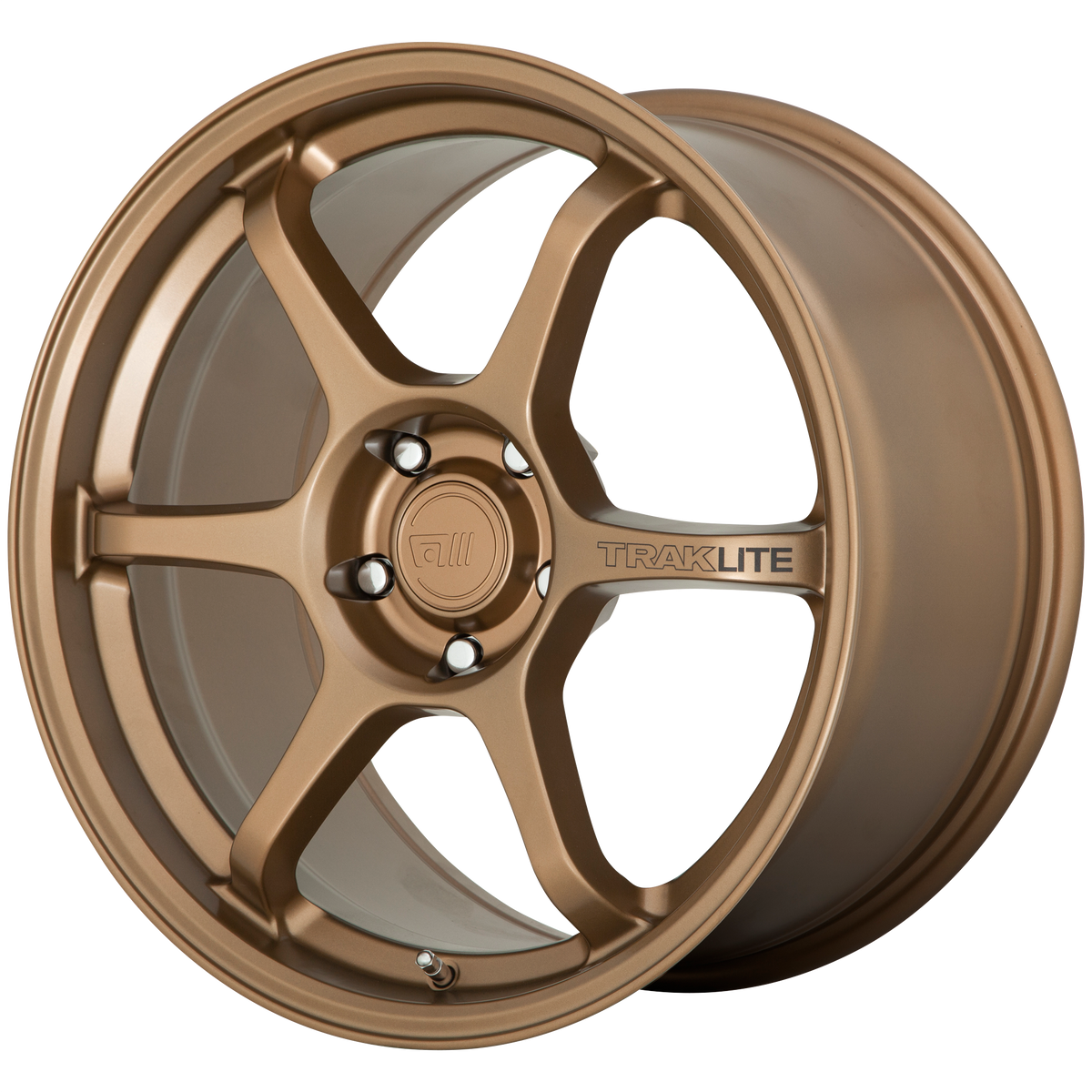

Motegi MR145 TRAKLITE 3.0 5x120 Bronze Wheels

Back to Results

Finding wheels that fit your vehicle

Fits your vehicle · Bolt — · Hub — Change Vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Ways to pay

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

Pick one up and the first thing you notice is how the flow-forming process has thinned the barrel walls without making the wheel feel fragile — there's a rigidity to it that cast wheels this price rarely match. The face runs a multi-spoke layout with moderate depth, so it reads as purposeful rather than busy. In Bronze, the spoke faces catch light differently depending on the angle — warmer in direct sun, closer to a muted gold under overcast skies. That warmth pairs naturally with white, gunmetal gray, and flat black body colors, and it works particularly well on sport sedans and hatchbacks where the wheel sits close to flush in the fender.

Specifications

Diameter x Width	18" x 9.5"
Bolt Pattern	5x120
Offset	ET+45mm
Backspacing	7.02"
Hub Bore	74.10mm
Load Rating	1280 lbs
Construction	Flow-Formed
Material	Aluminum alloy
Finish	BRONZE
Manufacturer Part Number	MR14589552645

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 5x120 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET+45mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the BRONZE Finish

Motegi has been producing wheels for the performance and import market long enough that their manufacturing tolerances are well-documented and consistent. The TRAKLITE line specifically reflects their focus on flow-forming — a process that improves strength-to-weight ratio compared to standard gravity casting. They're not building boutique forged wheels, but at this tier, the construction quality is honest and repeatable.

About Motegi

Motegi produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is built around a 5x120 bolt pattern at a 45mm offset, which is common on performance-oriented cars and crossovers — not typical full-size truck applications. You'll want to confirm your vehicle's bolt pattern, hub bore, and clearance requirements before ordering, since offset and backspacing affect how the wheel sits in the fender.

Do lug nuts come included?

Lug nuts are not included with the wheel. Most vehicles require a specific seat type — conical, ball, or flat — so it's worth confirming what your hub calls for rather than assuming a universal set will work. We can help you match the right hardware when you're ready to order.

Fitment specs: the Motegi MR145 TRAKLITE 3.0 comes in 5x120 bolt pattern, ET+45 offset, 7.02" backspacing, 74.10mm hub bore, a 1280 lbs load rating.

Looking for wheels, rims & tires near you in the Atlanta metro? We mount + balance same day at our Marietta tire shop — 1585 Roswell Rd. Serving Marietta, Atlanta, Cobb County, Kennesaw, Smyrna, Sandy Springs, Roswell, Alpharetta, Buckhead + Vinings.
