About This Wheel

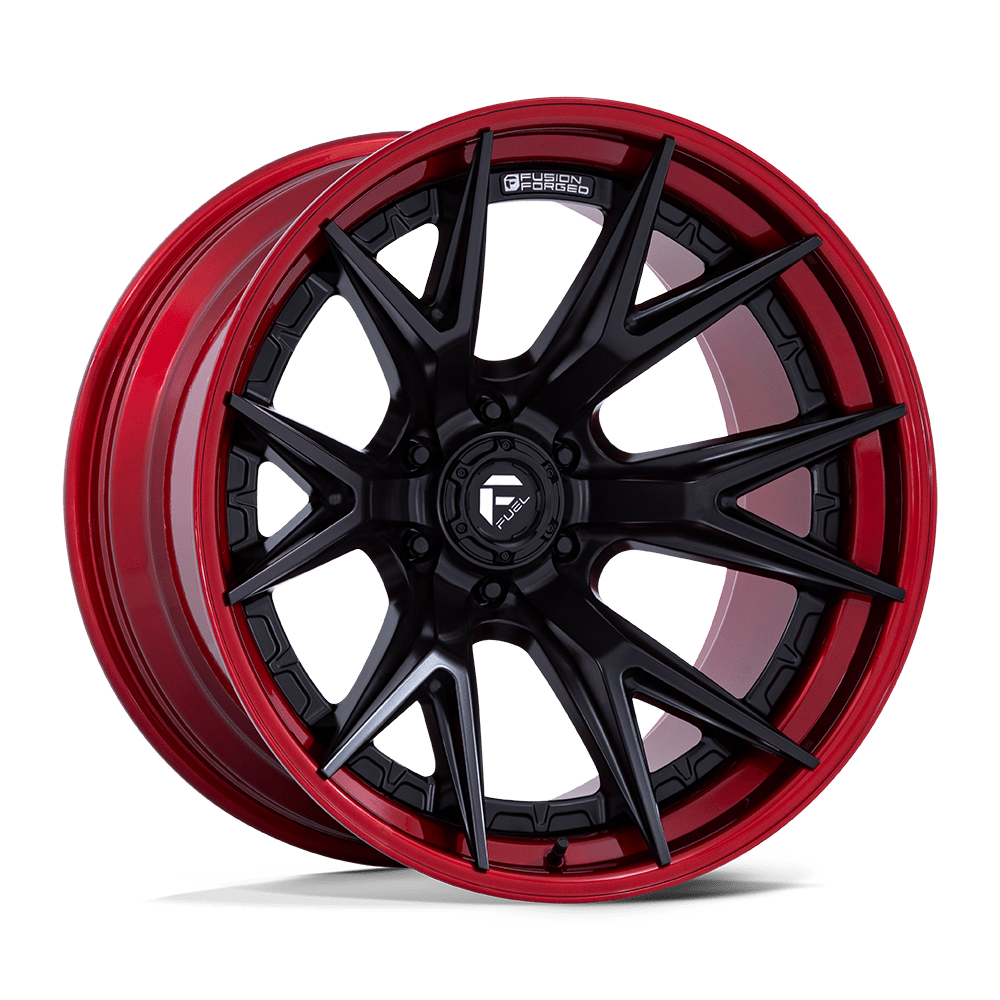

Pick up the FC402 Catalyst and the first thing you notice is how the face is organized — a tight cluster of thick, angular spokes that radiate outward with a slight taper, giving the wheel a layered, three-dimensional quality that flat photos don't fully capture. The negative offset pushes that face well outside the fender plane, so the visual impact is immediate when it's mounted. In Black, the spoke edges hold a subtle contrast against the darker recesses between them, which keeps the design from reading as a flat slab. It works particularly well on blacked-out F-150s, lifted Expeditions, and two-tone gray or white builds where you want the wheel to anchor the look rather than compete with it.
Specifications
| Diameter x Width | 20" x 10" |
|---|---|
| Bolt Pattern | 6x135 |
| Offset | ET-18mm |
| Backspacing | 4.79" |
| Hub Bore | 87.10mm |
| Load Rating | 2650 lbs |
| Construction | Forged |
| Material | Aluminum alloy |
| Finish | BLACK |
| Manufacturer Part Number | FC402MQ20106318N |
Build Your Package
Add Matching Tires
Recommended tires for your — wheels on your vehicle
Loading matching tires from our catalog…
How it works
- 1 Call 678-400-6467 to confirm fitment & availability
- 2 Apply above or choose your financing option at checkout
- 3 Get approved instantly — no delay
Fitment
This wheel runs the 6x135 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-18mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.
About the BLACK Finish
Fuel Off-Road has been a dominant name in the truck and SUV wheel space for well over a decade, and their 1PC forged line represents the upper tier of their catalog. Forged construction means the aluminum billet is pressure-formed rather than cast, which produces a denser grain structure and a better strength-to-weight ratio. Fuel backs their engineering with real-world testing on vehicles that actually see off-road and towing use, not just show floors.
About Fuel 1PC
Fuel 1PC produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.
Installing at Road Runner Wheels & Tires
Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.
Questions We Get
Will this fit my truck?
This wheel is spec'd at 20x10 with a -18mm offset and a 6x135 bolt pattern, which is a common configuration for Ford F-150 and Expedition platforms. That said, a -18 offset pushes the wheel outward significantly, so fender clearance and potential lift requirements depend on your specific year, trim, and any existing suspension modifications — always verify with a fitment check before ordering.
Do lug nuts come included?
Lug nuts are not included with the wheel. Because aftermarket wheels vary in seat angle and shank length, it's important to match your lug nuts specifically to the FC402's seat type — using the wrong hardware is a safety issue, not just a fitment inconvenience. We can help you identify the correct lug nuts when you place your order.
Fitment specs: the Fuel 1PC FC402 CATALYST comes in 6x135 bolt pattern, ET-18 offset, 4.79" backspacing, 87.10mm hub bore, a 2650 lbs load rating.
