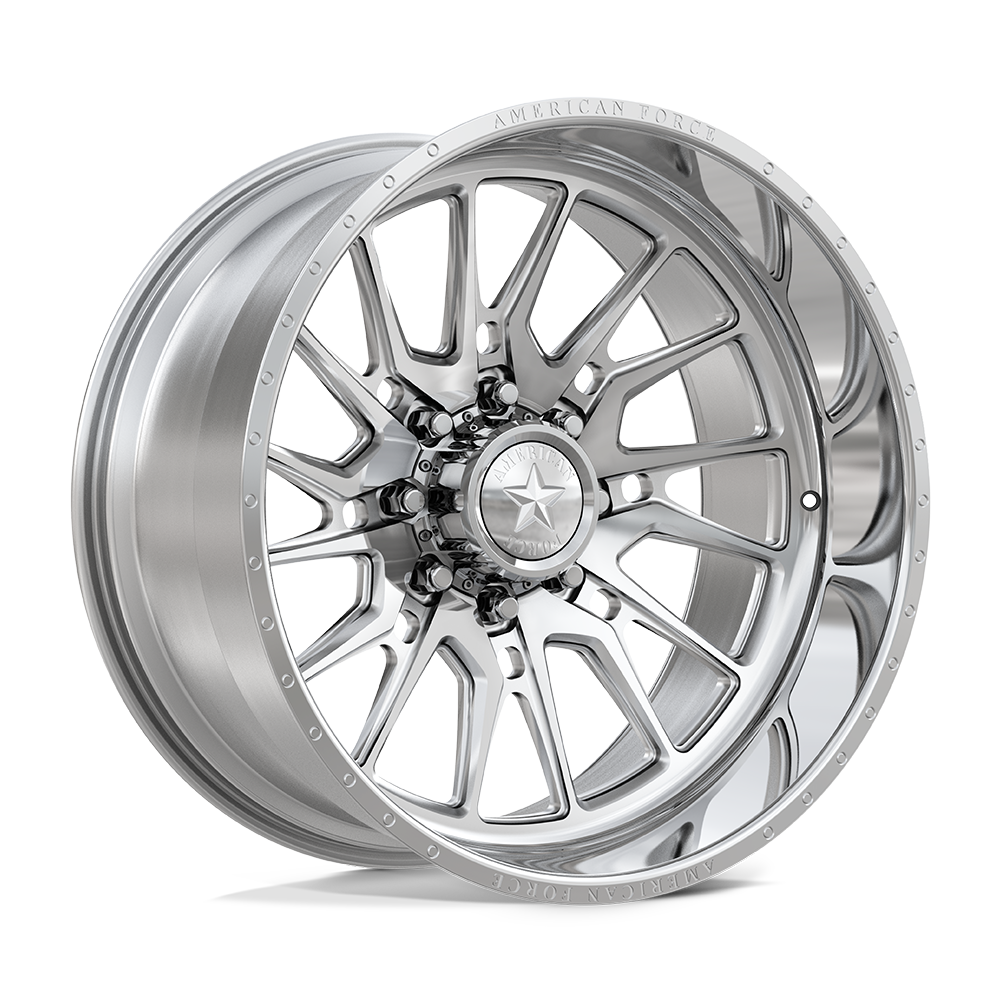

American Force AFW KANE CC 8x170 Polished Wheels

Back to Results

Finding wheels that fit your vehicle

Fits your vehicle · Bolt — · Hub — Change Vehicle

FREESHIPPING

FITMENTGUARANTEED

PRO INSTALLAVAILABLE

Per wheel —

Set of 4 —

Ways to pay

Quantity

Call to check availability

Installed by Road Runner Wheels & Tires — family-owned in Marietta since 2010. Questions? Call (678) 400-6467.

About This Wheel

When you hold a Kane CC, the first thing you notice is how substantial the spokes feel — no thin, stamped appearance here. American Force machined these faces with a concave profile that draws the eye inward toward the center cap, then back out along each spoke. The polished finish catches direct sunlight hard and clean, almost mirror-like, then transitions to softer reflections in shade. That contrast works exceptionally well against white, black, and dark charcoal truck bodies. Silver and champagne paint tones also pair well since the polish picks up warm highlights from those colors. On a lifted Super Duty or Ram HD, the 24-inch diameter with that aggressive negative offset fills the fender with authority rather than sitting flush and anonymous.

Specifications

Diameter x Width	24" x 12"
Bolt Pattern	8x170
Offset	ET-55mm
Backspacing	10.33"
Hub Bore	125.00mm
Load Rating	3500 lbs
Construction	Forged
Material	Aluminum alloy
Finish	POLISHED
Manufacturer Part Number	AFTNCKH53LF25-1-20

Build Your Package

Add Matching Tires

Brand Tire size Sort by

Loading matching tires from our catalog…

How it works

1 Call 678-400-6467 to confirm fitment & availability
2 Apply above or choose your financing option at checkout
3 Get approved instantly — no delay

678-400-6467 · Marietta, GA · Hablamos Español

Fitment

This wheel runs the 8x170 bolt pattern, which covers a range of half-ton trucks and SUVs depending on hub bore and offset. ET-55mm offset is typical for stock-height fitments; leveled and lifted trucks may want different offset/backspacing combinations to clear larger tires. A hub-centric ring is recommended when the wheel hub bore is larger than the vehicle hub.

About the POLISHED Finish

American Force has been building forged aluminum wheels for the custom truck market for over two decades. Their work is centered on billet and forged construction rather than cast, which means tighter grain structure and better strength-to-weight ratios. They are a genuine specialty manufacturer, not a rebadging operation, and the Kane CC reflects that in how it's machined and finished.

About American Force

American Force produces wheels distributed nationally through trusted vendor channels. Catalogs are stocked, MAP-pricing is enforced, and warranty coverage is honored at the manufacturer level.

Installing at Road Runner Wheels & Tires

Mount and balance is same-day in most cases in our shop. We program TPMS sensors on-site and pair wheels with matching tires when needed. Same shop handles lift kits, suspension work, and full builds.

Questions We Get

Will this fit my truck?

This wheel is drilled in 8x170, which is the native bolt pattern for Ford F-250 and F-350 Super Duty trucks. The -55mm offset is on the aggressive side, so confirming your suspension lift height and fender clearance before ordering is worth doing — call or message us with your year, make, model, and lift spec and we can verify fitment directly.

Do lug nuts come included?

Lug nuts are not included with the wheel. American Force wheels typically require a specific shank length and seat type, so using the correct hardware matters both for safety and for protecting the wheel's finish around the lug pocket. We can recommend and supply the right lug nuts when you place your order.

Fitment specs: the American Force AFW KANE CC 24x12 POLISH 8x170 -55mm comes in 8x170 bolt pattern, ET-55 offset, 10.33" backspacing, 125.00mm hub bore, a 3500 lbs load rating.
