7 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

Built for diesel Super Duty owners who need 7 inches of lift, 38-inch tire clearance, and rock-solid driveline geometry. This radius arm kit pairs FOX 2.5 Performance Elite coil-over shocks up front with either a lift block or leaf springs in back — giving you the stance and capability to run serious rubber while keeping factory driveshaft angles dialed in.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

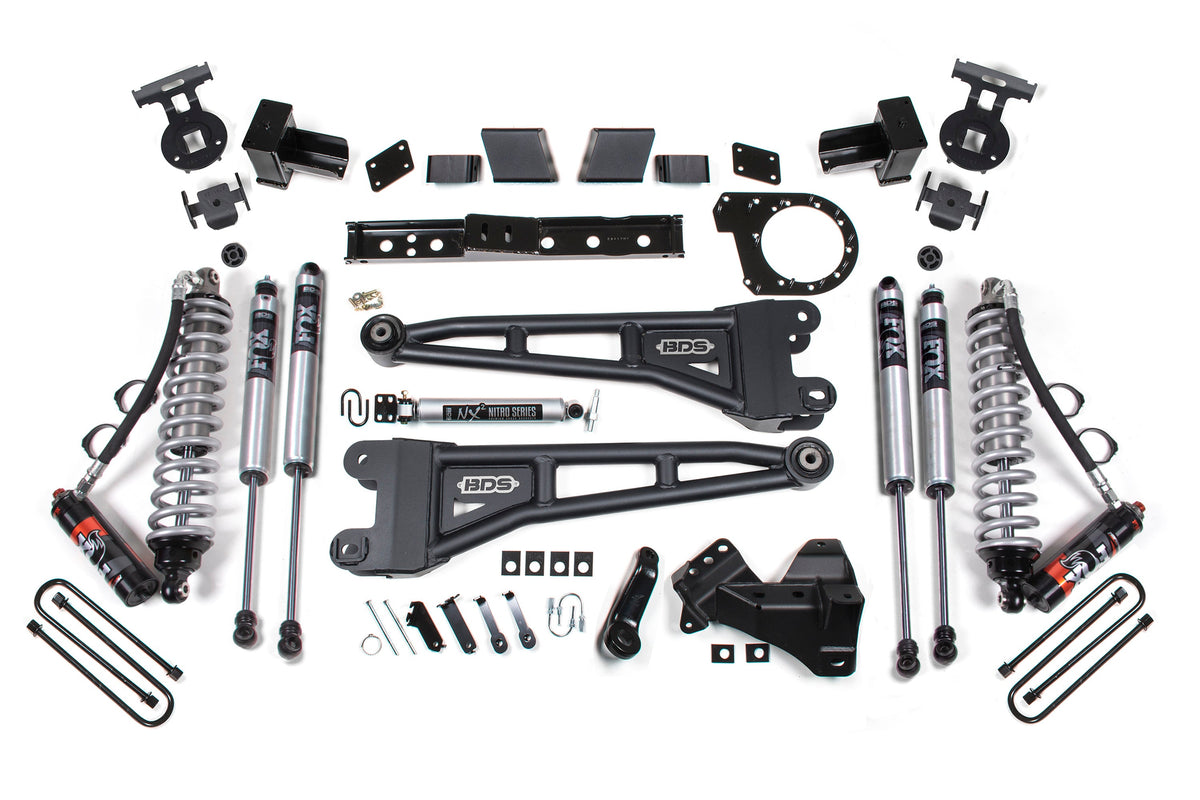

What you get up front

• FOX 2.5 Performance Elite Coil-Over Shocks — 2.5-inch diameter remote-reservoir shocks with DSC adjusters offering 10 low-speed and 12 high-speed compression settings. Race-tuned out of the box for comfort on pavement and capability off-road.
• Heavy-Duty Tubular Radius Arms — Forged steel replacements with OE-style rubber bushings, caster-corrected for this lift height and mounted in factory locations.
• Forged Drop Pitman Arm & Track Bar Bracket — Steering geometry correction to keep your truck tracking true.
• Sway Bar Relocation Kit — Maintains handling balance at the new height.
• Transfer Case Indexing Ring — ARP-studded precision ring that clocks your transfer case to preserve factory front driveshaft angles and operating geometry.
• High-Clearance Transmission Crossmember — Supplied to accommodate the new driveline geometry.
• Brake Line Brackets — Front and rear hardware to protect brake lines through the lift.

Out back

Choose your rear setup: high-strength fabricated lift block with longer u-bolts and matching FOX Performance shocks, or upgrade to leaf springs with the same FOX shock package. Both configurations maintain factory ride quality and durability.

Pick your shocks

• FOX 2.0 Performance Series — Durable, tuned-and-ready monotube shocks at the value tier. Starts at $4937.45 (block) or $5866.35 (leaf springs).
• FOX 2.5 Performance Elite — Premium remote-reservoir shocks with DSC adjusters, 10 and 12 compression levels, and race-proven cooling. Starts at $7669.55 (block) or $8598.45 (leaf springs).

Important notes

• Accommodates tires up to 38 x 13.5 inches.
• Transfer case indexing ring and high-clearance crossmember are included to preserve factory driveshaft compatibility — no aftermarket driveshaft required.
• Front lift: 7 inches. Rear lift: 5–6 inches depending on your configuration choice.
• Fits 2020–2022 Ford F-250 and F-350 Super Duty 4WD diesel trucks (XL, XLT, Lariat, King Ranch, Platinum trims).

Why customers pick this at Road Runner

• BDS warranty backed by our 20-year reputation for expert installation and local support.
• Our techs install these kits every week — they know transfer case indexing, caster correction, and driveline geometry inside out.
• FOX shocks tuned and tested by BDS engineers before we ever turn a wrench.
• Professional install in our shop on most kits keeps you off the lot and on the road.

Ready to build it? Call (678) 400-6467. Hablamos Español.
