7 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

Built for diesel Super Duty owners who need 7 inches of lift without sacrificing driveline geometry or ride quality — this 4-Link kit from BDS gives you the stance and tire clearance for up to 38" rubber while preserving factory front driveshaft angles through precision transfer case indexing. Coil springs up front handle the diesel weight, and you choose your shock tier to match your driving style.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

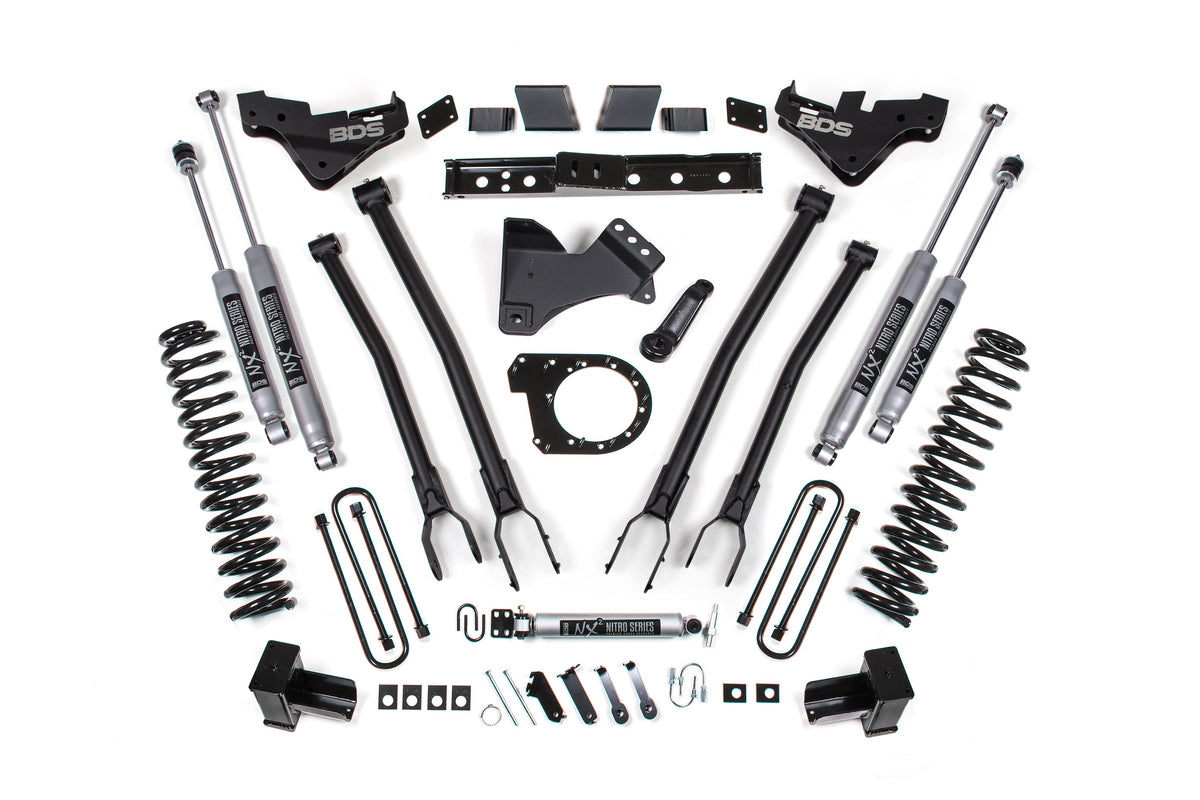

What you get up front

• Pro-Ride Coil Springs — diesel-rated springs tuned for load and ride quality at 7 inches of lift.
• 4-Link Control Arm Conversion — replaces factory stamped radius arms with high-strength ¼-inch steel brackets and HD upper/lower control arms to correct axle geometry, limit caster change, and improve handling.
• Drop Pitman Arm & Track Bar Bracket — forged pitman arm and steering correction bracket maintain factory-like steering geometry at the new height.
• Sway Bar Relocation & Brake Line Brackets — keeps your front suspension balanced and clears all hydraulic lines.
• Transfer Case Indexing Ring — precision-built ring with ARP studs allows the factory front driveshaft to operate at the correct angle; paired with a high-clearance transmission crossmember.

Out back

High-strength fabricated lift block, longer u-bolts, and brake line brackets work together to raise the rear axle while maintaining leaf spring function and brake line routing. Choose your shock tier below.

Pick your shocks

• BDS NX2 Nitro Series — comfortable daily driver damping for on-road and light off-road use.
• FOX 2.0 Performance Series — progressive damping for weekend trails and mixed terrain.
• FOX 2.5 Performance Series HTO — high-flow tuning for faster rebound and aggressive rock crawling.
• FOX 2.5 Performance Elite — fully adjustable, position-sensitive shocks for fine-tuned ride across any condition.

Important notes

• Max tire size: 38 x 12.5 — larger tires will contact suspension or body components.
• Front lift height: 7 inches (coil spring); rear lift height varies — 5 inches with block kit, 6 inches with leaf spring option.
• Driveline indexing required: Transfer case must be indexed and a new high-clearance transmission crossmember must be installed to allow safe operation of the factory front driveshaft at this height.
• Fits Super Duty 4WD models 2023–2026 — SRW and King Ranch, Lariat, Limited, Platinum, and XL/XLT trim levels.
• Two rear kit options: Fabricated lift block or leaf spring conversion — choose based on your payload and ride preference.

Why customers pick this at Road Runner

• BDS 4-Link geometry correction keeps caster angles stable, protecting tire wear and handling even at this height.
• Diesel-specific spring rates engineered for your truck's weight — no guesswork, no sagging.
• Transfer case indexing kit included — we handle the driveline work so your factory driveshaft stays safe and long-lived.
• Shock choice lets you dial in comfort or trail performance without buying a whole new suspension.
• Backed by BDS warranty, installed by techs who do these lifts weekly — not a one-off job.
• Professional install in our shop keeps you rolling fast.

Ready to build it? Call (678) 400-6467. Hablamos Español.
