6 Inch Lift Kit | FOX 2.5 Performance Elite Coilover | Ram 1500 (25-26) 4WD

Built for RAM 1500 owners who want serious ground clearance and trail capability — this 6-inch coilover lift kit from BDS pairs FOX Performance Elite shocks up front with progressive-rate rear springs to handle 37-inch tires and rough terrain without sacrificing on-road composure. Corrected geometry keeps your truck planted and predictable whether you're cruising pavement or attacking rocks.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

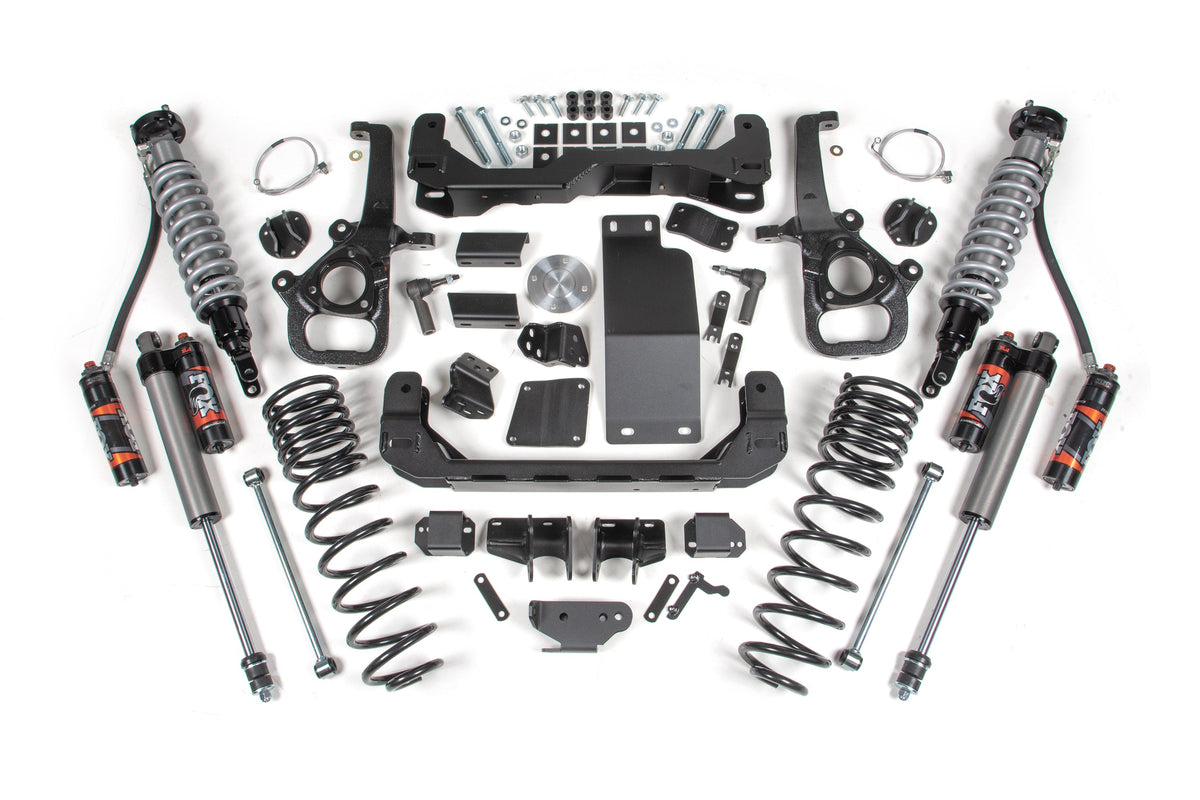

What you get up front

• FOX 2.5 Performance Elite Coilover Shocks — 2.5-inch bore with remote reservoir, DSC adjusters (10 low-speed, 12 high-speed compression levels), and race-proven internals tuned for both daily driving and off-road abuse.
• CNC-Machined Steering Knuckles — ductile iron construction with corrected caster geometry for improved handling and ESC system compatibility at the new 6-inch ride height.
• Heavy-Duty Crossmembers — 1/4-inch thick laser-cut steel with integrated skid plate system for maximum ground clearance and underbody protection.
• Differential Relocation Brackets — multipiece design keeps driveline geometry intact and protects critical components on rough terrain.
• Complete Hardware — stainless steel braided brake lines, replacement tie rod ends, CV spacers, sway bar drops, and bump stop extensions all included.

Out back

Progressive-rate Pro-Ride coil springs deliver 5 inches of rear lift paired with upper control arm relocation brackets and a track bar relocation bracket to correct pinion angle and axle positioning at the new height. Bump stop extensions and sway bar links round out the package, with FOX 2.0 IFP gas shocks for damping performance and reliability.

Important notes

• Maximum tire size: 37 x 12.5 inches.
• Fits 2025–2026 RAM 1500 4WD trucks — all cab and bed configurations including Big Horn, Express, Laramie, Laramie Sport, Limited, Limited Longhorn, Lone Star, Sport, Tradesman, Tungsten, and Warlock.
• Compatible with mild-hybrid and EV-gas powertrains (MHEV).
• Front lift: 6 inches; rear lift: 5 inches (total vehicle lift 6–7.5 inches depending on load).
• ESC/stability control system recalibration may be required — ask our team when you schedule.

Why customers pick this at Road Runner

• BDS suspension backed locally — our techs install these kits weekly and know every bolt.
• FOX Performance Elite shocks tuned out of the box for abuse — no guesswork, just bolt-on capability.
• Geometry corrected at height — you get better steering feel and on-road manners, not just lift.
• Comprehensive protection — integrated skid plates, relocation brackets, and heavy-duty hardware mean your truck is ready for rocks and roots.
• Professional install in our shop — get lifted and rolling without waiting around.

Ready to build it? Call (678) 400-6467. Hablamos Español.
