5 Inch Lift Kit w/ 4-Link | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

Built for diesel Super Duty owners who demand max payload with premium ride quality — this 5-inch lift kit pairs BDS's 4-link conversion with FOX 2.5 Performance Elite coil-overs to deliver corrected geometry, stability, and clearance for up to 37" tires. Front coil-over conversion replaces the factory setup; rear uses a fabricated block with matching FOX shocks.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

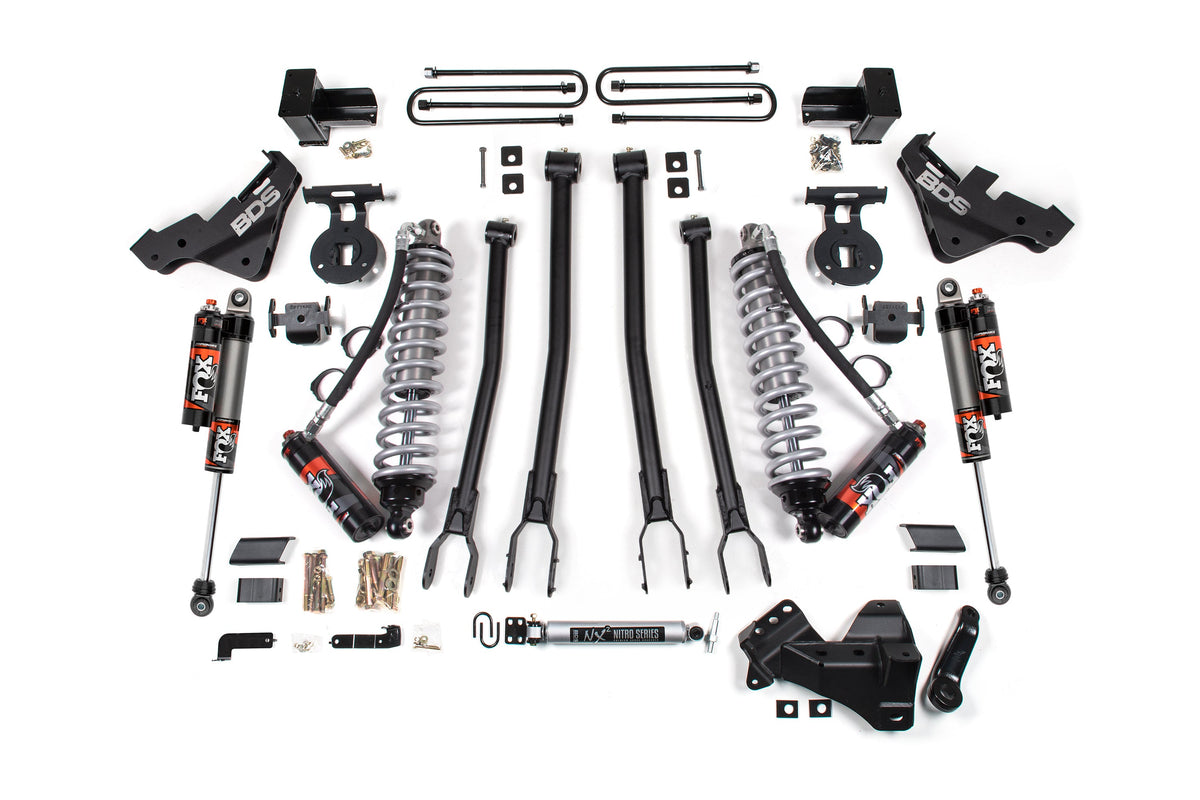

What you get up front

• FOX 2.5 Performance Elite coil-overs — diesel-tuned with DSC adjusters (10 low-speed, 12 high-speed compression settings), remote reservoir, and black anodized aluminum body for heat rejection during aggressive terrain work.
• 4-link conversion kit — replaces stamped steel radius arms with high-strength ¼-inch steel brackets and HD upper/lower control arms, correcting axle positioning and limiting caster change throughout travel for predictable handling.
• Steering correction — forged drop pitman arm and heavy-duty track bar drop bracket minimize steering angle and keep geometry in phase as suspension travels, recentering the front axle without bind.
• Sway bar relocation & brake line brackets — repositioned for clearance and safety with the added height.

Out back

High-strength fabricated lift block (3" or 4" options), longer u-bolts, brake line brackets, and a matching set of FOX Performance shocks to round out the package with consistent damping front-to-rear.

Pick your shocks

• FOX 2.5 Performance Series — proven coil-over performance at a lower price point, tuned and ready to install.
• FOX 2.5 Performance Elite — remote reservoir, DSC adjusters, and premium cooling for owners who live in the rough stuff and want dial-in versatility.

Important notes

• This kit is designed for 2023–2026 Ford F-250/F-350 Super Duty 4WD diesel models.
• Maximum tire clearance is 37 x 12.5 — do not exceed without additional trimming.
• Rear lift height varies: 3" block or 4" block options depending on variant selected.
• Front lift height is 5"; rear options range 3"–4" depending on kit configuration.
• 4-link conversion corrects suspension geometry and limits caster change — this is the primary handling improvement of the system.

Why customers pick this at Road Runner

• BDS 4-link geometry correction is backed by a local dealer who installs these weekly — you get expert tuning, not guesswork.
• FOX coil-over conversion replaces the factory independent front suspension with ride-tuned performance that still works on-road.
• Diesel-specific calibration: BDS engineered this kit around Super Duty weight and torque delivery.
• Forged steering components and heavy-duty brackets mean no bind, no clunk, no surprises after 50k miles.
• Professional install in our shop on most trucks — we don't make you wait.

Ready to build it? Call (678) 400-6467. Hablamos Español.
