5 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (23-26) 4WD | Diesel

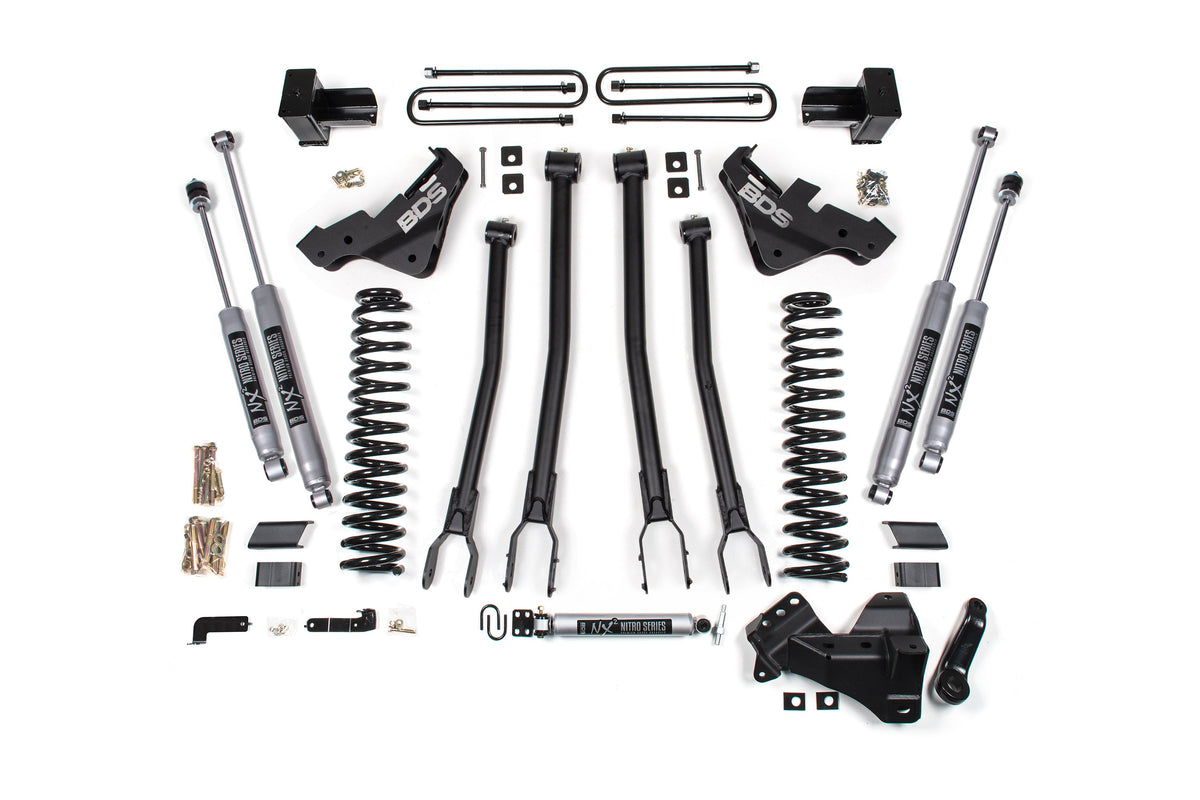

Built for diesel Super Duty owners who want 5 inches of height, up to 37" tire clearance, and geometry that stays dialed in. This 4-link conversion kit from BDS swaps your factory radius arms for control arms that correct caster and axle position, keeping your truck planted through full suspension travel. Diesel-specific Pro-Ride coil springs up front, fabricated lift blocks out back, and your choice of shock tiers — from daily-comfort Nitro to track-tuned FOX Performance Elite.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

What you get up front

• Pro-Ride Coil Springs — Diesel-specific, full-length springs engineered for the weight and dynamics of a turbocharged engine, delivering the correct 5-inch lift with smooth, predictable ride on and off-road.
• 4-Link Control Arms with Conversion Brackets — Bolt-on ¼-inch steel brackets mount heavy-duty upper and lower arms, correcting axle geometry and limiting caster change throughout suspension travel for improved handling and stability.
• Forged Drop Pitman Arm & Track Bar Bracket — Minimizes steering angle and keeps front-end components in phase as the suspension cycles, recentering the axle and preserving steering response after the lift.
• Sway Bar Relocation — Maintains lateral stability and geometry integrity across the wider stance.
• Brake Line Brackets — Precision-placed to prevent line stress and noise through suspension articulation.

Out back

High-strength fabricated lift blocks, longer u-bolts rated for diesel torque, and brake line brackets keep the rear in harmony with the front. Pair them with your shock choice — Nitro for everyday comfort or FOX for aggressive trail duty.

Pick your shocks

• BDS NX2 Nitro Series — Comfortable daily driver shocks with nitrogen charging for consistent damping. Great all-rounder if you split your time between highway and light trail work.
• FOX 2.0 Performance Series — Mid-tier tuning with responsive compression and rebound. Sharper handling than Nitro, smoother than the high-end FOX units.
• FOX 2.5 Performance Series HTO — High-temperature operation with track-proven damping curves. Built for trucks that see regular abuse and need shock performance to match.
• FOX 2.5 Performance Elite — Top-tier Fox shocks with advanced damping technology, ideal for owners chasing the absolute best handling and comfort across all conditions.

Important notes

• Kit is engineered for 4WD diesel F250/F350 Super Duty 2023–2026 only. Verify your truck's configuration (gas engines, 2WD, older model years) before ordering.
• Accommodates up to 37" tires — verify backspacing and offset with your wheel choice to avoid suspension or body contact.
• 4-link conversion requires removal of factory radius arms; this is a significant geometry change and is permanent.
• Select either block kit (with or without overload capacity) or leaf-spring rear configuration based on your load needs — these are mutually exclusive options.

Why customers pick this at Road Runner

• Locally backed BDS warranty — We're an authorized dealer. Any issue, we handle it in-house.
• Geometry done right the first time — Our techs install these weekly. The 4-link conversion is fiddly; you want experienced hands.
• Mount and balance available on most builds — We keep common configurations in stock and can often have you rolling the next morning.
• Diesel expertise — We understand the weight, torque, and ride expectations of the Super Duty platform.
• Shock choice made easy — We ride these trucks. We'll help you pick the right damping tier for your duty cycle.

Ready to build it? Call (678) 400-6467. Hablamos Español.
