5 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (20-22) 4WD | Gas

Built for Super Duty owners who need 5 inches of clearance and a truck that handles like it was engineered for it — this 5-inch lift kit with 4-link conversion gives your 2020–2022 gas F-250 or F-350 the stance, geometry correction, and tire capacity (up to 37") you want. BDS Suspension's gasoline-specific Pro-Ride coil springs pair with a 4-link front end to preserve caster geometry and improve handling throughout the suspension travel.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

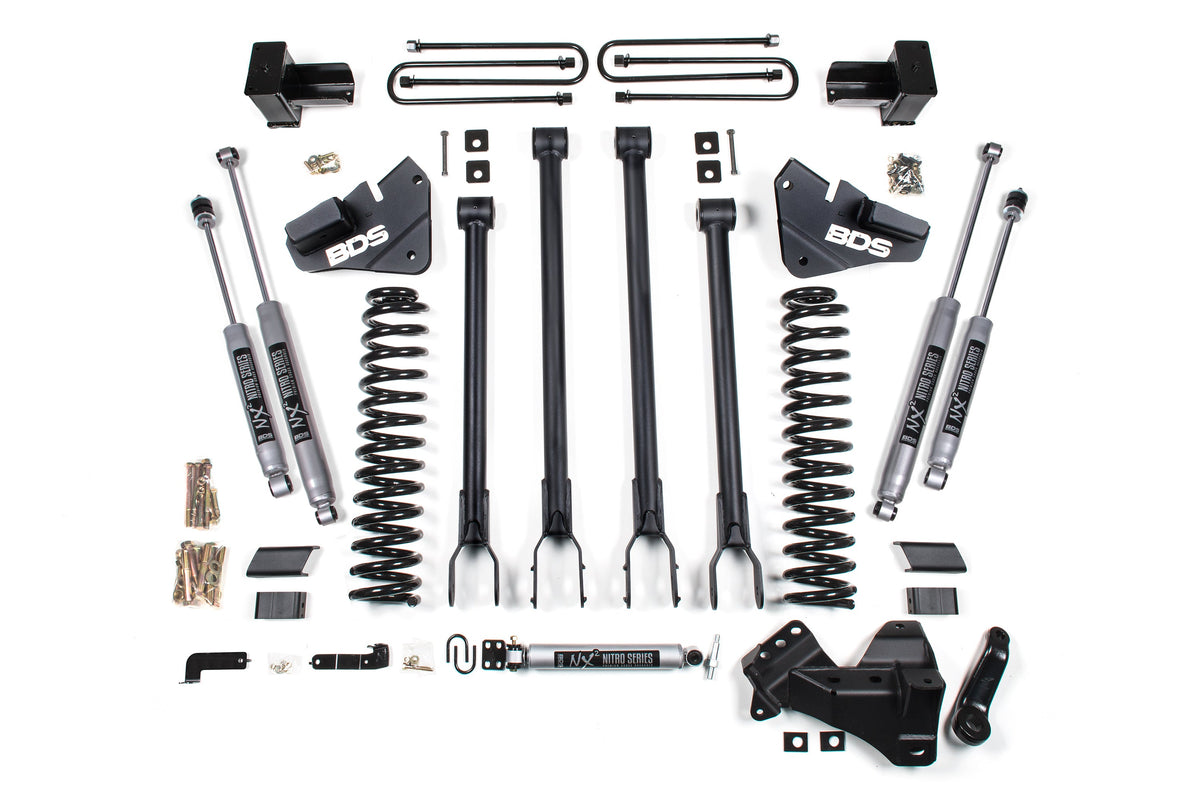

What you get up front

• Pro-Ride Coil Springs — Full-length, gasoline-spec springs engineered for your engine weight and lift height, delivering a smooth, predictable ride across terrain.
• 4-Link Control Arms with Brackets — High-strength ¼-inch steel conversion brackets let you swap factory stamped radius arms for heavy-duty upper and lower control arms, correcting axle position and limiting caster drift as you compress.
• Forged Drop Pitman Arm & Track Bar Bracket — Steering geometry stays optimized after the lift; the drop pitman minimizes steering angle while the track bar bracket keeps both components in phase through suspension travel.
• Sway Bar Relocation, Brake Line Brackets — Everything clears and functions properly at full lift height.

Out back

A high-strength fabricated lift block raises the rear 4–5 inches, paired with longer u-bolts and brake line brackets to keep stopping power clean. You'll choose rear shocks to match your front option below.

Pick your shocks

• BDS NX2 Nitro Series — Nitrogen-charged comfort shocks tuned for daily driving. OEM-like ride, proven reliability. Starts at $2113.55 (4" block) or $3077.65 (leaf springs).
• FOX 2.0 Performance Series — Tuned for lifted trucks, better body control on uneven roads. Single adjustable damping. $2713.55 (4" block) or $3677.65 (leaf springs).
• FOX 2.5 Performance Elite — Dual adjustable (low-speed and high-speed circuits), piggyback reservoir, best-in-class handling and compliance. $5445.65 (4" block) or $6409.75 (leaf springs).

Important notes

• Tire clearance: This kit supports up to 37" tires. Verify backspacing and offset with your wheel choice to avoid rubbing at full articulation.
• Driveline: No modifications required for stock-height driveshafts on standard-wheelbase F-250/F-350.
• Fitment: Designed for 2020–2022 model years, 4WD, gas engine Super Duty only. Not compatible with diesel or air suspension optioned trucks.
• Factory options: Verify your truck's option codes before ordering if equipped with air suspension, electronic locking differentials, or integrated tow packages.

Why customers pick this at Road Runner

• Installed by techs who hang these kits every week — nothing surprises us, and we catch fitment quirks before you roll out.
• BDS warranty backed locally; if a part fails, we handle the claim and get you rolling fast.
• Caster correction is built in — your truck steers straight and tracks true out of the shop, not three months later.
• We stock shocks in all three tiers, so you pick the right one for your budget and use — not what's in a warehouse 500 miles away.

Ready to build it? Call (678) 400-6467. Hablamos Español.
