4 Inch Lift Kit w/ Radius Arm | Ram 2500 w/ Rear Air Ride (14-18) 4WD | Gas

Built for Ram 2500 owners who want a commanding stance without sacrificing ride quality — this 4-inch radius arm lift kit lifts your 2014–2018 gas-powered 2500 with rear air ride while preserving the truck's geometry and handling. You get up to 35" tire clearance, caster correction, and a full suite of components engineered to work together from day one.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

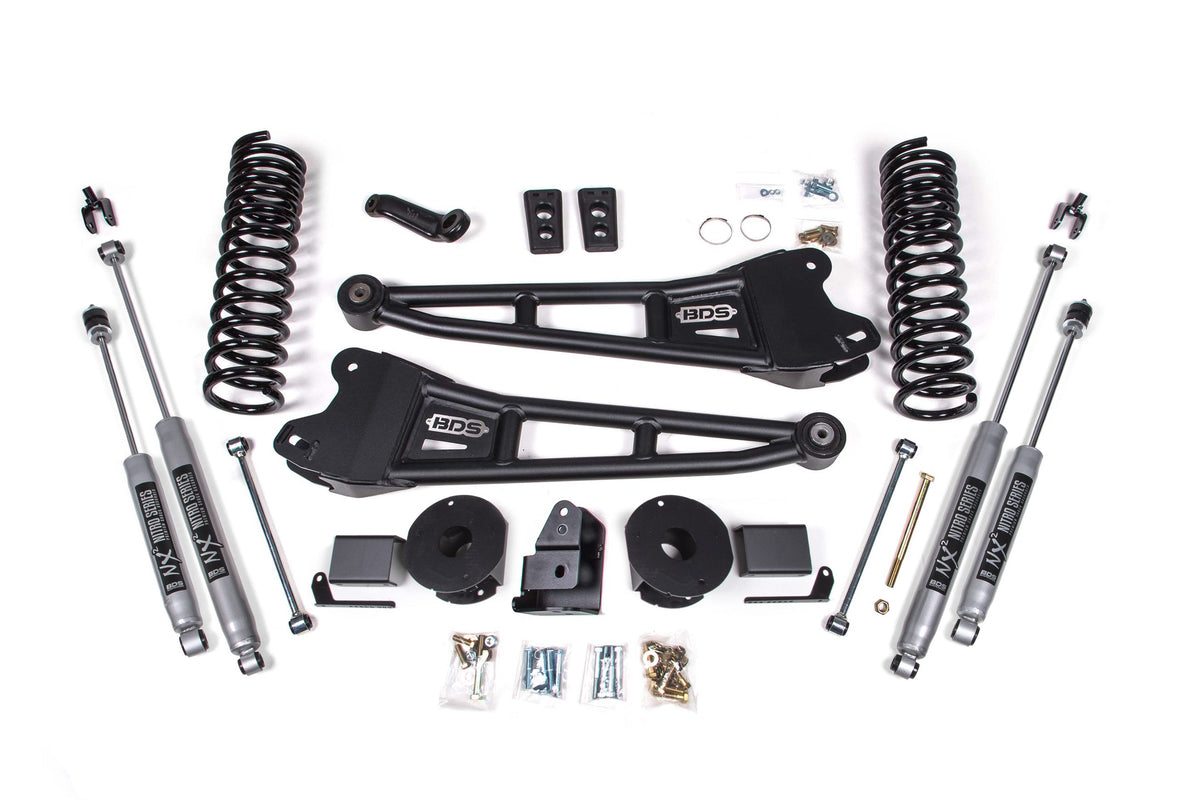

What you get up front

• Pro-Ride coil springs — full-length, gas-specific progressive rate springs engineered with high-tensile steel and properly sized wire to deliver the 4-inch lift without premature coil bind.
• HD radius arms — high-strength tubular arms that replace factory stamped steel, mount in the factory location, and include caster adjustment for geometry correction across the lift height range.
• Drop pitman arm & track bar bracket — forged pitman arm and heavy-duty track bar drop bracket work in tandem to recenter the front axle and minimize steering angle.
• Sway bar relocation, brake line brackets — all ancillaries repositioned to suit the new ride height.

Out back

Heavy-duty air bag spacers lift the rear 2.5 inches, paired with a track bar relocation bracket that keeps the axle centered through suspension travel. New air ride leveling sensor brackets reposition your factory ride-height sensors so the air suspension performs just like stock and maintains full range of motion. Bump stop extensions, sway bar links, and a matching set of shocks round out the package.

Pick your shocks

• BDS NX2 Nitro Series — nitrogen-charged shocks tuned for smooth, predictable ride across terrain with the lift geometry already dialed in.
• FOX 2.0 Performance Series — premium damping for drivers who want sharper response and higher-speed capability without sacrificing daily-driver comfort.

Important notes

• Maximum tire size is 35 x 12.5 — larger tires may rub or cause clearance issues.
• This kit is engineered for 2014–2018 Ram 2500 gas engines with factory rear air ride suspension. It is not compatible with mechanical rear springs or diesel models.
• Air ride leveling sensor brackets are supplied and must be installed to allow the factory air suspension to function at the new ride height.

Why customers pick this at Road Runner

• Caster correction built in — no guesswork, geometry is optimized the day you drive off the lot.
• BDS warranty backed locally — we stand behind every installation and have the expertise to service any issue.
• Our technicians install these kits weekly — no learning curve, no shortcuts.
• All-in-one package — radius arms, springs, shocks, and brackets arrive pre-matched so nothing is left to chance.
• Air ride integration — we handle the sensor relocation so your truck's leveling system works like it should at the new height.

Ready to build it? Call (678) 400-6467. Hablamos Español.
