3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 Rebel (25-26) 4WD

Built for Ram 1500 Rebel owners who want 35-inch tire clearance without sacrificing on-road composure. This 3-inch coil-over lift kit pairs FOX 2.5 Performance Elite shocks up front with progressive-rate Pro-Ride springs and FOX 2.0 IFP shocks in the rear, correcting caster and pinion angle so your truck handles as well on asphalt as it does in the rocks. High-clearance crossmembers, multipiece differential brackets, and heavy-duty skid plate protection round out a comprehensive suspension package built for both trail abuse and daily driving.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

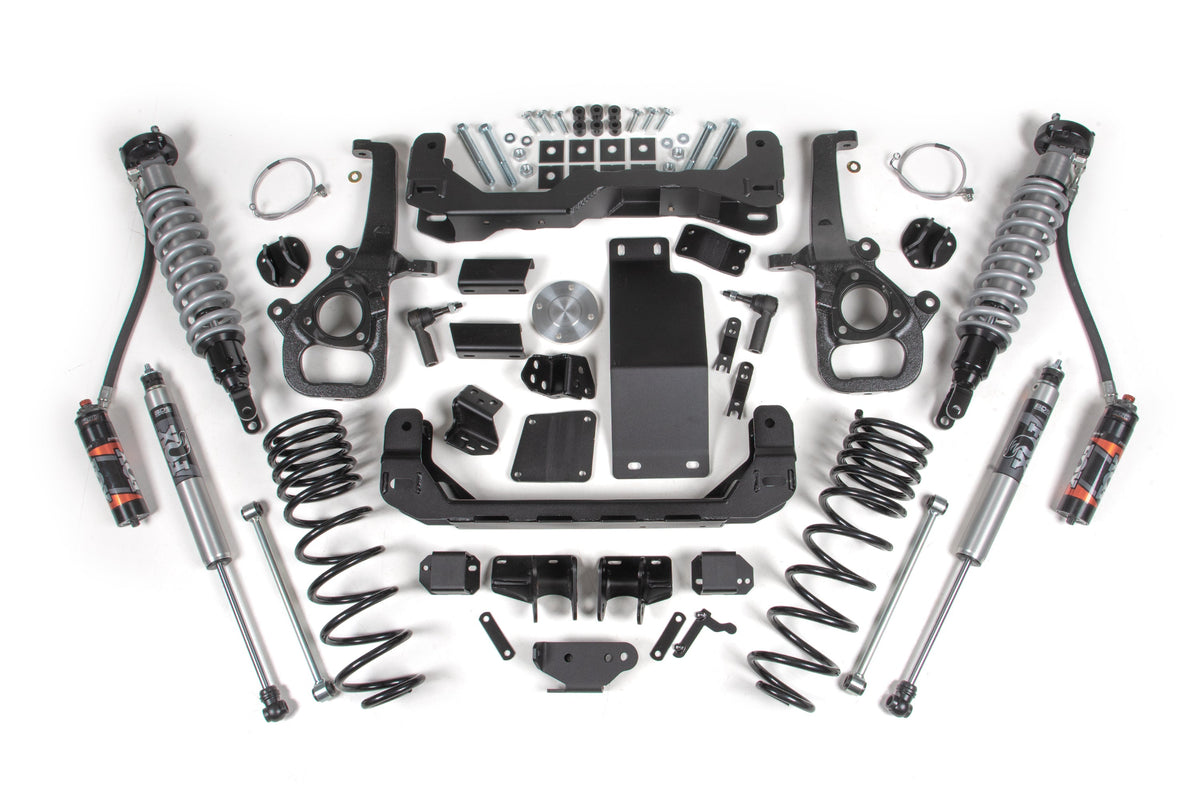

What you get up front

• FOX 2.5 Performance Elite Coil-Over Shocks — 2.5-inch diameter shocks with remote reservoir, DSC adjusters (10 low-speed and 12 high-speed compression settings), and race-proven internals tuned out of the box for rough terrain and highway driving.
• 1/4-inch Steel Crossmembers — High-clearance, laser-cut for perfect fitment; paired with front skid plate system to create a rigid subframe while protecting differentials and underbody from trail hazards.
• CNC-Machined Ductile Iron Steering Knuckles — Corrected geometry at the new ride height; compatible with electronic stability control (ESC).
• Multipiece Differential Relocation Brackets — Maintains driveline geometry and protects transfer case and differentials.
• Steering & Brake Components — Replacement tie rod ends, sway bar drops, stainless steel braided brake lines, and CV spacers complete the front package.

Out back

Progressive-rate Pro-Ride coil springs deliver smooth compliance on-road and load-carrying capability off-road. Rear upper control arm relocation brackets and track bar relocation bracket correct pinion angle and axle positioning. FOX 2.0 IFP (Internal Floating Piston) gas shocks in the rear offer improved damping response. Bump stop extensions and sway bar links round out a rear suspension designed to match the front's geometry correction and durability.

Pick your shocks

• FOX 2.0 Performance Series — Proven IFP dampers with solid off-road capability; included as the rear shock option on all kits. Available at $4,745.55.
• FOX 2.5 Performance Elite — Premium remote-reservoir shocks front and rear with DSC adjusters for fine-tuned compression tuning. Maximum on-road refinement paired with extreme trail performance. Upgrade to $5,705.60.

Important notes

• Maximum tire size: 35 x 12.5. Larger tires will contact the body or suspension components.
• Kit is designed for 2025–2026 Ram 1500 Rebel 4WD only. Not compatible with models equipped with factory air suspension, RamBox, or other suspension-dependent options.
• Bump stop extensions are supplied and required for correct suspension travel and to prevent frame contact.
• Brake lines are supplied to maintain proper routing and safety; installation must follow BDS specifications.

Why customers pick this at Road Runner

• Geometry correction built in — caster and pinion angle handled by design, so your truck steers and tracks true at the new height.
• BDS warranty backed locally by Road Runner technicians who install and service these kits every week.
• Professional install the same day — no surprises, no comebacks; we've done hundreds of BDS suspensions.
• FOX Performance Elite shocks are race-proven and tunable; the DSC adjusters let you dial in comfort or aggression without tools.
• Complete package — skid plates, brake lines, tie rods, and all hardware ship together; nothing left to guess.

Ready to build it? Call (678) 400-6467. Hablamos Español.
