3-4.5 Inch Lift Suspension Package - KOH Edition | Ford Bronco (21-26)

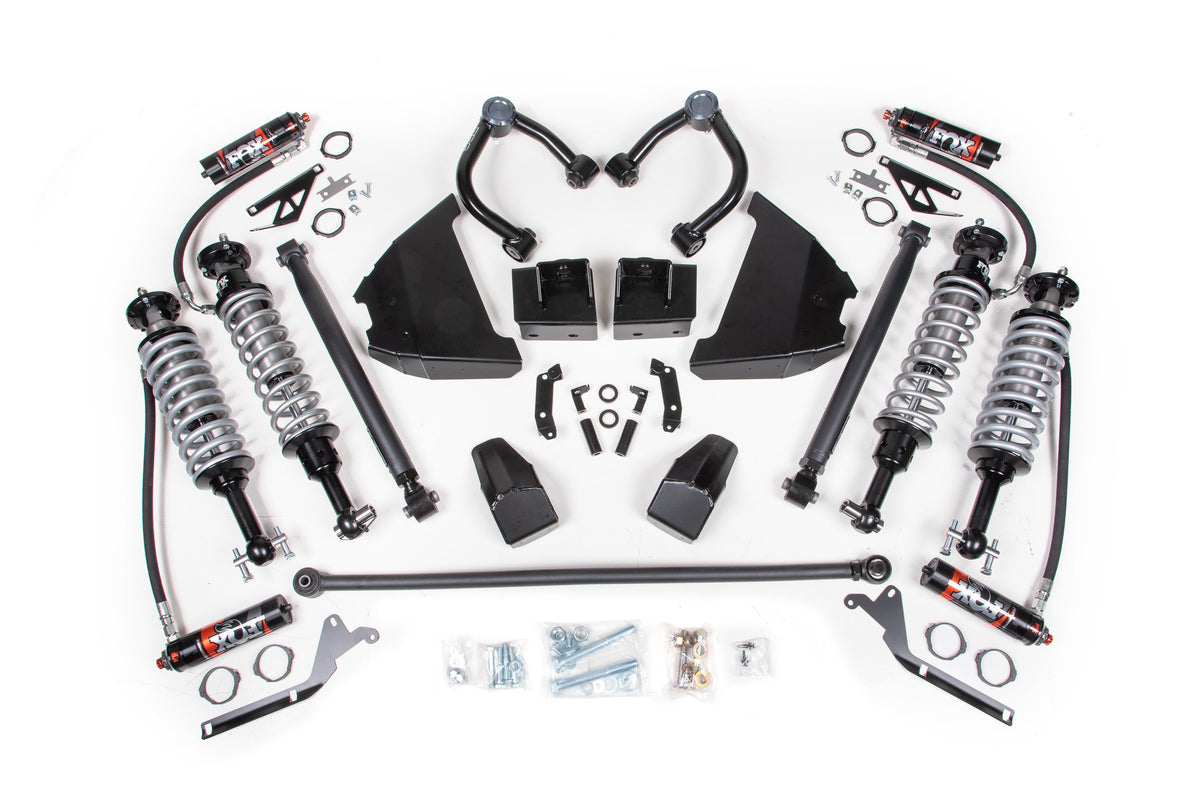

Built for Bronco owners who want race-proven suspension that handles King of Hammers terrain without compromise — the BDS KOH Edition lift kit pairs FOX 2.5 Performance Elite coil-over shocks front and rear with heavy-duty tubular control arms, full skid protection, and geometry correction to handle up to 37" tires while preserving driveline alignment.

Installed and serviced at Road Runner Wheels & Tires. Most kits go in the same day. Call (678) 400-6467 to schedule.

What you get up front

• FOX 2.5 Performance Elite Remote Reservoir Coil-Over Shocks — Race-tuned 2.5-inch diameter shocks with DSC dual-speed compression adjusters (10 low-speed, 12 high-speed levels) and black anodized aluminum reservoirs for extended cooling during hard use.
• Heavy-Duty Tubular Upper Control Arms — 1.5" OD x 0.120-wall construction with indexed uniballs for caster correction, full camber adjustment, and greaseable ball joints for durability and smooth operation.
• Steering Tie Rod Sleeves — Increase OE tie rod diameter or accommodate aftermarket rods to maintain steering geometry under load.
• Max Tire Clearance Kit — Dedicated components to fit up to 37" tires without trimming or rubbing.
• Front Lower Control Arm Skid Plates — 3/16" steel protection for stock lower arms, strut mounts, and CV shafts.

Out back

FOX 2.5 Performance Elite Coil-Over Shocks mirror the front setup with remote reservoirs and DSC adjusters for consistent on-road and off-road performance. Rear Lower Tubular Control Arms — formed from heavy-wall tubing and engineered for max flex — feature OE-style rubber bushings at the axle for noise isolation and forged frame mounts available with either stock bushings or flex ends (up to 30-degree misalignment for greater articulation). Adjustable Rear Track Bar keeps everything aligned under suspension travel. Rear Shock Skid Plates with integrated roost guard provide 3/16" steel protection to the lower shock, mount, and surrounding components.

Important notes

• Max tire clearance is 37 x 12.5. Tire sizing outside this window may cause rubbing or fitment issues.
• Heavy-duty upper control arms with indexed uniballs are designed to correct caster and camber geometry; professional wheel alignment is performed in-house after installation.
• Rear lower control arms available with OE-style rubber bushings (standard, quiet operation) or flex ends (enhanced articulation to 30 degrees) — confirm your choice at purchase.
• FOX DSC adjusters offer 10 separate low-speed and 12 high-speed compression settings — tuning is tool-free, but familiarity with shock tuning is recommended for optimal performance.

Why customers pick this at Road Runner

• BDS suspension installed and serviced locally by techs who dial in these Bronco kits every week.
• Professional wheel alignment included in-house after lift install — geometry is corrected and verified before you leave.
• FOX Performance Elite shocks deliver race-proven tuning right out of the box; DSC adjusters let you fine-tune on the fly without tools.
• Heavy-duty tubular control arms and 3/16" steel skid protection give you confidence on rocky terrain.
• Full BDS warranty backed locally — if anything goes wrong, we stand behind it.

Ready to build it? Call (678) 400-6467. Hablamos Español.
